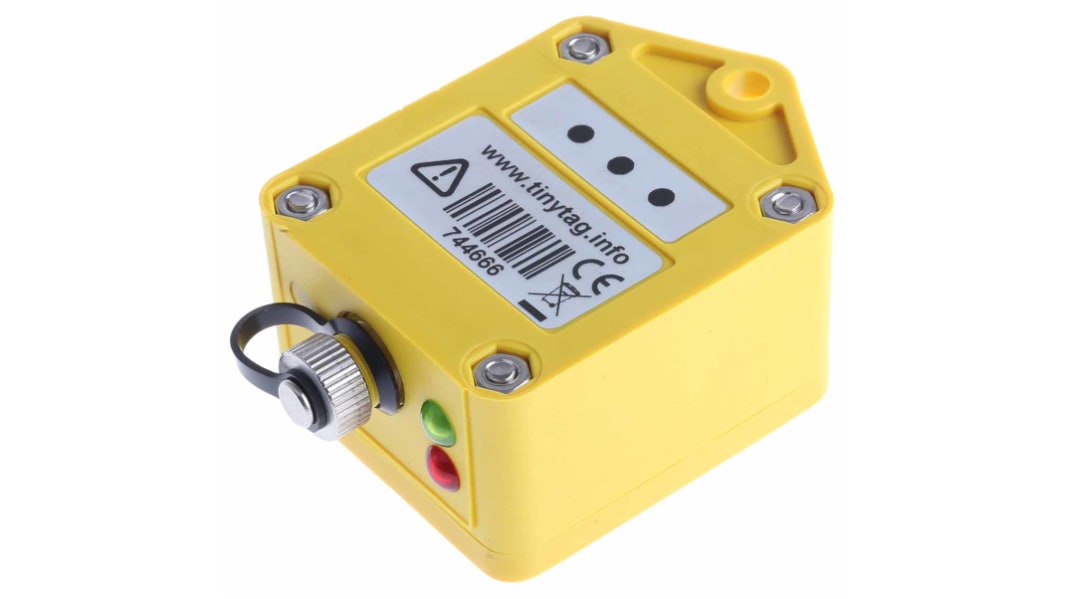

Gemini Plus 2 TGP 4017 Temperature Data Logger, Serial, USB
- RS Stock No.:
- 509-6949
- Mfr. Part No.:
- TGP-4017
- Brand:
- Gemini
Currently unavailable
Sorry, we don't know when this will be back in stock.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
$138.56
(exc. GST)
$152.42
(inc. GST)
- RS Stock No.:
- 509-6949
- Mfr. Part No.:
- TGP-4017
- Brand:
- Gemini
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Gemini | |
| Product Type | Data Logger | |
| Model Number | Plus 2 TGP 4017 | |
| Accuracy | ±0.6 °C | |
| Measurement Parameters | Temperature | |
| Number of Channels | 1 | |
| Interface Type | Serial, USB | |
| Data Logger Type | Temperature | |
| Power Source | Battery | |
| IP Rating | IP68 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 51mm | |
| Hazardous Area Certification | No | |
| Length | 80mm | |
| Standards/Approvals | CE | |
| Height | 34mm | |
| Resolution | 0.01 °C | |
| Battery Life | 1year | |
| Number of Readings per Channel | 32000 | |
| Maximum Measurement | 85 °C | |
| Battery Type | AA | |
| Alarm | Yes | |
| Select all | ||
|---|---|---|
Brand Gemini | ||
Product Type Data Logger | ||
Model Number Plus 2 TGP 4017 | ||
Accuracy ±0.6 °C | ||
Measurement Parameters Temperature | ||
Number of Channels 1 | ||
Interface Type Serial, USB | ||
Data Logger Type Temperature | ||
Power Source Battery | ||
IP Rating IP68 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 51mm | ||
Hazardous Area Certification No | ||
Length 80mm | ||
Standards/Approvals CE | ||
Height 34mm | ||
Resolution 0.01 °C | ||
Battery Life 1year | ||
Number of Readings per Channel 32000 | ||
Maximum Measurement 85 °C | ||
Battery Type AA | ||
Alarm Yes | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
Tinytag Plus 2
Designed for harsh locations where most loggers would be damaged. The Tinytag Plus 2 range is ideal for external environmental monitoring due to the waterproof casing.
Single and dual channel temperature and humidity recorders
32000 readings
User-programmable intervals from 1s to 10 days
Delayed and triggered start options
3 stop options – stop when full, wrap around and stop after n readings
Dust- and water-proof
Replaceable battery supplied
Use with Tinytag Explorer
2 alarms
Trigger Start-Stop
PC Download cable is available separately (stock no.219-721)
