- RS Stock No.:
- 195-3158
- Mfr. Part No.:
- 34946A
- Brand:
- Keysight Technologies
Stocked by manufacturer – available for delivery 04/06/2024
Added
Price (ex. GST) Each
$2,096.00
(exc. GST)
$2,305.60
(inc. GST)
Units | Per unit |
1 + | $2,096.00 |
- RS Stock No.:
- 195-3158
- Mfr. Part No.:
- 34946A
- Brand:
- Keysight Technologies
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details

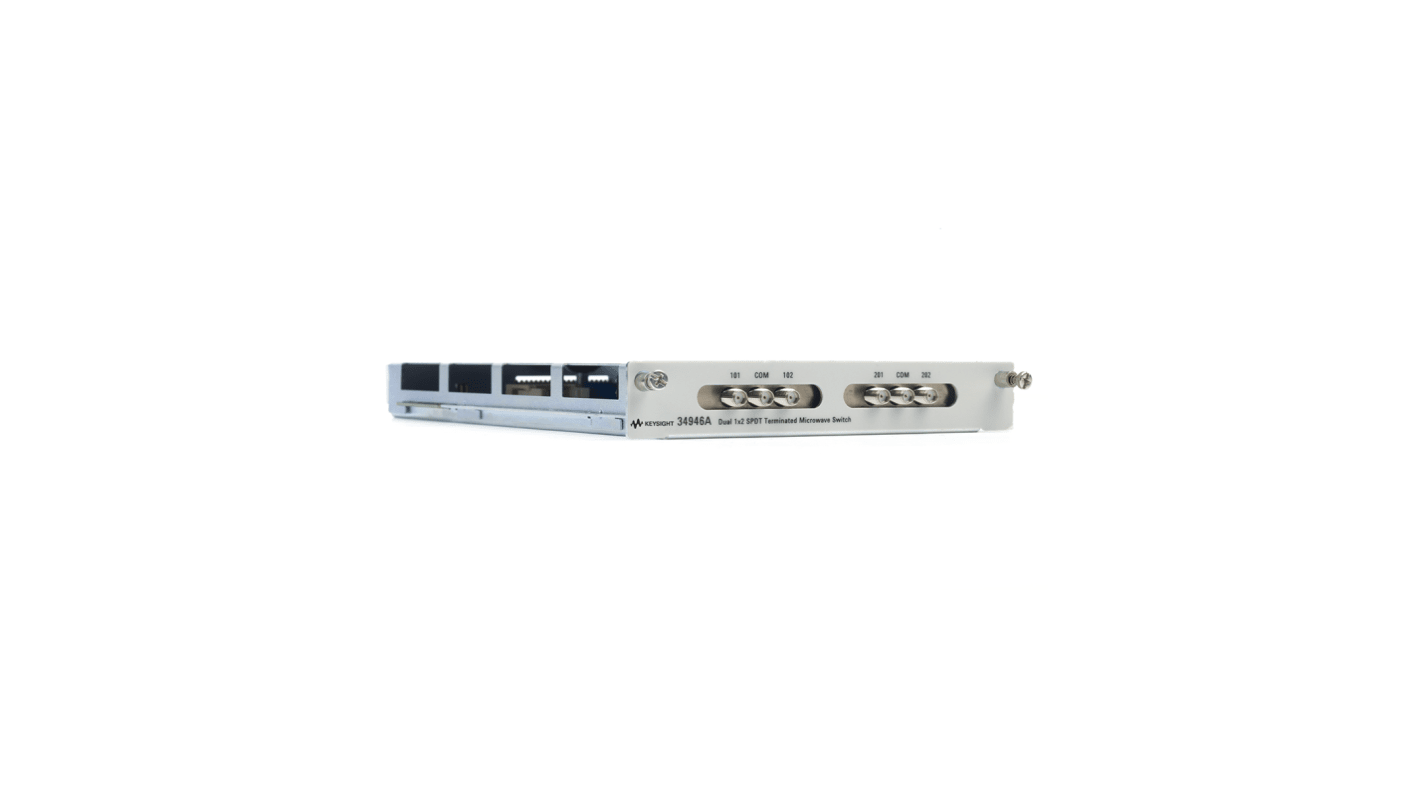

The Keysight 34946A microwave switch for the 34980A Multifunction Switch/Measure Unit offers bi-directional switching for test signals from DC to 26.5 GHz. These switches provide excellent insertion loss, isolation, and VSWR specification. The microwave switches are configured as two independent 1x2 (SPDT) terminated switches on a single module. For general-purpose microwave switching applications, the module can be used to switch separate signal sources for a multi-band receiver/transmitter testing application.
Two SPDT terminated switches
4 GHz , 20 GHz or 26.6 GHz options
High isolation, low VSWR
Up to 50W switching
SMA connectors
External switch mounting option
4 GHz , 20 GHz or 26.6 GHz options
High isolation, low VSWR
Up to 50W switching
SMA connectors
External switch mounting option
Specifications
Attribute | Value |
---|---|
Accessory Type | SPDT Terminated Microwave Switch Module |
For Use With | 34980A Data Acquisition System |
