Nuvotem Talema AQ Series Current Transformer 20 A 1000:1 300 V 9.5 mm Bore
- RS Stock No.:
- 230-4781
- Mfr. Part No.:
- AQ-1020
- Brand:
- Nuvotem Talema

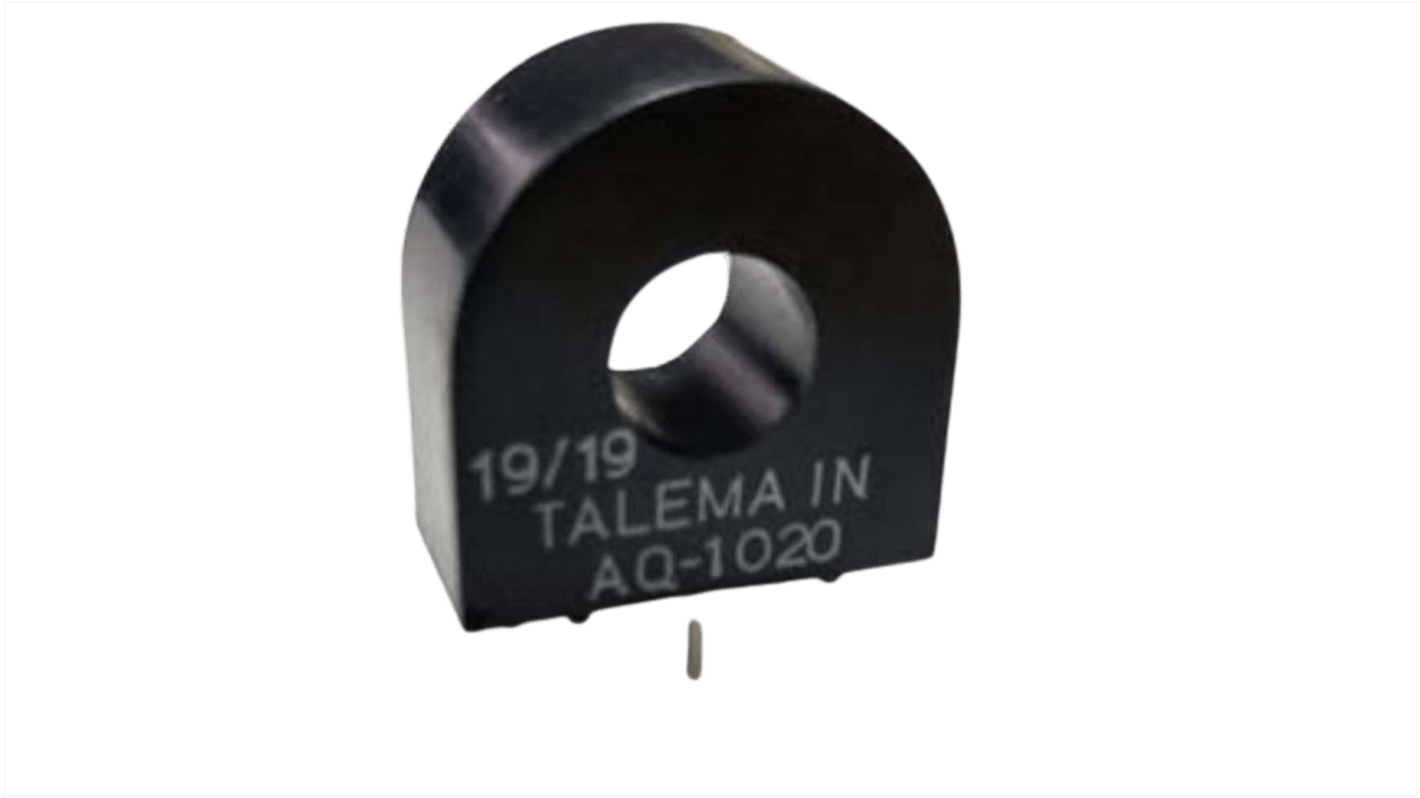

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 230-4781
- Mfr. Part No.:
- AQ-1020
- Brand:
- Nuvotem Talema
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nuvotem Talema | |
| Product Type | Current Transformer | |
| Series | AQ | |
| Primary DC Resistance | 42Ω | |
| Terminal Type | Wire | |
| Primary Current | 20A | |
| Standards/Approvals | RoHS | |
| Depth | 9.53mm | |
| Width | 23.8 mm | |
| Length | 20.4mm | |
| Maximum Operating Frequency | 60Hz | |
| Mount Type | Through Hole | |
| Minimum Operating Frequency | 50Hz | |
| Turns Ratio | 1000:1 | |
| Bore Size | 9.5 mm | |
| Supply Voltage | 300 V | |
| Select all | ||
|---|---|---|
Brand Nuvotem Talema | ||
Product Type Current Transformer | ||
Series AQ | ||
Primary DC Resistance 42Ω | ||
Terminal Type Wire | ||
Primary Current 20A | ||
Standards/Approvals RoHS | ||
Depth 9.53mm | ||
Width 23.8 mm | ||
Length 20.4mm | ||
Maximum Operating Frequency 60Hz | ||
Mount Type Through Hole | ||
Minimum Operating Frequency 50Hz | ||
Turns Ratio 1000:1 | ||
Bore Size 9.5 mm | ||
Supply Voltage 300 V | ||
The Nuvotem Talema AQ series high output voltage, high accuracy and high current rating current transformers. It can be used in Instrumentation, energy meters, EV charging application. It has 20 A current rating.
Excellent linearity over rated current range
RoHS & REACH compliant
