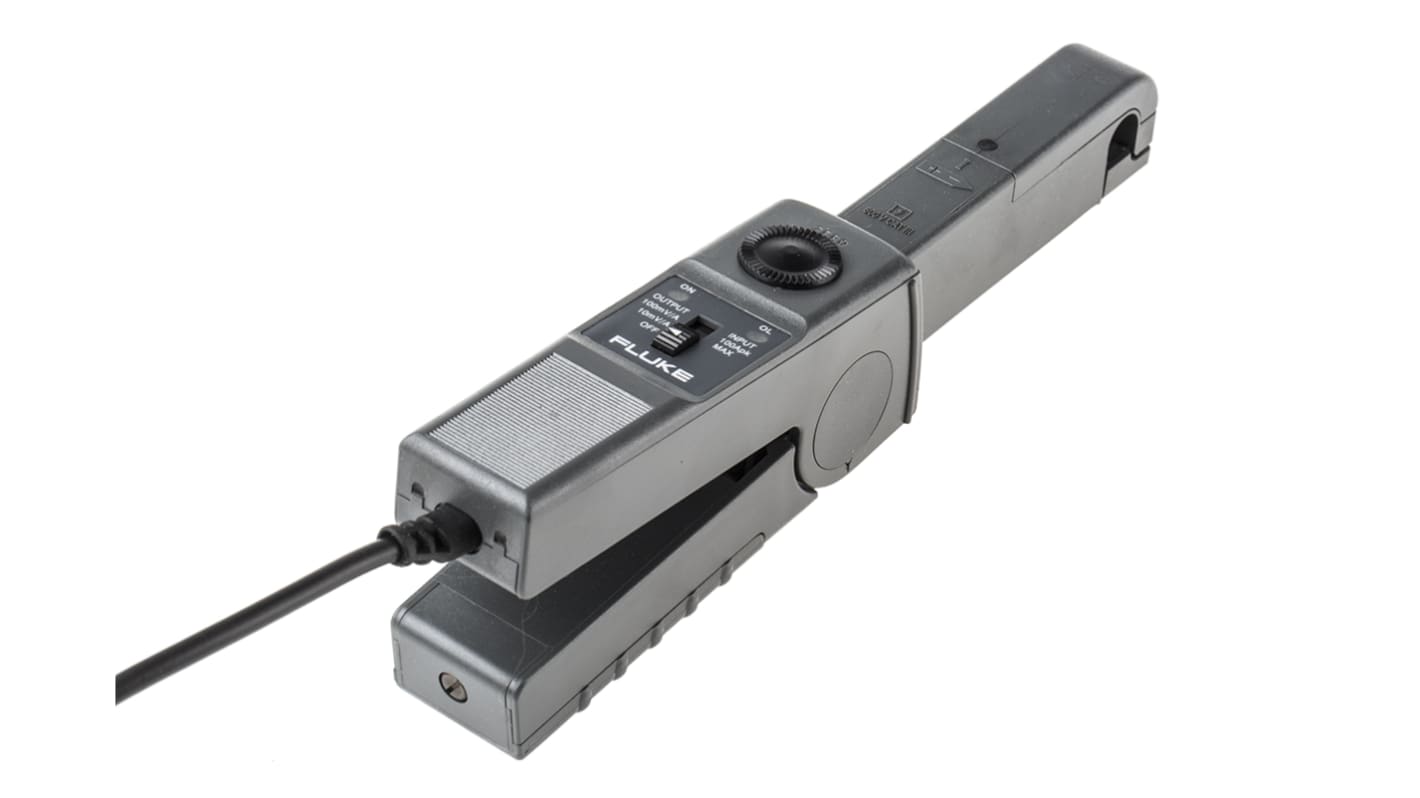

Fluke 80i-110s Current Clamp, 100 A DC Max, BNC Adapter Adapter, 100 A ac AC Max

RS Stock No.:: 188-4130
Distrelec Article No.:: 176-12-955
Mfr. Part No.:: 80I-110S
Brand:: Fluke

Fluke 80i-110s Current Clamp, 100 A DC Max, BNC Adapter Adapter, 100 A ac AC Max

Subtotal (1 unit)*

$1,688.00

(exc. GST)

$1,856.80

(inc. GST)

FREE delivery for orders over $60.00 ex GST

Stocked by manufacturer

Ready to ship from 01 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	$1,688.00

*price indicative

RS Stock No.:: 188-4130
Distrelec Article No.:: 176-12-955
Mfr. Part No.:: 80I-110S
Brand:: Fluke

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Adapter Type	BNC Adapter
	Product Type	Current Clamp
	Maximum DC Current	100A
	Maximum AC Current	100A ac
	Accuracy	± 3 % of Reading + 50 mA
	Maximum Conductor Size	11.8mm
	Cable Length	1.6m
	Connector Type	BNC
	Battery Type	IEC 6LR61
	Minimum Operating Temperature	0°C
	Battery Life	55h
	Maximum Operating Temperature	50°C
	Standards/Approvals	IEC 1010 and CSAC22.2
	Model Number	80i-110s
	Safety Category Voltage	500V
	Safety Category Level	CAT II, CAT III

	Select all
	Brand Fluke
	Adapter Type BNC Adapter
	Product Type Current Clamp
	Maximum DC Current 100A
	Maximum AC Current 100A ac
	Accuracy ± 3 % of Reading + 50 mA
	Maximum Conductor Size 11.8mm
	Cable Length 1.6m
	Connector Type BNC
	Battery Type IEC 6LR61
	Minimum Operating Temperature 0°C
	Battery Life 55h
	Maximum Operating Temperature 50°C
	Standards/Approvals IEC 1010 and CSAC22.2
	Model Number 80i-110s
	Safety Category Voltage 500V
	Safety Category Level CAT II, CAT III

RoHS Status: Exempt

COO (Country of Origin):: FR

Fluke Current Clamp, 100A Maximum AC Current, 11.8mm Maximum Conductor Size - 80I-110S

This current clamp measures AC and DC currents and outputs a proportional voltage for connection to scope, analyser or meter inputs via a BNC interface. It is intended for use alongside test tools that accept BNC connections and supports measurement of conductors commonly found in industrial and commercial electrical systems.

Features & Benefits

• Measures 0.1–100A AC or DC for broad current coverage
• High-accuracy probe ±3% of reading Plus 50mA for precise readings
• Bandwidth DC–100kHz to capture fast signals and harmonics
• Output levels 100mV/A and 10mV/A for flexible interfacing
• 1.6m cable with BNC adaptor for convenient connection to instruments
• Safety-rated CAT II 600V and CAT III 300V for specified installation categories

Applications

• Suitable for power quality analysis with oscilloscopes and analysers
• Ideal for commissioning and fault diagnosis in automation systems
• Used for load studies and harmonic measurement on inverters and drives
• Can be used for preventative maintenance on industrial electrical panels
• Used with multimeters converted to BNC inputs for portable field checks

What is the maximum conductor size the clamp accepts?

The jaw accommodates conductors up to 11.8mm diameter enabling measurements on single-core cables and small busbars.

How is the clamp powered and how long will it run between battery changes?

It operates from a single IEC 6LR61 battery and provides approximately 55h of operation under typical conditions.

Which output amplitude should I use for higher resolution on low currents?

Use the 100mV/A output setting when measuring in the 0.1–10A range to improve signal amplitude for small currents.

What environmental temperatures can it tolerate during use?

The device is specified for operation between 0°C and 50°C, suitable for most indoor industrial environments.
