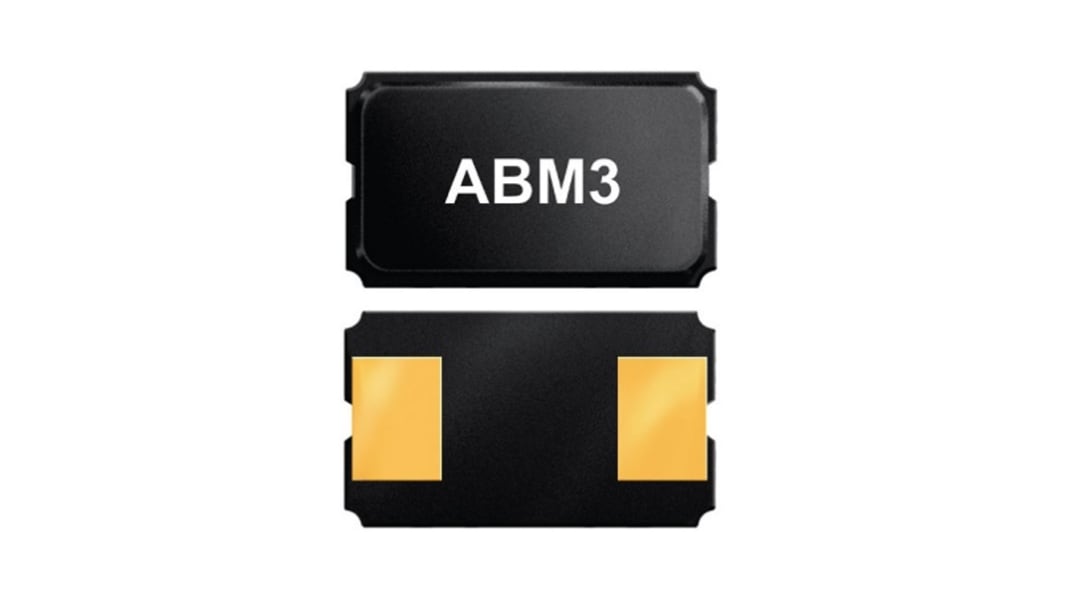

Abracon 24.576MHz Crystal Unit SMD 2-Pin 5 x 3.2 x 1.3mm
- RS Stock No.:
- 241-2977
- Mfr. Part No.:
- ABM3-24.576MHZ-D2Y-T
- Brand:
- Abracon
4000 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (On a Reel of 1000)
$0.515
(exc. GST)
$0.567
(inc. GST)
| Units | Per unit | Per Reel* |
| 1000 - 4000 | $0.515 | $515.00 |
| 5000 + | $0.464 | $464.00 |
| *price indicative | ||
- RS Stock No.:
- 241-2977
- Mfr. Part No.:
- ABM3-24.576MHZ-D2Y-T
- Brand:
- Abracon
Technical data sheets
Legislation and Compliance
Product Details
The Abracon ceramic smd crystal is hermetically sealed and not moisture sensitive. It is used as Cellular telephones, pagers, Communication and test equipment, PCMCIA and wireless applications.
Frequency 24.576 MHz
ESR (Equivalent Series Resistance) 30 Ω
Mounting Type Surface Mount
Operating Temperature -40°C ∼ 85°C
AT-cut fundamental or 3rd OT mode
Suitable for RoHS reflow profile
Tight Stability available ±10
Ceramic package hermetically glass sealed assures high precision and reliability
ESR (Equivalent Series Resistance) 30 Ω
Mounting Type Surface Mount
Operating Temperature -40°C ∼ 85°C
AT-cut fundamental or 3rd OT mode
Suitable for RoHS reflow profile
Tight Stability available ±10
Ceramic package hermetically glass sealed assures high precision and reliability
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Standard Frequency | 24.576MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 18pF |
| Package Type | SMD |
| Pin Count | 2 |
| Dimensions | 5 x 3.2 x 1.3mm |
