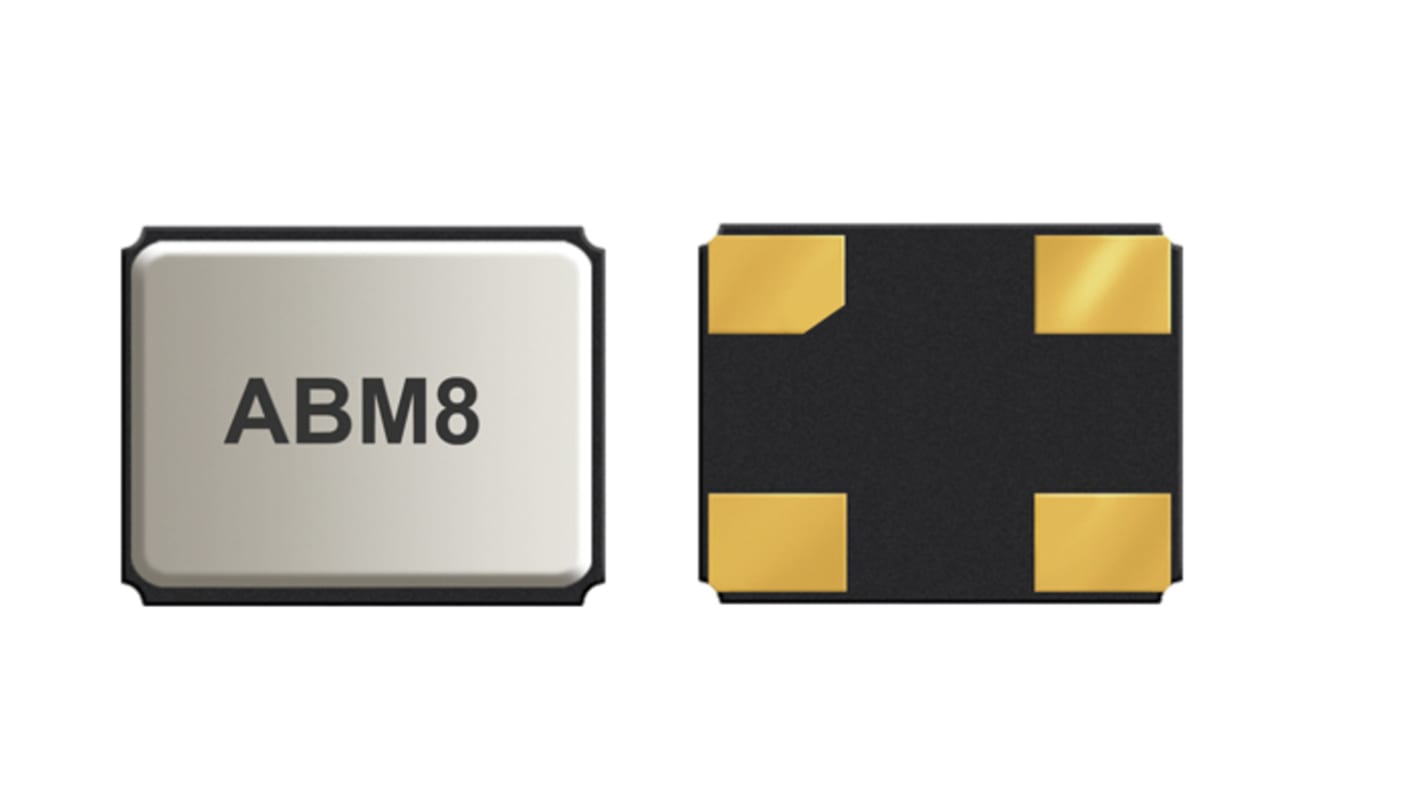

Abracon 20MHz Crystal Unit ±10ppm SMD 4-Pin 3.2 x 2.5 x 0.8mm
- RS Stock No.:
- 187-5802
- Mfr. Part No.:
- ABM8-20.000MHz-12-D1X-T
- Brand:
- Abracon
Bulk discount available
Subtotal (1 reel of 1000 units)**
$597.00
(exc. GST)
$657.00
(inc. GST)
On back order for despatch 29/12/2025, delivery within 10 working days from despatch date.*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Units | Per unit | Per Reel** |
|---|---|---|
| 1000 - 1000 | $0.597 | $597.00 |
| 2000 - 3000 | $0.583 | $583.00 |
| 4000 + | $0.574 | $574.00 |
**price indicative
- RS Stock No.:
- 187-5802
- Mfr. Part No.:
- ABM8-20.000MHz-12-D1X-T
- Brand:
- Abracon
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Standard Frequency | 20MHz | |
| Mounting Type | Surface Mount | |
| Load Capacitance | 12pF | |
| Package Type | SMD | |
| Pin Count | 4 | |
| Length | 3.2mm | |
| Width | 2.5mm | |
| Height | 0.8mm | |
| Dimensions | 3.2 x 2.5 x 0.8mm | |
| Frequency Tolerance | ±10ppm | |
| Frequency Stability | ±20ppm | |
| Series Resistance | 50Ω | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
Select all | ||
|---|---|---|
Brand Abracon | ||
Standard Frequency 20MHz | ||
Mounting Type Surface Mount | ||
Load Capacitance 12pF | ||
Package Type SMD | ||
Pin Count 4 | ||
Length 3.2mm | ||
Width 2.5mm | ||
Height 0.8mm | ||
Dimensions 3.2 x 2.5 x 0.8mm | ||
Frequency Tolerance ±10ppm | ||
Frequency Stability ±20ppm | ||
Series Resistance 50Ω | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
