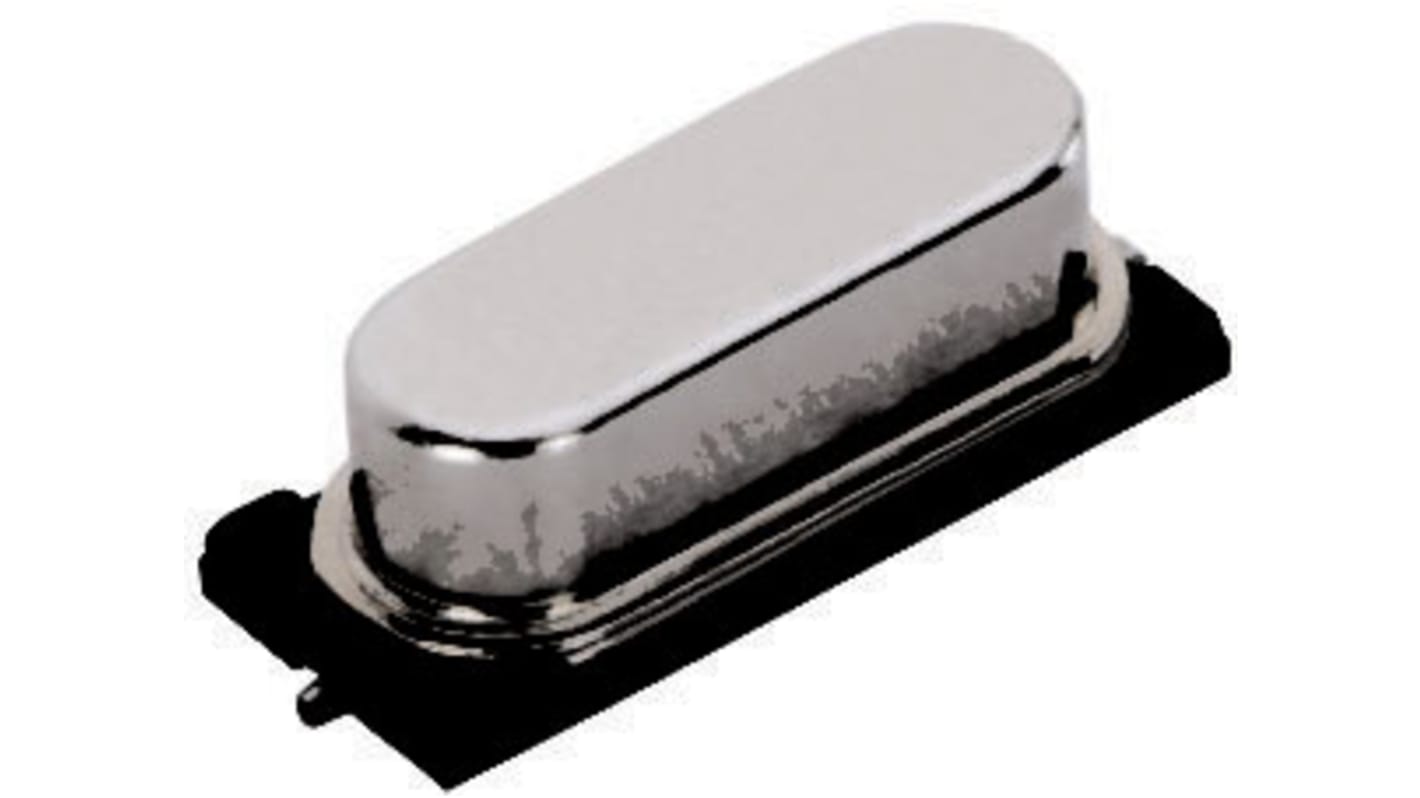

CTS 12MHz Crystal Unit ±30ppm HC-49/US-SM 2-Pin 11.1 x 4.83 x 3.6mm

RS Stock No.:: 178-1943
Mfr. Part No.:: ATS12ASM-1E
Brand:: CTS

CTS 12MHz Crystal Unit ±30ppm HC-49/US-SM 2-Pin 11.1 x 4.83 x 3.6mm

View all Crystal Units

Stock check temporarily unavailable - call for stock availability

Added

View basket

Price (ex. GST) Each (On a Reel of 1000)

$0.30

(exc. GST)

$0.33

(inc. GST)

Units	Per unit	Per Reel*
1000 - 2000	$0.30	$300.00
3000 - 14000	$0.281	$281.00
15000 +	$0.253	$253.00
*price indicative

RS Stock No.:: 178-1943
Mfr. Part No.:: ATS12ASM-1E
Brand:: CTS

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

CTS has a wide variety of crystal (XTAL) products that are available in multiple package types and frequencies. Perfect crystal solutions whether you are starting a new design with critical specifications or if you just need a reliable source for an existing application. Available in glass seal or seam seal packages with sizes as small as 1.6mm ´ 1.2mm.

High Q quartz resonators
Fundamental and 3rd overtone crystal designs
Low cost ceramic small package footprints – to 1.6mmx1.2mm size
Tight stability options: as low as ±10ppm, -30°C to +85°C operating temperature range
Real Time clock reference @ 32.768kHz [tuning fork crystal design], TF type models
Operating temperatures to -40°C to +150°C
Legacy metal packages available: HC-49/U, HC-49/US, HC-49/US-SM

Specifications

Attribute	Value
Standard Frequency	12MHz
Mounting Type	Surface Mount
Load Capacitance	20pF
Package Type	HC-49/US-SM
Pin Count	2
Length	11.1mm
Width	4.83mm
Height	3.6mm
Dimensions	11.1 x 4.83 x 3.6mm
Frequency Tolerance	±30ppm
Frequency Stability	±50ppm
Series Resistance	40Ω
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	85°C
