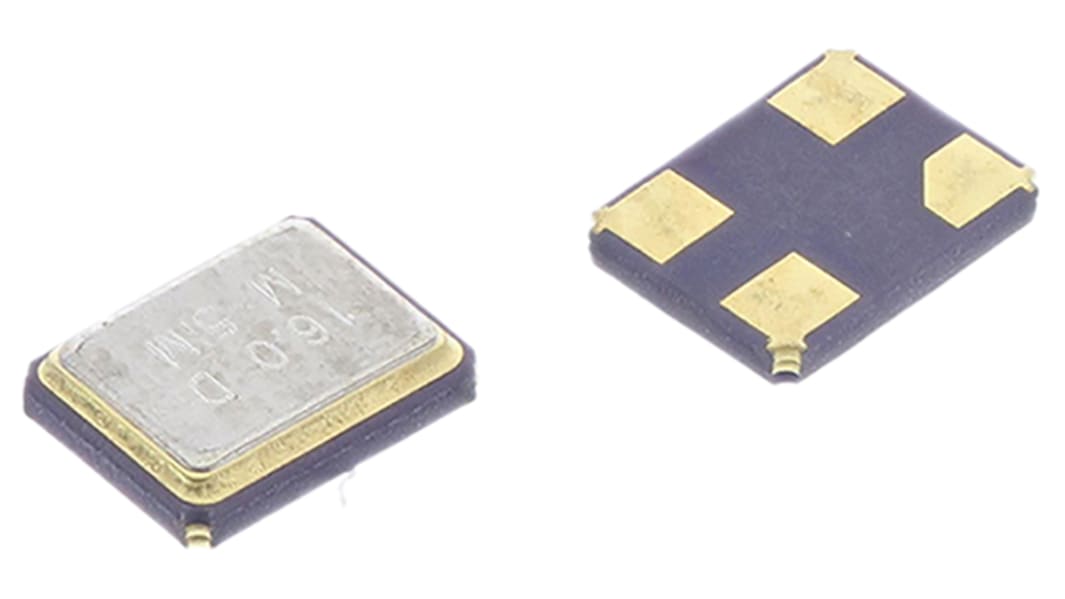

MERCURY 16MHz Crystal ±30ppm SMD 4-Pin 3.2 x 2.5 x 0.7mm
- RS Stock No.:
- 177-5251
- Mfr. Part No.:
- X32-16.000-12-30/30/4085
- Brand:
- MERCURY
4000 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (On a Reel of 1000)
$1.278
(exc. GST)
$1.406
(inc. GST)
| Units | Per unit | Per Reel* |
| 1000 - 4000 | $1.278 | $1,278.00 |
| 5000 + | $1.15 | $1,150.00 |
| *price indicative | ||
- RS Stock No.:
- 177-5251
- Mfr. Part No.:
- X32-16.000-12-30/30/4085
- Brand:
- MERCURY
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
X32 - MEC
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Crystals 3.2x2.5mm Ceramic case
Specifications
Attribute | Value |
|---|---|
| Standard Frequency | 16MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 12pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 3.2mm |
| Width | 2.5mm |
| Height | 0.7mm |
| Dimensions | 3.2 x 2.5 x 0.7mm |
| Frequency Tolerance | ±30ppm |
| Frequency Stability | ±30ppm |
| Series Resistance | 100Ω |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
