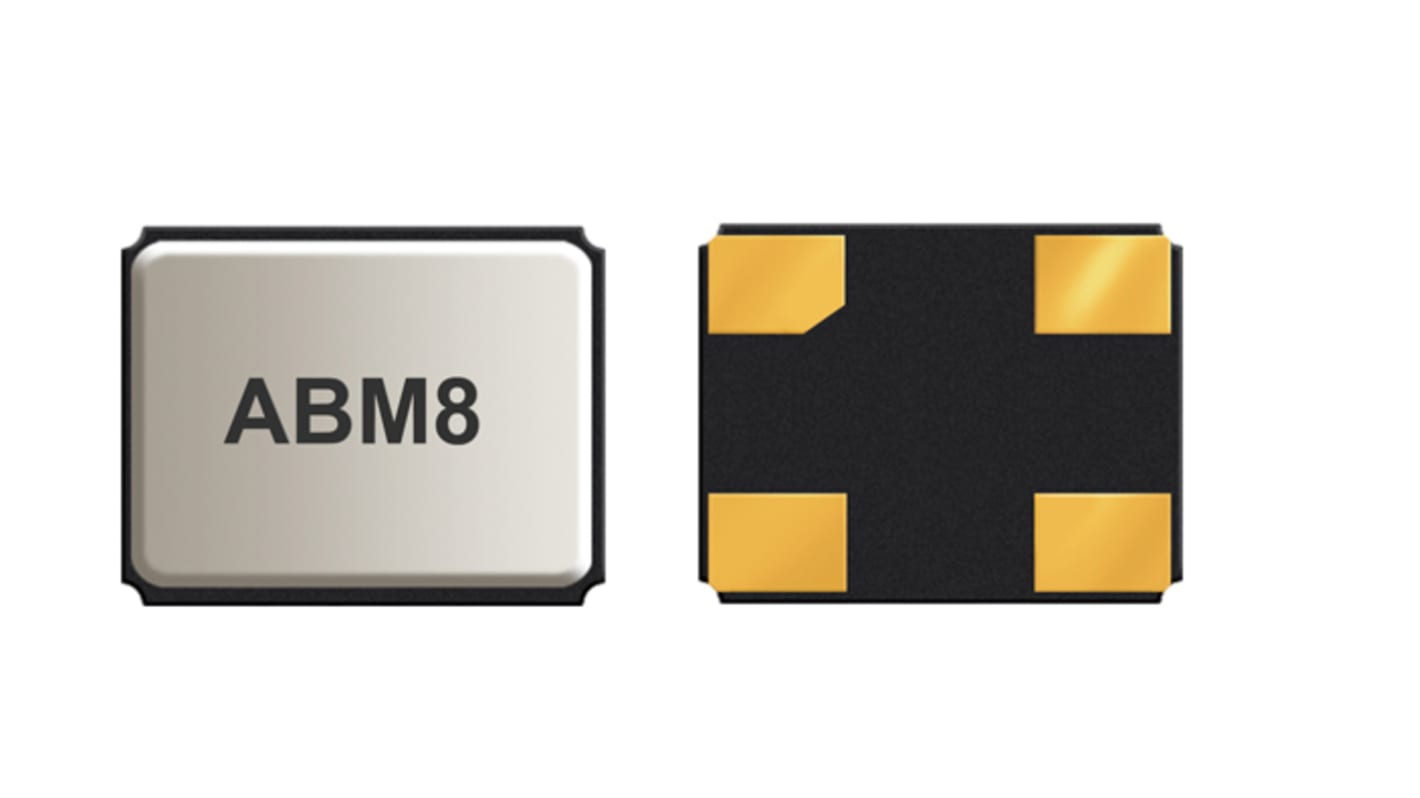

Abracon 16MHz Crystal Unit ±20ppm SMD 4-Pin 3.2 x 2.5 x 0.8mm
- RS Stock No.:
- 171-2803
- Mfr. Part No.:
- ABM8-16.000MHZ-B2-T
- Brand:
- Abracon
Bulk discount available
Subtotal (1 pack of 10 units)**
$7.43
(exc. GST)
$8.17
(inc. GST)
4680 In Global stock for delivery within 10 working day(s)*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Real time qty checker
Units | Per unit | Per Pack** |
|---|---|---|
| 10 - 240 | $0.743 | $7.43 |
| 250 - 490 | $0.724 | $7.24 |
| 500 + | $0.716 | $7.16 |
**price indicative
- RS Stock No.:
- 171-2803
- Mfr. Part No.:
- ABM8-16.000MHZ-B2-T
- Brand:
- Abracon
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Standard Frequency | 16MHz | |
| Mounting Type | Surface Mount | |
| Load Capacitance | 18pF | |
| Package Type | SMD | |
| Pin Count | 4 | |
| Length | 3.2mm | |
| Width | 2.5mm | |
| Height | 0.8mm | |
| Dimensions | 3.2 x 2.5 x 0.8mm | |
| Frequency Tolerance | ±20ppm | |
| Frequency Stability | ±50ppm | |
| Series Resistance | 70Ω | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
Select all | ||
|---|---|---|
Brand Abracon | ||
Standard Frequency 16MHz | ||
Mounting Type Surface Mount | ||
Load Capacitance 18pF | ||
Package Type SMD | ||
Pin Count 4 | ||
Length 3.2mm | ||
Width 2.5mm | ||
Height 0.8mm | ||
Dimensions 3.2 x 2.5 x 0.8mm | ||
Frequency Tolerance ±20ppm | ||
Frequency Stability ±50ppm | ||
Series Resistance 70Ω | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
