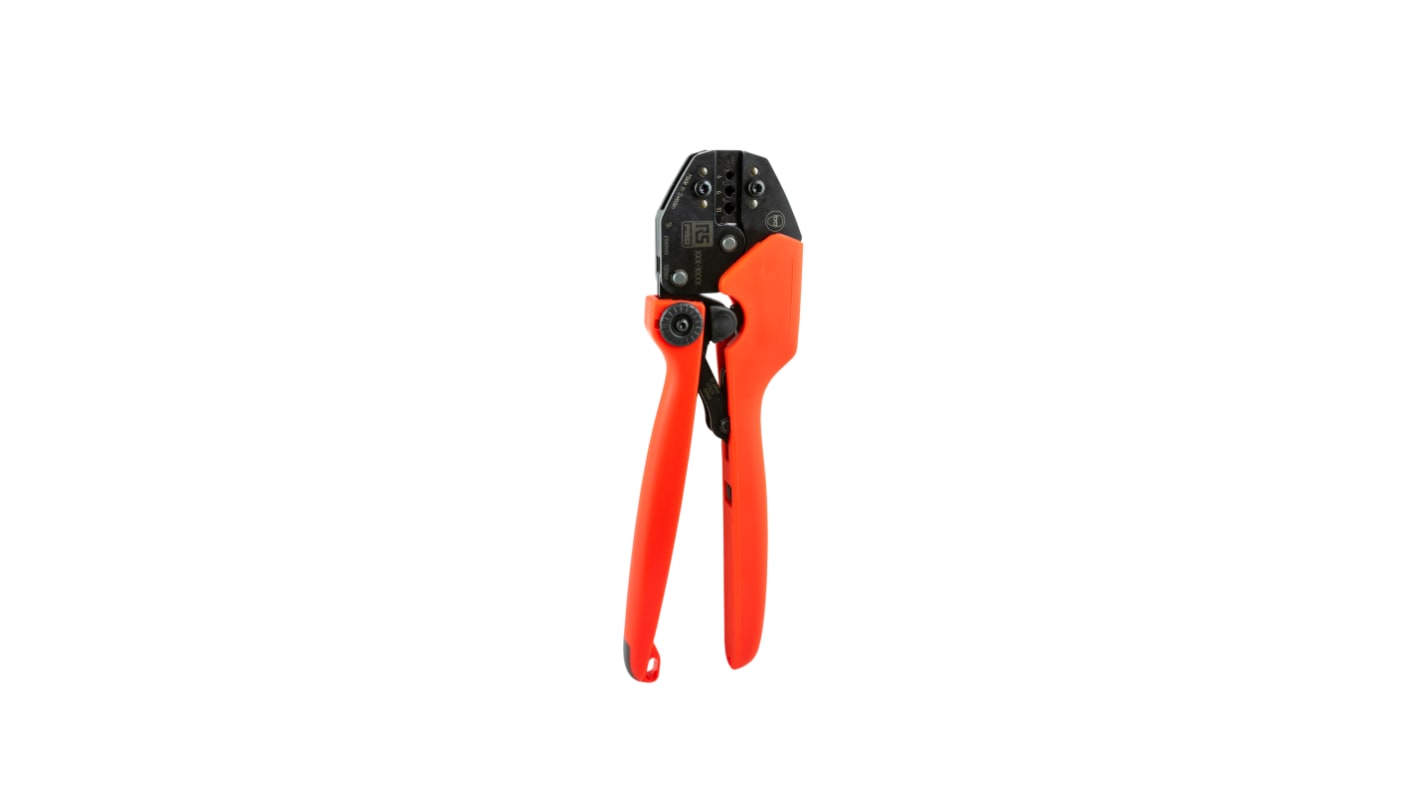

RS PRO Ratchet Crimp Tool
The RS PRO range of crimp tools keeps on improving. We are pleased to introduce a new selection of crimp tools perfect for ensuring a professional install for wires and connectors. Our offer included this high spec ratchet action crimp tool compatible with Type C turned pin and socket connectors.
Upon inspection, this crimp tool is made from high-quality material, feel comfortable in the hand and the ratchet has a precise action giving you the confidence that the union between cable wire and contact will be of the highest standard.
Upon inspection, this crimp tool is made from high-quality material, feel comfortable in the hand and the ratchet has a precise action giving you the confidence that the union between cable wire and contact will be of the highest standard.
How does it work?
This crimp tool has three contact locators (4 mm², 6 mm², and 10 mm²), place the required contact into the right locator which is held in place then insert the wire and crimp together. Use the precision eccentric adjustment for consistent performance and ability to calibrate.
Features and Benefits
• Provided with a locator for easy positioning of the contact
• For male and female type C contacts
• Unique mechanism significantly reduces fatigue
• Versatile and easy to use.
• Non-slip pad holds the tool in place when leveraging on a work surface
• Full cycle crimp mechanism to ensure consistent, reliable crimp
• Ratchet release mechanism to clear miss-crimps and obstructions
• Precision eccentric adjustment
• Hole in handle allows attachment of safety strap
• Each tool has a unique serial number for traceability
• For male and female type C contacts
• Unique mechanism significantly reduces fatigue
• Versatile and easy to use.
• Non-slip pad holds the tool in place when leveraging on a work surface
• Full cycle crimp mechanism to ensure consistent, reliable crimp
• Ratchet release mechanism to clear miss-crimps and obstructions
• Precision eccentric adjustment
• Hole in handle allows attachment of safety strap
• Each tool has a unique serial number for traceability
Specification
• Length: 256 mm
• Width: 40 mm
• Height: 80 mm
• Weight: 571 g
• Wire size: 4 - 10 mm²
• Crimp nest dimensions mm/mm2: 4 mm²/6 mm²/10 mm²
• Connector: Turned/machined contacts
• Life span, cycles: 50,000
• Width: 40 mm
• Height: 80 mm
• Weight: 571 g
• Wire size: 4 - 10 mm²
• Crimp nest dimensions mm/mm2: 4 mm²/6 mm²/10 mm²
• Connector: Turned/machined contacts
• Life span, cycles: 50,000
Applications
Electrical & electronic Servicing
Cable & Wire Installation
Maintenance
DIY Projects
Cable & Wire Installation
Maintenance
DIY Projects
Specifications
Attribute | Value |
---|---|
Series | 4300 |
Product Type | Crimp Tool |
Operation | Hand |
For Use With | Turned Crimp Contacts |
Wire Size mm² | 4 → 10mm² |
Ratcheting | Yes |
Overall Length | 256 mm |
