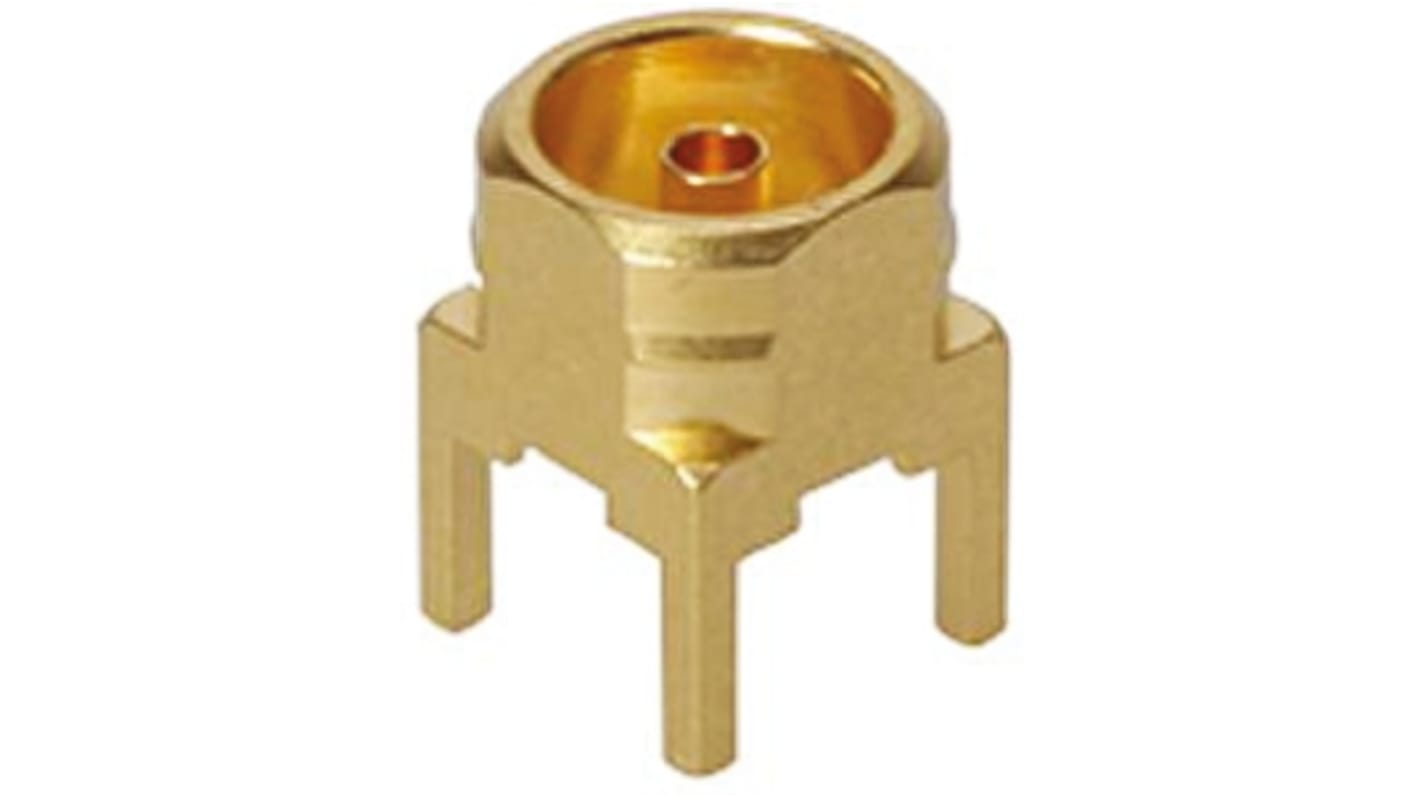

Huber+Suhner, jack Through Hole MBX Connector, 50Ω, Solder Termination, Straight Body

Hubner + Suhner MBX PCB connectors are for use as the primary board to board interface connectors within which adaptors between or within series are situated , with the ability to cope with mechanical misalignment in radial and axial directions and still maintain excellent electrical performance. Suitable MBX PCB connector applications include multiple board to board connections and complex stack-ups in radio module applications amongst others.

Compensating mechanical misalignment in axial and radial direction
50Ω impedence
No mechanical stress on piece parts or solder joints
Blind mateable
Excellent RF performance
Good power handling typical 260W at 2.4 GHz at room temperature
Frequency DC-6 GHz

MIL-STD-202, Method 107 G,Condition B1; MIL-STD-202, Method 106 F; MIL-STD-202, Method 101, Condition B; MIL-STD-202, Method 204 D, Condition A; MIL-STD-202, Method 213 B, Condition B
