- RS Stock No.:
- 229-5175
- Mfr. Part No.:
- RF178-03RP1-03RP1-0235
- Brand:
- Samtec
11 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$28.06
(exc. GST)
$30.87
(inc. GST)
Units | Per unit |
1 - 1 | $28.06 |
2 - 4 | $27.22 |
5 - 9 | $26.40 |
10 + | $25.62 |
- RS Stock No.:
- 229-5175
- Mfr. Part No.:
- RF178-03RP1-03RP1-0235
- Brand:
- Samtec
Technical data sheets
Legislation and Compliance
RoHS Status: Exempt
Product Details

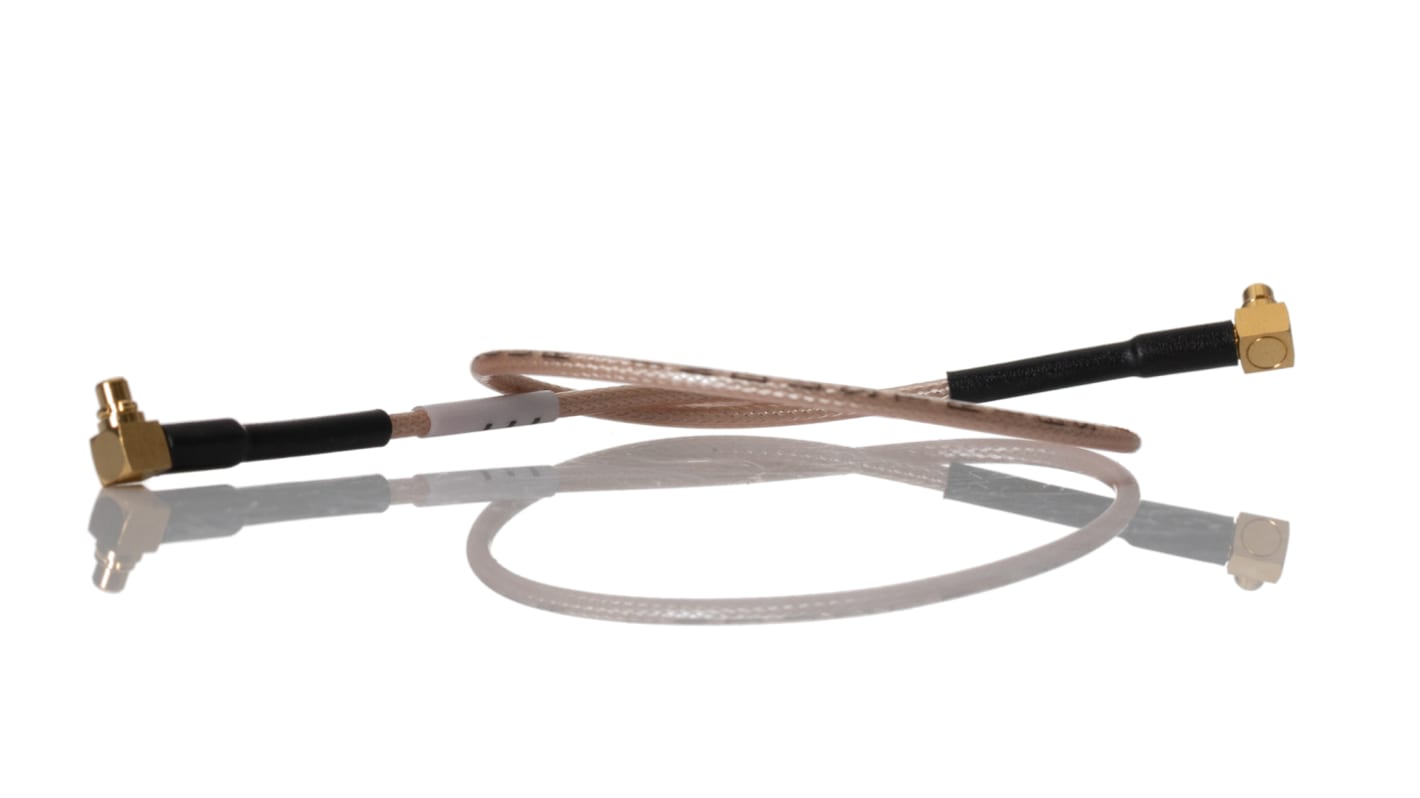

Samtec Coaxial Cable, MMCX Connectors, 50Ω Impedance - RF178 Series - RF178-03RP1-03RP1-0235
Looking to securely send sensor data through your system? Count on this coaxial cable from Samtec. The cord's silver and copper-plated steel shielding drowns out disruptive electrical noise, providing a safe signalling path through high EMI levels. Thanks to a propagation delay of 4.83ns/m, the lead gets information to its destination in a snap. Nicks and cuts are no match for this product's hard-wearing FEP sheath. As the cable dials attenuation down to 1.7dB/m, it keeps signal strength high with minimal losses.
Features & Benefits
• Carries frequencies between 0 and 5GHz for versatile signalling
• Conductive copper wiring assures you of reliable electrical connections
• Right-angled plug allows for links in awkward areas
• Short length of 235mm cuts out clutter for tidy installation
• Works reliably in demanding settings, thanks to a wide operating temperature range between -50°C and +165°C
• Conductive copper wiring assures you of reliable electrical connections
• Right-angled plug allows for links in awkward areas
• Short length of 235mm cuts out clutter for tidy installation
• Works reliably in demanding settings, thanks to a wide operating temperature range between -50°C and +165°C
Applications
• Packaging industry
• Security systems
• Industrial automation
• Security systems
• Industrial automation
Can I flex this lead during installation?
Yes, this cable has a minimum bend radius of 10.2mm, so it easily flexes to fit into awkward spaces.
What devices can I use this cord with?
Thanks to this product's industry-standard MMCX connectors, it's a sure fit for everyday telecommunication and radio equipment.
Specifications
Attribute | Value |
---|---|
Connector 1 | MMCX |
Terminated/Unterminated | Terminated |
Connector 2 | MMCX |
Coaxial Type | RF |
Connector 1 Gender | Male |
Connector 2 Gender | Male |
Connector 1 Orientation | Right Angle |
Connector 2 Orientation | Right Angle |
Characteristic Impedance | 50 Ω |
Length | 235mm |
Sheath Colour | Black |
Minimum Operating Temperature | -50°C |
Maximum Operating Temperature | +165°C |
Series | SMA |
Operating Temperature Range | -50 → +165 °C |
