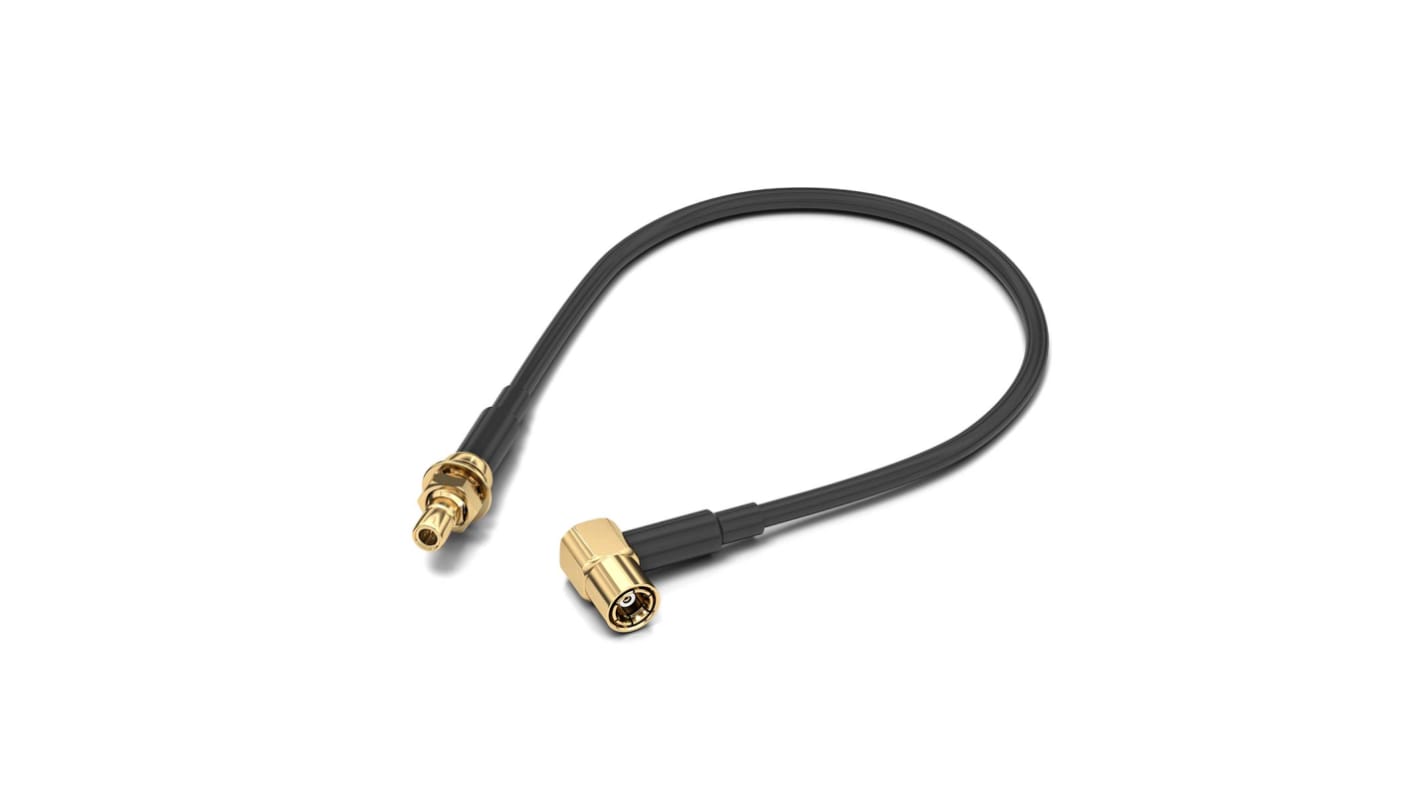

Wurth Elektronik WR-CXASY Series Male SMB to Female SMB Coaxial Cable, 152.4mm, RG174/U Coaxial, Terminated
- RS Stock No.:
- 206-9004
- Mfr. Part No.:
- 65503110315301
- Brand:
- Wurth Elektronik
30 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$68.79
(exc. GST)
$75.67
(inc. GST)
Units | Per unit |
---|---|
1 - 2 | $68.79 |
3 + | $67.06 |
- RS Stock No.:
- 206-9004
- Mfr. Part No.:
- 65503110315301
- Brand:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The Wurth Elektronik RG-174/U flexible coaxial cable has length up to 152.4 mm. The cable has braided shielding. It has 1 GHz operating frequency range.
Operating temperature range is from -65 °C to +165 °C
RoHS compliant
REACh compliant
RoHS compliant
REACh compliant
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Connector 1 | SMB |
Terminated/Unterminated | Terminated |
Connector 2 | SMB |
Coaxial Type | RG174/U |
Connector 1 Gender | Male |
Connector 2 Gender | Female |
Connector 1 Orientation | Right Angle |
Outer Diameter | 2.7mm |
Characteristic Impedance | 50 Ω |
Attenuation | 0.37 dB |
Length | 152.4mm |
Insulation Material | PTFE |
Standards Met | REACH |
Shielding | Braid |
Conductor Material | Beryllium Copper |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +80°C |
Series | WR-CXASY |
Operating Temperature Range | -20 → +80 °C |
