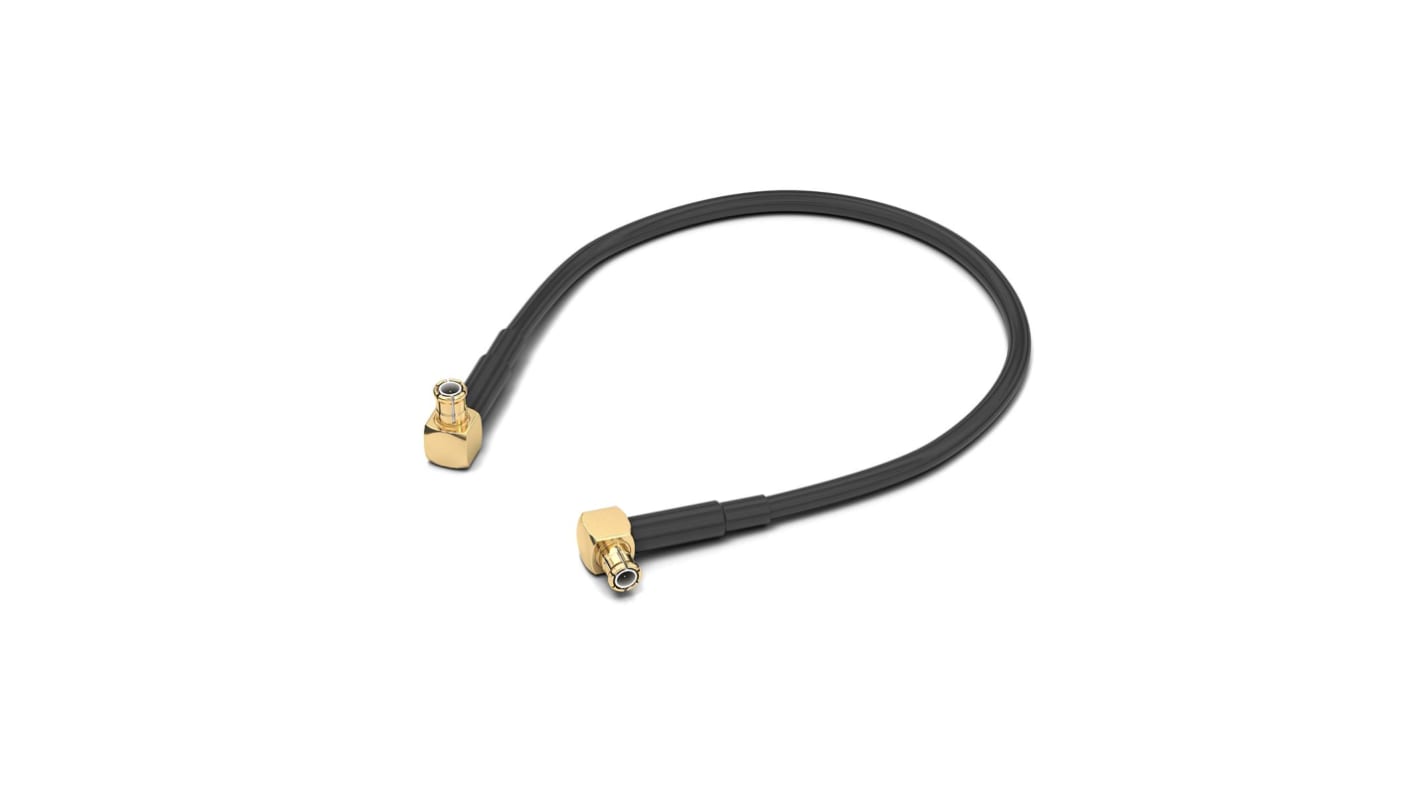

Wurth Elektronik WR-CXASY Series Male MCX to Male MCX Coaxial Cable, 152.4mm, RG174/U Coaxial, Terminated
- RS Stock No.:
- 205-3708
- Mfr. Part No.:
- 65502110315301
- Brand:
- Wurth Elektronik
30 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Bag of 10)
$49.955
(exc. GST)
$54.951
(inc. GST)
| Units | Per unit | Per Bag* |
| 10 - 10 | $49.955 | $499.55 |
| 20 - 90 | $48.705 | $487.05 |
| 100 + | $43.835 | $438.35 |
| *price indicative | ||
- RS Stock No.:
- 205-3708
- Mfr. Part No.:
- 65502110315301
- Brand:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The Wurth Elektronik RG-174/U flexible coaxial cable has length up to 152.4 mm. The cable has braided shielding. It has 1 GHz operating frequency range.
Operating temperature range is from -65 °C to +165 °C
RoHS compliant
REACh compliant
RoHS compliant
REACh compliant
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Connector 1 | MCX |
| Terminated/Unterminated | Terminated |
| Connector 2 | MCX |
| Coaxial Type | RG174/U |
| Connector 1 Gender | Male |
| Connector 2 Gender | Male |
| Connector 1 Orientation | Right Angle |
| Connector 2 Orientation | Right Angle |
| Outer Diameter | 2.7mm |
| Characteristic Impedance | 50 Ω |
| Attenuation | 0.35 dB |
| Length | 152.4mm |
| Maximum Operating Temperature | +80°C |
| Conductor Material | Brass |
| Insulation Material | PTFE |
| Shielding | Braid |
| Standards Met | REACH |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +80 °C |
| Series | WR-CXASY |
