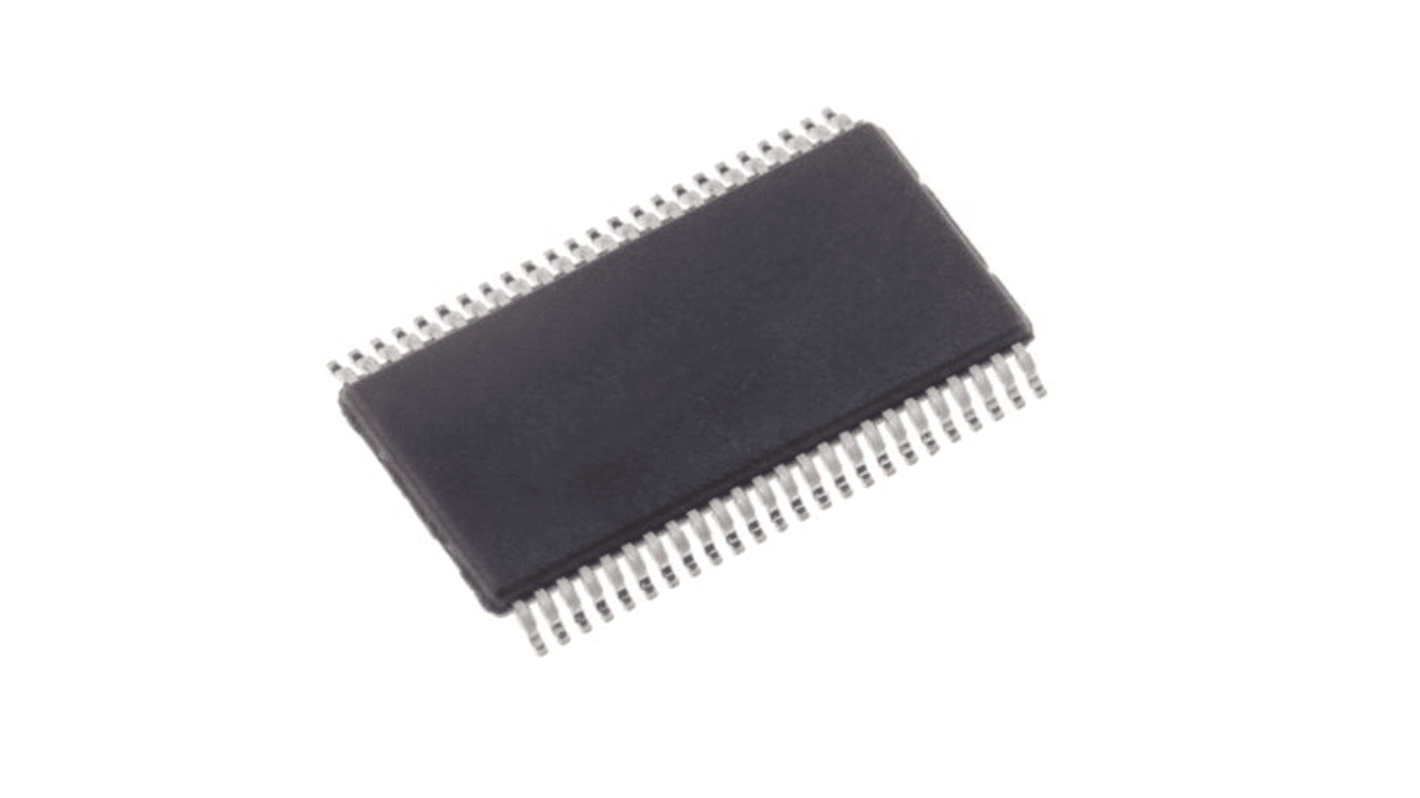

Renesas Electronics 6V49205BPAGI, Frequency Synthesizer 4.6 V 48-Pin TSSOP

The Renesas Electronics a main clock for freescale P10xx and P20xx-based systems. It has a selectable system CCB clock and 2 DDRCLK speeds – 100 M or 66.66 M. It also provides LP-HCSL PCIe outputs for low power and reduced board space.

Replaces 11 crystals, 2 oscillators and 3 clock generators, lowers cost, power and area
Integrated terminations on LP-HCSL PCIe outputs, eliminate 24 resistors, saving 41 mm 2 of board area
Industrial temperature range operation, supports demanding environmental conditions
Advanced 3.3 V CMOS process, high-performance, low-power
Supports independent spread spectrum on Sys_CCB/DDRCLK and PCIe outputs
Available in 48-pin TSSOP and space-saving 7 x 7 mm
48-pin VFQFPN with 0.5 mm pad pitch, reduced board space without the need for fine-pitch assembly techniques
