Fluke 376 FC Clamp Meter Bluetooth, 999.9A dc, Max Current 2.5 (Probe) kA ac CAT III 1000 V, CAT IV 600 V
- RS Stock No.:
- 905-5914
- Mfr. Part No.:
- FLUKE-376 FC
- Manufacturer:
- Fluke
View all Clamp Meters
19 In stock for delivery within 1 working day(s)
Price (ex. GST) Each
$1,057.00
(exc. GST)
$1,162.70
(inc. GST)
| units | Per unit |
| 1 + | $1,057.00 |
- RS Stock No.:
- 905-5914
- Mfr. Part No.:
- FLUKE-376 FC
- Manufacturer:
- Fluke
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details
Fluke 376 FC True-RMS Clamp Meter
The Fluke 376 FC True-RMS clamp meter measures current up to 999.9A AC/DC via jaw, 2500A AC via iFlex and voltage up to 1000V AC/DC. It enables you to log, trend and monitor measurements while remaining safely away from the arc flash zone through Bluetooth connectivity. Connect your meter to your smartphone using Fluke connect measurements app to increase the troubleshooting power of clamp.
Note:
Measurement data from 370 FC Series clamp meters and other test tools can be wirelessly transmitted to smartphones for storage on the Fluke Cloud™ and for team access from the field (subject to the wireless service area, plan pricing and other criteria).

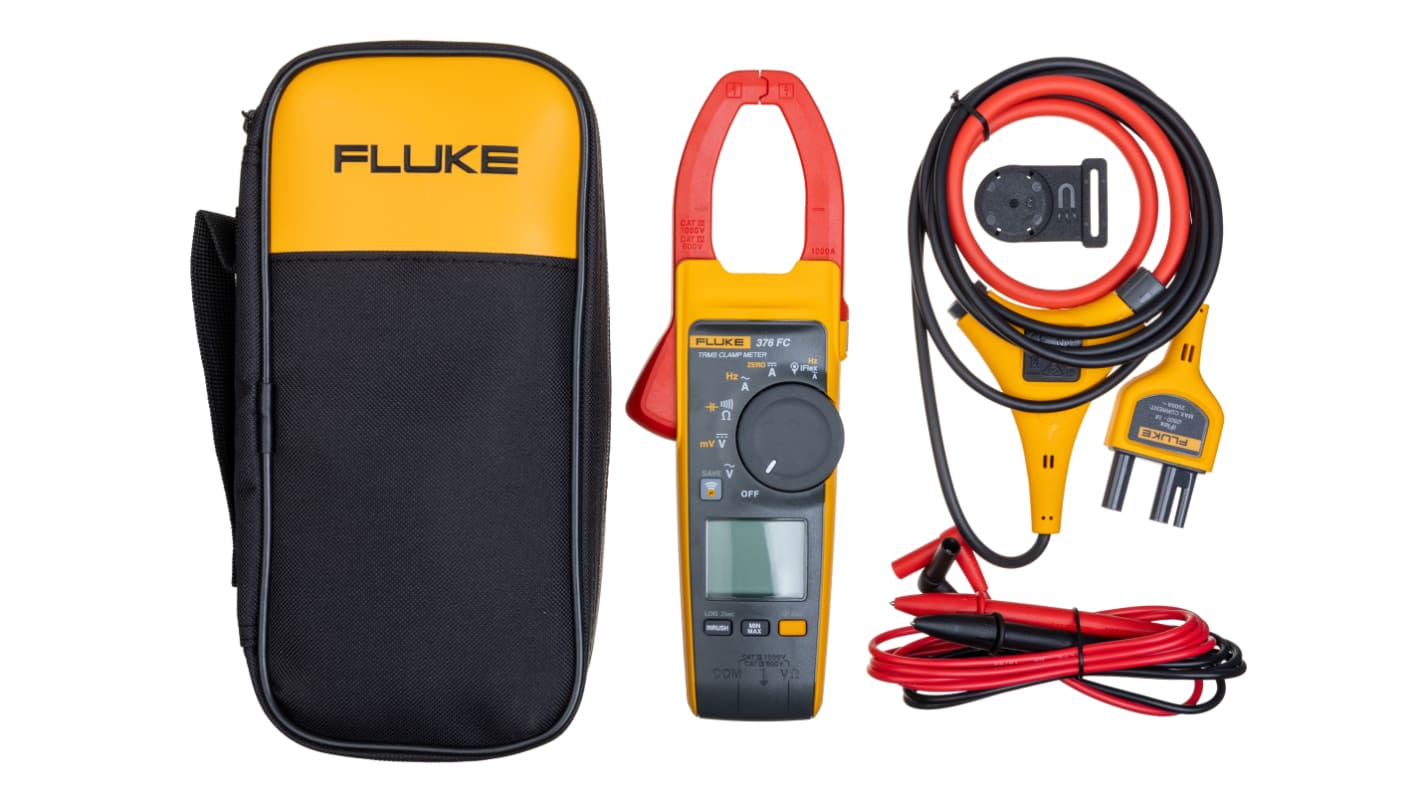

The Fluke 376 FC is supplied with:
TL75 test leads, AA alkaline batteries (x2), coated instruction card, safety information sheet, soft carrying case, 18-inch iFlex® flexible current probe (376 FC only), TPAK magnetic hanging strap (376 FC only)
Note:
Measurement data from 370 FC Series clamp meters and other test tools can be wirelessly transmitted to smartphones for storage on the Fluke Cloud™ and for team access from the field (subject to the wireless service area, plan pricing and other criteria).
The Fluke 376 FC is supplied with:
TL75 test leads, AA alkaline batteries (x2), coated instruction card, safety information sheet, soft carrying case, 18-inch iFlex® flexible current probe (376 FC only), TPAK magnetic hanging strap (376 FC only)
Features and Benefits
60kohm resistance measurement with continuity detection
Frequency measurement up to 500Hz with both, jaw and iFlex
Minimum, maximum, average and inrush recording to capture variations automatically
True RMS AC voltage and current for accurate measurements on non-linear signals
500mV DC measurement range to interface with other accessories
1000μF capacitance measurement
Connect your meter to your smartphone with fluke connect measurements
Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
Records result directly to your phone and the cloud
Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls
Large, easy to read, backlight display automatically sets the correct measurement range so you do not need to change switch positions while taking a measurement
Compatible with TPAK magnetic hanging strap
Low pass filter for stable readings in noisy environments
Hold button
Soft carrying case
Frequency measurement up to 500Hz with both, jaw and iFlex
Minimum, maximum, average and inrush recording to capture variations automatically
True RMS AC voltage and current for accurate measurements on non-linear signals
500mV DC measurement range to interface with other accessories
1000μF capacitance measurement
Connect your meter to your smartphone with fluke connect measurements
Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
Records result directly to your phone and the cloud
Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls
Large, easy to read, backlight display automatically sets the correct measurement range so you do not need to change switch positions while taking a measurement
Compatible with TPAK magnetic hanging strap
Low pass filter for stable readings in noisy environments
Hold button
Soft carrying case
Applications
The Fluke 376 FC is ideal for:
Electricians
Commercial sites
Residential plant maintenance
Home inspections
HVAC/R
Electricians
Commercial sites
Residential plant maintenance
Home inspections
HVAC/R
Certifications
CE certified
cUS approved
TUV approved
IEC/EN 61010-1:2001
cUS approved
TUV approved
IEC/EN 61010-1:2001
Specifications
| Attribute | Value |
| Absolute Maximum AC Current Measurement | 2.5 (Probe) kA ac, 999.9 (Jaw)A ac |
| Absolute Maximum DC Current Measurement | 999.9A dc |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Resistance Measurement | 60kΩ |
| Connectivity | Bluetooth |
| Model Number | 376 FC |
| AC Current Measurement Resolution | 0.1 (Jaw) A ac, 1 (Probe)A ac |
| DC Current Measurement Resolution | 0.1A |
| Best DC Current Accuracy | 2% ±5 Digits |
| Clamp Meter Type | AC-DC Flexible Clamp Meter |
| Best AC Current Accuracy | 2% ±5 Digits (Jaw), 3% ±5 (Probe) |
| Best AC Voltage Accuracy | 1.5% ±5 Digits |
| Best DC Voltage Accuracy | 1% ±5 Digits |
| True RMS | Yes |
| Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance |
| Power Source | Battery |
| Width | 85mm |
| Length | 249mm |
| Resistance Measurement Resolution | 0,1 Ω (≤600 Ω), 1 Ω (≤6000 Ω), 10 Ω (≤60 kΩ) |
| Dimensions | 249 x 85 x 45mm |
| DC Voltage Measurement Resolution | 0,1 V (≤600 V), 1 V (≤1000 V) |
| Minimum Operating Temperature | -10°C |
| Weight | 395g |
| Safety Category Level | CAT III, CAT IV |
| Jaw Capacity Busbars | 34mm |
| AC Voltage Measurement Resolution | 0,1 V (≤600 V), 1 V (≤1000 V) |
| Height | 45mm |
| Safety Category | CAT III 1000 V, CAT IV 600 V |
| Battery Type | 2 AA, IEC LR6, NEDA 15A |
| Safety Category Voltage | 600 V, 1000 V |
| Best Resistance Measurement Accuracy | 1% ±5 Digits |
| Maximum Operating Temperature | +50°C |
| Display Type | Backlit LCD |
