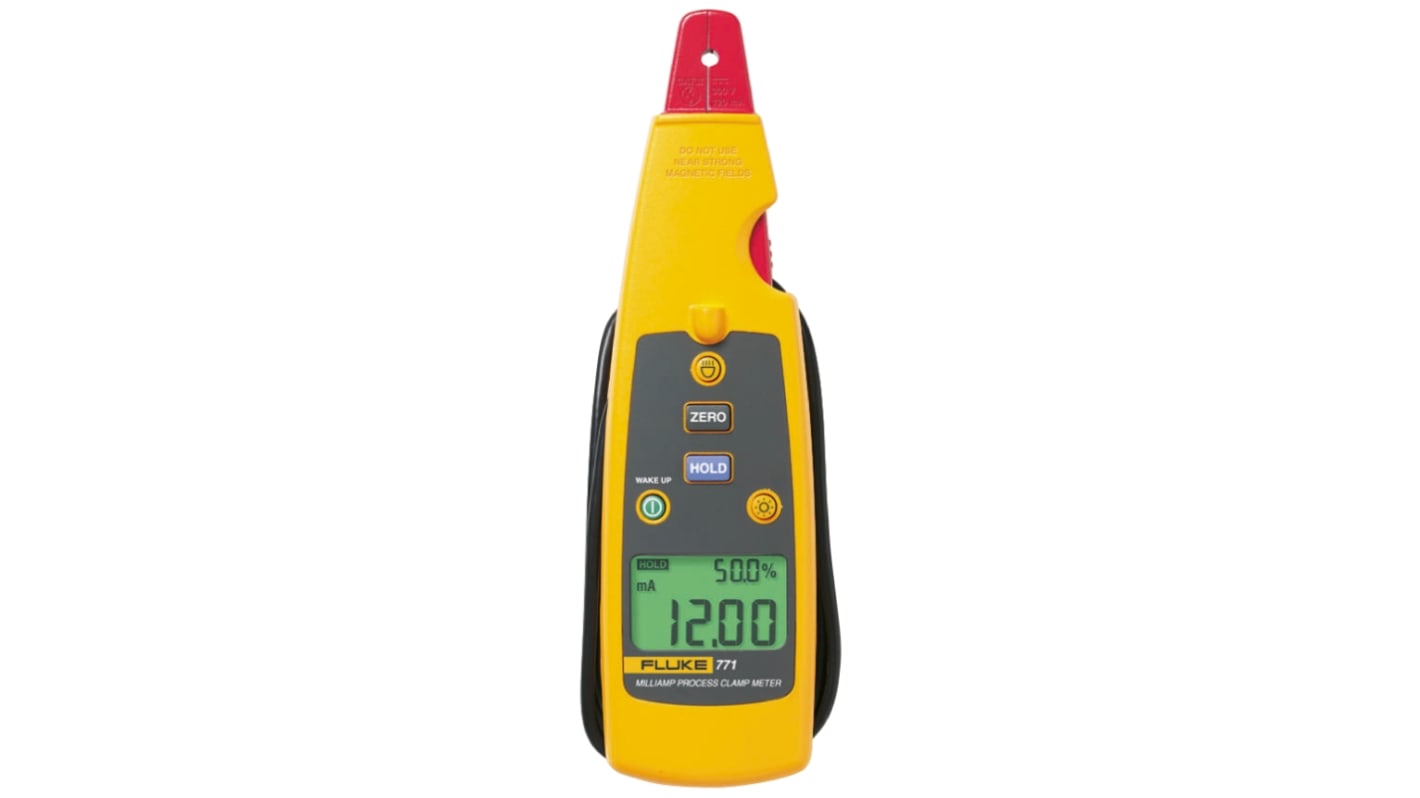

Fluke 771 Clamp Meter, 100 mA dc CAT II Non-Contact Voltage Detector

RS Stock No.:: 287-642
Distrelec Article No.:: 176-40-709
Mfr. Part No.:: FLUKE-771 APAC
Brand:: Fluke

Fluke 771 Clamp Meter, 100 mA dc CAT II Non-Contact Voltage Detector

Subtotal (1 unit)*

$1,462.00

(exc. GST)

$1,608.20

(inc. GST)

FREE delivery for orders over $80.00 ex GST

In Stock

16 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	$1,462.00

*price indicative

RS Stock No.:: 287-642
Distrelec Article No.:: 176-40-709
Mfr. Part No.:: FLUKE-771 APAC
Brand:: Fluke

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Product Type	Clamp Meter
	Maximum DC Current Measurement	100mA dc
	Model Number	771
	Maximum Jaw Opening	4.5mm
	DC Current Resolution	10μA
	AC Current Accuracy	1 % rdg + 5 Digits
	Minimum Operating Temperature	-10°C
	Clamp Meter Type	DC Current Clamp Meter
	DC Current Accuracy	±0.2 % rdg + 5 Digits
	Maximum Operating Temperature	50°C
	Width	59mm
	Weight	260g
	Standards/Approvals	EN 61326-1
	Length	212mm
	Height	38mm
	Functions Measured	Current
	Battery Life	20h
	Maximum Conductor Size	4.5mm
	Non-Contact Voltage Detector	Yes
	Power Source	Battery
	Battery Type	AA
	Safety Category Voltage	300V
	Safety Category Level	CAT II
	Display Type	LCD

	Select all
	Brand Fluke
	Product Type Clamp Meter
	Maximum DC Current Measurement 100mA dc
	Model Number 771
	Maximum Jaw Opening 4.5mm
	DC Current Resolution 10μA
	AC Current Accuracy 1 % rdg + 5 Digits
	Minimum Operating Temperature -10°C
	Clamp Meter Type DC Current Clamp Meter
	DC Current Accuracy ±0.2 % rdg + 5 Digits
	Maximum Operating Temperature 50°C
	Width 59mm
	Weight 260g
	Standards/Approvals EN 61326-1
	Length 212mm
	Height 38mm
	Functions Measured Current
	Battery Life 20h
	Maximum Conductor Size 4.5mm
	Non-Contact Voltage Detector Yes
	Power Source Battery
	Battery Type AA
	Safety Category Voltage 300V
	Safety Category Level CAT II
	Display Type LCD

RoHS Status: Exempt

COO (Country of Origin):: CN

Fluke Clamp Meter, 100mA Maximum DC Current Measurement, 4.5mm Maximum Jaw Opening - FLUKE 771

This clamp meter is a battery-powered instrument designed to measure DC current with an integrated non-contact voltage detector for Basic electrical checks in low-voltage environments. It operates within standard indoor temperature ranges and presents readings on an LCD for straightforward interpretation during routine inspection and troubleshooting.

Features and Benefits:

• Measures DC current with ±0.2% accuracy for precise readings
• Resolves down to 10μA to detect very small currents
• Maximum DC measurement 100mA dc for low-current circuits
• Jaw opening 4.5mm for use on small conductors
• Battery operation with 40h life for extended field use
• Conforms to EN 61326-1 ensuring electromagnetic compatibility

Applications

• Suitable for verifying low-current sensors and transducers
• Ideal for testing DC control circuits in panel work
• Used for fault-finding on small-gauge wiring runs
• Can be used for non-contact voltage checks during maintenance
• Useful for portable field diagnostics with AA battery power

What power source does it use?

It runs on two AA batteries providing portable operation.

What environmental temperatures can it tolerate?

It operates between -10°C and 50°C for typical site conditions.

What safety and voltage category applies?

It is rated to CAT II for 300 V applications.

What is the maximum conductor size the jaws will accept?

The jaw aperture accommodates conductors up to 4.5mm.

What display and operating time can I expect?

Readings appear on an LCD and the unit can operate for approximately 40 h on installed batteries.
