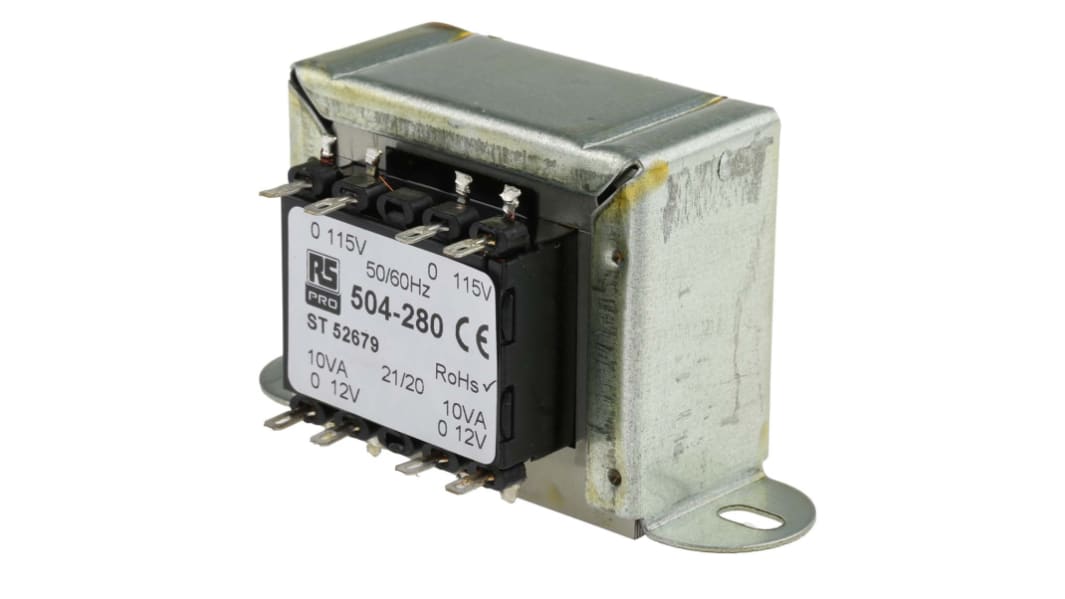

RS PRO 20VA 2 Output Chassis Mounting Transformer, 12V ac, IEC 61558-2-6

RS Stock No.:: 504-280
Brand:: RS PRO

RS PRO 20VA 2 Output Chassis Mounting Transformer, 12V ac, IEC 61558-2-6

1 / 6

Bulk discount available

Subtotal (1 unit)**

$66.01

(exc. GST)

$72.61

(inc. GST)

5 In AU stock for next working day delivery*

191 In Global stock for delivery within 10 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 - 9	$66.01
10 - 49	$64.18
50 +	$52.81

**price indicative

RS Stock No.:: 504-280
Brand:: RS PRO

Chassis Mount Clamp & Frame Construction 115/230Vac Primary Transformer

Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Two hole fixing wrap-over clamps 6 to 50VA
Multi-hole frame fixing 100VA
Solder tag terminations
Optional terminal shrouds
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742

RS PRO Chassis Mount Clamp & Frame Construction 115/230 V ac Mains Transformer

It has been over 100 years since the introduction of the first commercial Transformer when the mass production began. Since then, many additional modifications were developed to support various applications, such as electromagnetic, relays, pumps or heating elements.

.

The general concept of Chassis Mounting Transformers is around the usage of magnetic induction between coils to convert current and or voltage levels without changing the frequency.

Today, we are proudly introducing our own branded RS PRO Mains Transformer, packed in a chassis mount configuration. Our chassis type Mount Transformer provides a primary voltage rating of 115 V ac, 230 V ac and power rating of 20 VA for exceptional isolating qualities. The two separate secondary windings can be connected either in series or parallel to give a wide range of output voltage and current options.

Features and Benefits

The construction of our primary Mains provides double section bobbin fully shrouded

Our Chassis has a full varnish impregnation

Two-hole fixing wrap-over clamps of 6 VA to 50 VA

Multi-hole frame fixing of 100 VA

The Transformer has a solder tag termination

100% electrical and flash tested following BS3535 and EN 60742 regulations

Our Mains provide high efficiency with low regulation design

The magnetic field that links both primary and secondary windings

Applications

Chassis type has a variety of applications where the Mains Transformer is used, particularly in:

Electromagnetic applications

Electronic and electrical control systems

relays

Pumps

Speed changers

heating elements.

Why RS PRO?

RS PRO is our own-brand range of great-value products. Each part of every RS PRO product is stringently tested against demanding industry standards. We give it our seal of approval only when we're confident of exceptional quality. That's why RS PRO is trusted by engineers worldwide.

Note

Suitable transformer shrouds: 6 VA = 503-912 ; 12 & 20 VA = 504-004 ; 50, 75 & 100 VA = 503-928

Approvals

8888

Standards

BS3535; EN 60 742

Open Laminated Clamp & Frame 115-230Vac Primary 6VA to 100VA

Chassis mounting mains transformers with twin 115Va.c. 50/60Hz primary windings which may be connected in series for 230V or parallel for 115V operation. The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Primary Voltage Rating	115 V ac, 230V ac
	Secondary Voltage Rating	12V ac
	Power Rating	20VA
	Number of Outputs	2
	Mounting Type	Clamp Mount
	Primary Winding Resistance	57.5+62.5Ω
	Length	59mm
	Efficiency	80%
	Width	57mm
	Depth	50mm
	Dimensions	59 x 57 x 50mm
	Fixing Hole Diameter	4.7 x 8.7mm
	Weight	550g
	Minimum Operating Frequency	50Hz
	Maximum Operating Frequency	60Hz
	Standards Met	IEC 61558-2-6
	Maximum Temperature	(Ambient) 70°C
	Minimum Temperature	-30°C

	Select all
	Brand RS PRO
	Primary Voltage Rating 115 V ac, 230V ac
	Secondary Voltage Rating 12V ac
	Power Rating 20VA
	Number of Outputs 2
	Mounting Type Clamp Mount
	Primary Winding Resistance 57.5+62.5Ω
	Length 59mm
	Efficiency 80%
	Width 57mm
	Depth 50mm
	Dimensions 59 x 57 x 50mm
	Fixing Hole Diameter 4.7 x 8.7mm
	Weight 550g
	Minimum Operating Frequency 50Hz
	Maximum Operating Frequency 60Hz
	Standards Met IEC 61558-2-6
	Maximum Temperature (Ambient) 70°C
	Minimum Temperature -30°C
