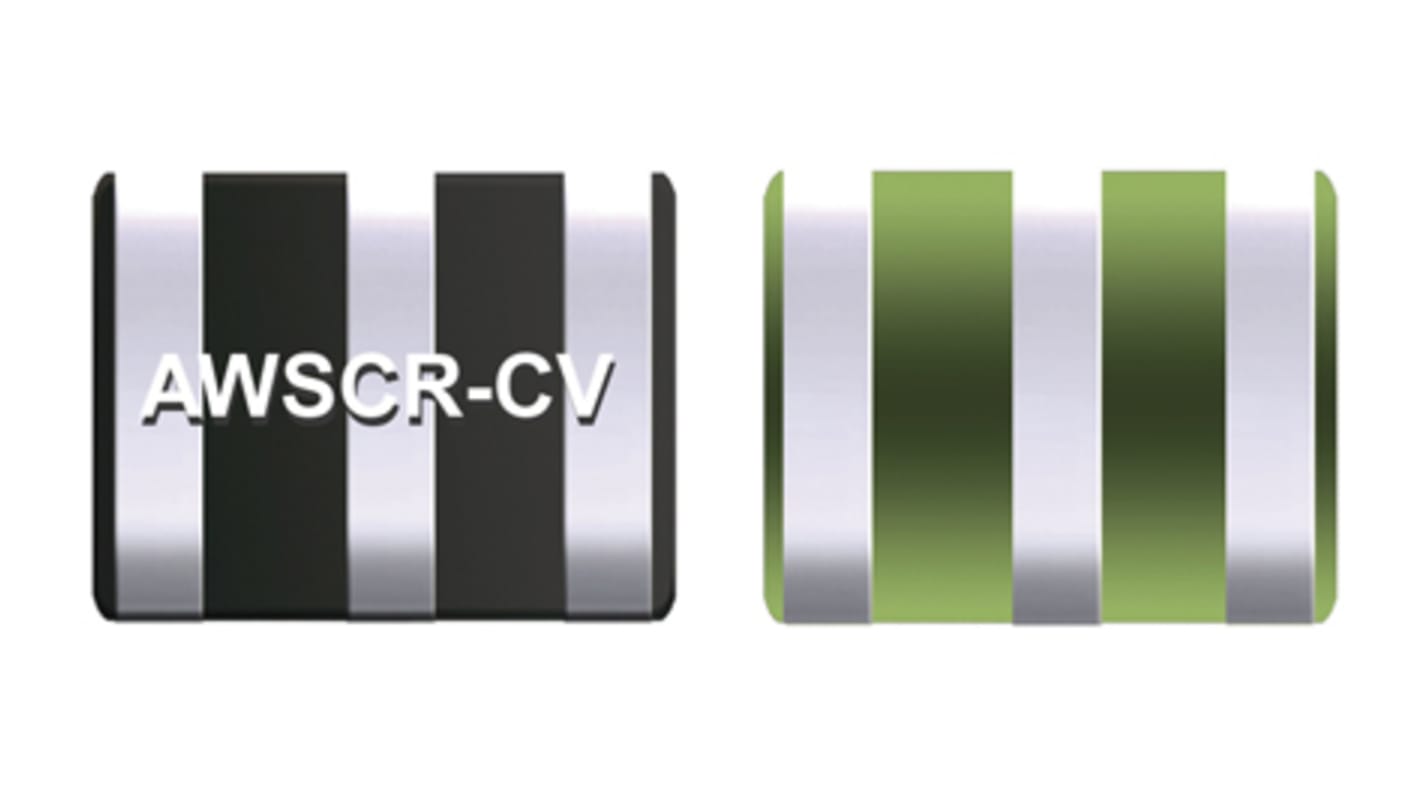

AWSCR-16.00CV-T, Ceramic Resonator, 16MHz 22pF, 3-Pin, 3.7 x 3.1 x 1mm

RS Stock No.:: 171-2360
Mfr. Part No.:: AWSCR-16.00CV-T
Brand:: Abracon

AWSCR-16.00CV-T, Ceramic Resonator, 16MHz 22pF, 3-Pin, 3.7 x 3.1 x 1mm

View this category

5000 In Global stock for delivery within 10 working day(s)

Added

View basket

Price (ex. GST) Each (On a Reel of 1000)

$0.385

(exc. GST)

$0.423

(inc. GST)

Units	Per unit	Per Reel*
1000 - 1000	$0.385	$385.00
2000 - 9000	$0.378	$378.00
10000 +	$0.341	$341.00
*price indicative

RS Stock No.:: 171-2360
Mfr. Part No.:: AWSCR-16.00CV-T
Brand:: Abracon

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Excellent environmental resistance
Low resonant impedance
High stability type
Reflow capable
Industrial grade
Built-in load capacitance
Remote controls, Microprocessor clocks, Mobile phones, DVD & CD-Roms, Electric appliances, Industrial controllers

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Resonance Frequency	16MHz
Frequency Tolerance	±0.5%
Load Capacitance	22pF
Resonance Resistance	40Ω
Frequency Ageing	±0.3%/Year
Frequency Stability	±0.3%
Mounting Type	Surface Mount
Pin Count	3
Dimensions	3.7 x 3.1 x 1mm
Height	1mm
Length	3.7mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Width	3.1mm
