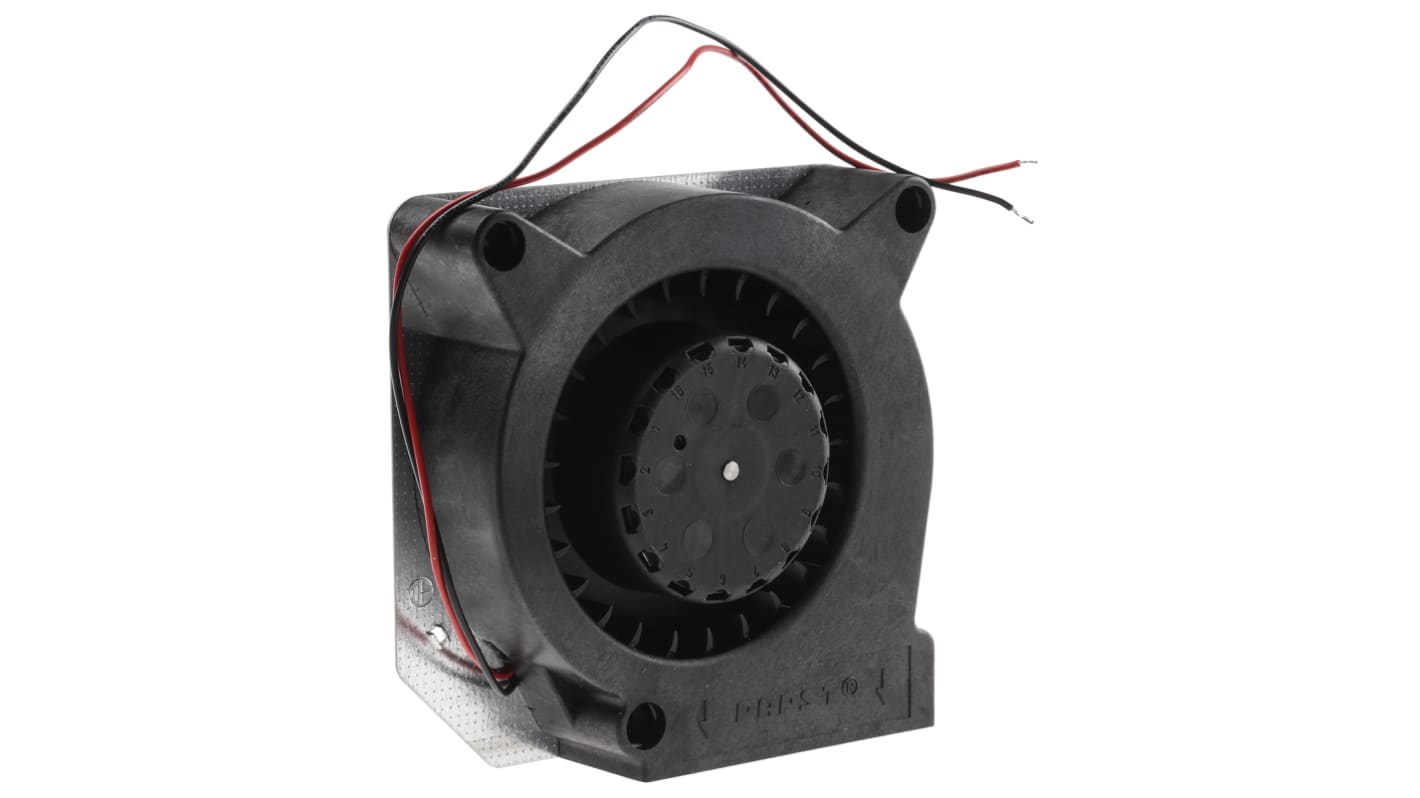

ebm-papst Centrifugal Fan 120.6 x 120.6 x 37.3mm, 40m³/h, 12 V dc DC (RL90 Series)

  • RS Stock No. 263-7834
  • Mfr. Part No. RL90-18/12N
  • Manufacturer ebm-papst
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): HU
Product Details

Flatpack Radial Fans

Designed for applications with limited space
Airflow is at right angles to the intake
High static pressure capabilities
Connections are wire ended
Locked rotor protection
Ball bearing type
High temperature low power operation

Approvals

UL; CSA; VDE

Approvals

UL; CSA; VDE

Specifications
Attribute Value
Supply Voltage 12 V dc
Blower Type Centrifugal
AC or DC Operation DC
Air Flow 40m³/h
Series RL90
Height 120.6mm
Width 120.6mm
Depth 37.3mm
Dimensions 120.6 x 120.6 x 37.3mm
Fan Speed 2500rpm
Noise Level 58dB
Bearing Type Ball
Mounting Hole Spacing 104.8 x 100.8mm
Commutation Type Electronic
Mounting Hole Diameter 4.2mm
Horizontal Hole Spacing 100.8mm
Vertical Hole Spacing 104.8mm
Direction of Curve Forward
77 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
Was $160.89
$ 150.82
(exc. GST)
$ 165.90
(inc. GST)
units
Per unit
1 - 9
$150.82
10 - 24
$145.52
25 - 49
$137.98
50 +
$130.45
