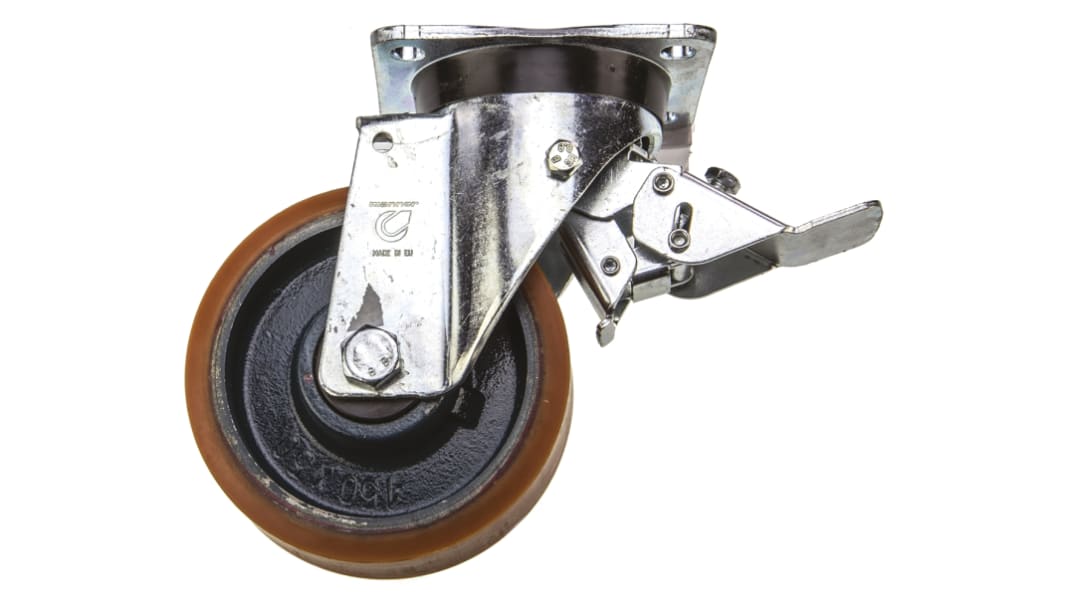

LAG Braked Swivel Castor Wheel, 700kg Capacity, 150mm Wheel

RS Stock No.:: 435-2658
Mfr. Part No.:: 23867 FV
Brand:: LAG

LAG Braked Swivel Castor Wheel, 700kg Capacity, 150mm Wheel

View all Castor Wheels

7 In Global stock for delivery within 10 working day(s)

Added

View basket

Price (ex. GST) Each

$227.36

(exc. GST)

$250.10

(inc. GST)

Units	Per unit
1 - 5	$227.36
6 - 11	$218.27
12 +	$209.18

RS Stock No.:: 435-2658
Mfr. Part No.:: 23867 FV
Brand:: LAG

Technical data sheets

Datasheet

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: IT

Product Details

Polyurethane Tyre, Cast Iron Hub, Heavy Duty, Series M40

Heavy duty castor, white zinc plated, top-plate mounting with a polyurethane tyred cast iron hub.

Central king-pin and self-locking nut
High resistance to abrasion, tearing, oils, petrol, greases etc
Wheels fitted with ball bearings
Temperature range -30°C to +80°C
Hardness 95+/-3 Shore A
Wheel series Z

Polyurethane tyred wheels have high tear strength and abrasion resistance which gives them a life of up to 10 times that of rubber under similar operating conditions. Polyurethane is able to carry loads approaching that of cast iron. Polyurethane has a lower tractive resistance than rubber for the same load so is better for manual handling of very heavy loads. Polyurethane is not affected by greases and mineral oils.

Specifications

Attribute	Value
Wheel Diameter	150mm
Load Capacity	700kg
Mounting Type	Plate
Includes Brake	Yes
Overall Height	203mm
Wheel Width	50mm
Rotation	Braked Swivel
Tyre Material	Polyurethane
Fixing Centres	105 x 80mm
Housing Material	Zinc Plated Steel
Fixing Plate Dimensions	135 x 110mm
Number of Fixing Holes	4
Fixing Hole Size	12mm
Weight Class	Heavy Duty
Hub Bearing Type	Ball Bearing
Hub Material	Cast Iron
