Eaton, 2P 3 Position 90° Rotary Cam Switch, 690V (Volts), 63A, Rotary Actuator
- RS Stock No.:
- 271-6089
- Mfr. Part No.:
- 094462 T5B-1-102/V/SVB-SW
- Brand:
- Eaton
On back order for despatch 13/09/2024, delivery within 10 working days from despatch date.
Price (ex. GST) Each
$290.31
(exc. GST)
$319.34
(inc. GST)
Units | Per unit |
|---|---|
| 1 + | $290.31 |
- RS Stock No.:
- 271-6089
- Mfr. Part No.:
- 094462 T5B-1-102/V/SVB-SW
- Brand:
- Eaton
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

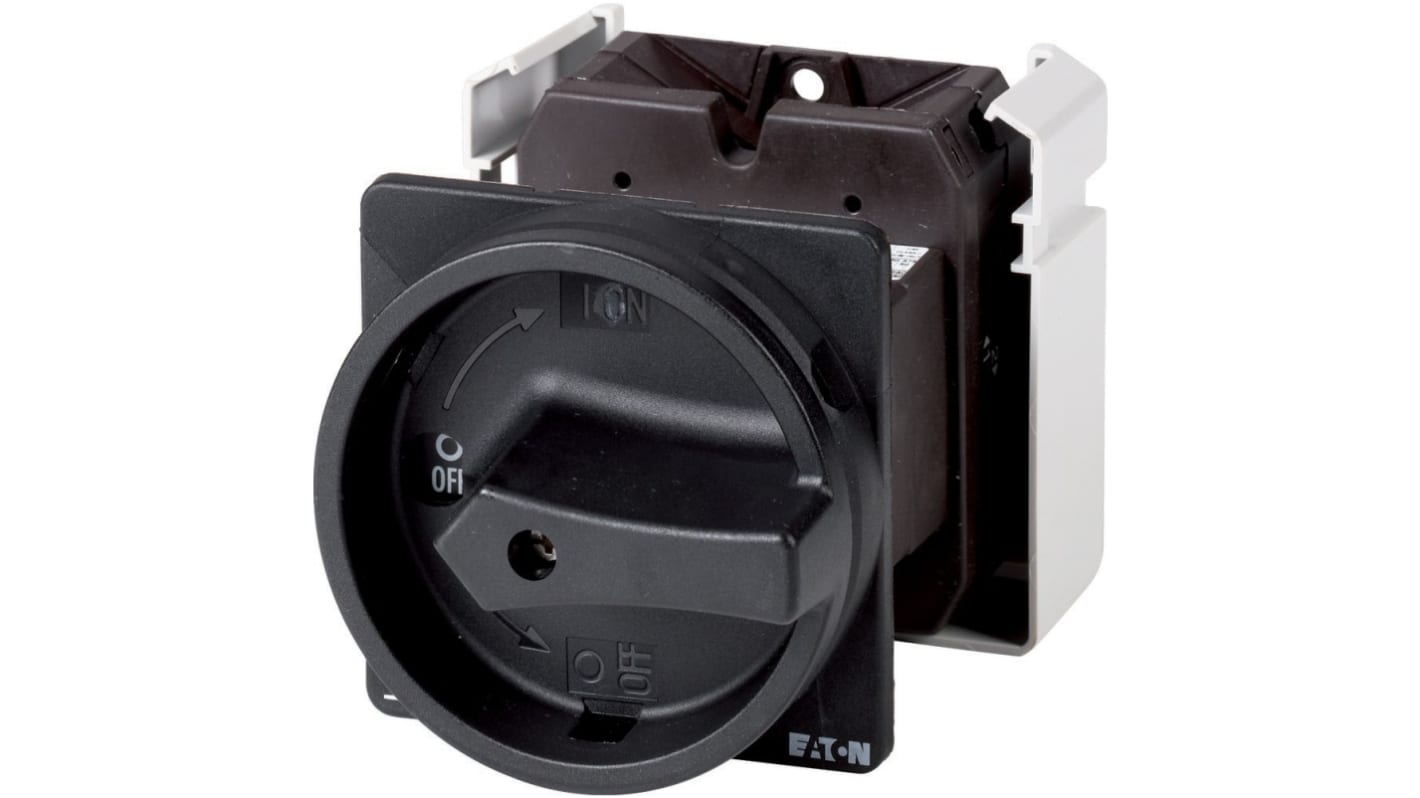

The Eaton Main switch can be used for many switching and control applications, for example as ON-OFF, main, main/control, or instrument switches. It has black rotary handle and locking ring.
Maintenance switch
Part group reference T5B
STOP function
Lockable in the 0 (Off) position
Part group reference T5B
STOP function
Lockable in the 0 (Off) position
Specifications
Attribute | Value |
|---|---|
| Series | Eaton Moeller Series T5B |
| Cam Switch Type | Rotary Cam Switch |
| Pole and Throw Configuration | 2P |
| Electrical Phase | 3 |
| Maximum Current | 63A |
| Maximum Voltage | 690V (Volts) |
| Number of Positions | 3 |
| Angle of Throw | 90° |
| Actuator Type | Rotary |
