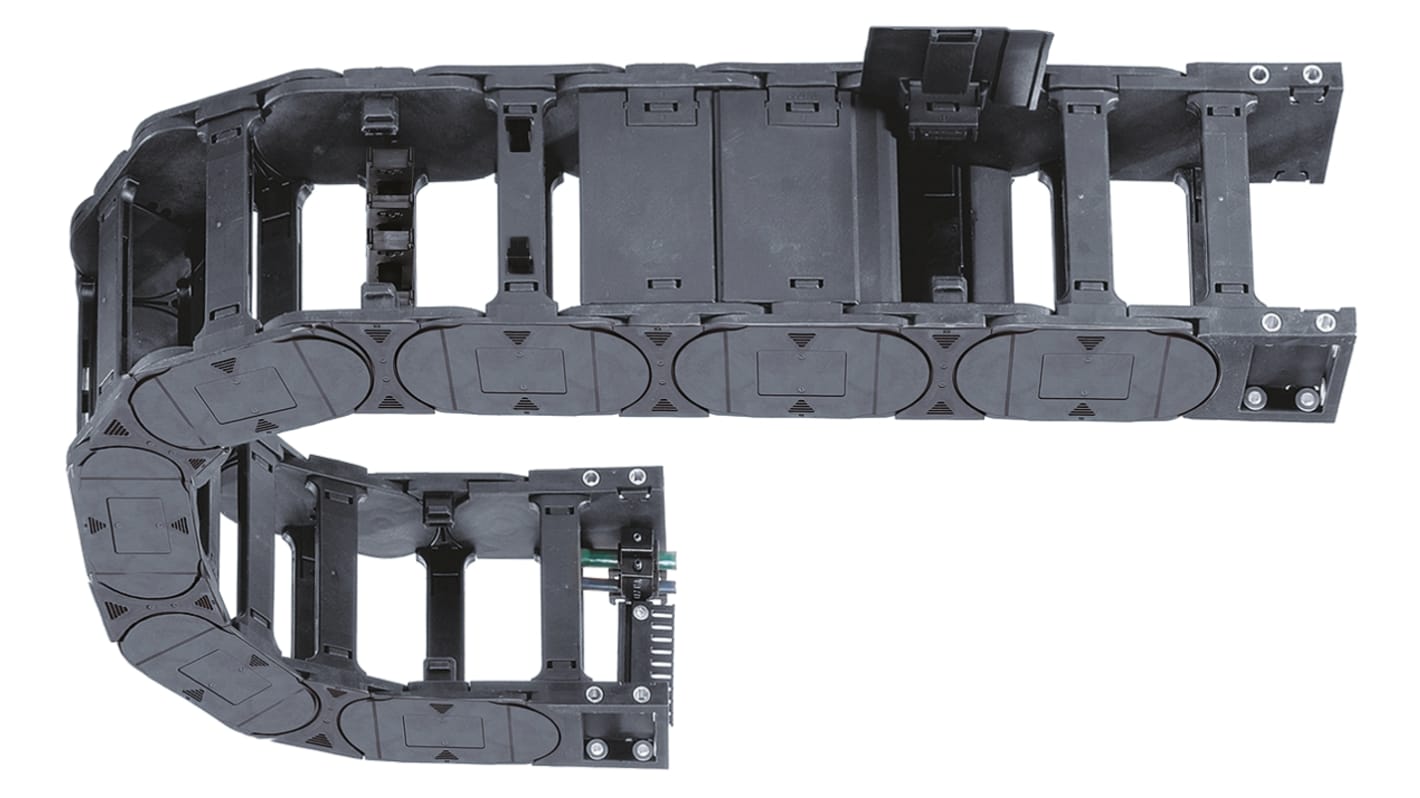

Igus E4.56, e-chain Black Cable Chain - Flexible Slot, W284 mm x D84mm, L1m, 250 mm Min. Bend Radius, Igumid G

RS Stock No.:: 814-2098
Mfr. Part No.:: E4.56.25.250.0
Brand:: Igus

Igus E4.56, e-chain Black Cable Chain - Flexible Slot, W284 mm x D84mm, L1m, 250 mm Min. Bend Radius, Igumid G

On back order for despatch 04/06/2024, delivery within 10 working days from despatch date.

Added

Price (ex. GST) Each

$445.49

(exc. GST)

$490.04

(inc. GST)

Units	Per unit
1 - 5	$445.49
6 +	$438.67

RS Stock No.:: 814-2098
Mfr. Part No.:: E4.56.25.250.0
Brand:: Igus

Technical data sheets

E Chain E4.56 Series Data Sheet

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

Energy Chain® - E4/1 (56 Series)

The igus E4-1 system combines all the benefits of its three predecessors in the E4 range. E4-1 cable carriers offer greater stability with the same or smaller dimensions while almost all the accessories and mounting brackets are the same. With igus® E4-1 cable chains, the service life of your application can be increased and costs significantly reduced.

Smooth, cable friendly interior surfaces
Low noise operation thanks to integrated brake on the radial stop dogs
Sound dampers available as an additional noise-reducing feature
Suitable for a wide range of applications
Numerous interior separation options available
Widths up to 2000 mm through extension links
To open on both sides
Max. travel distance: Over 200 m

Energy Chain® - E4/0 (56 Series)

Specifications

Attribute	Value
Width	284 mm
Depth	84mm
Trunking/Chain Type	Cable Chain
Colour	Black
Material	Igumid G
Length	1m
Slot Type	Flexible
Minimum Bend Radius	250 mm
Series	E4.56, e-chain
