Lapp SKINDICHT Series Metallic Nickel Plated Brass Cable Gland, M16 Thread, 5mm Min, 8mm Max, IP55

RS Stock No.:: 433-0838
Mfr. Part No.:: 52103310+52106800
Brand:: Lapp

Lapp SKINDICHT Series Metallic Nickel Plated Brass Cable Gland, M16 Thread, 5mm Min, 8mm Max, IP55

185 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each (In a Pack of 5)

$14.992

(exc. GST)

$16.491

(inc. GST)

Units	Per unit	Per Pack*
5 - 20	$14.992	$74.96
25 - 45	$14.81	$74.05
50 +	$14.464	$72.32
*price indicative

RS Stock No.:: 433-0838
Mfr. Part No.:: 52103310+52106800
Brand:: Lapp

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

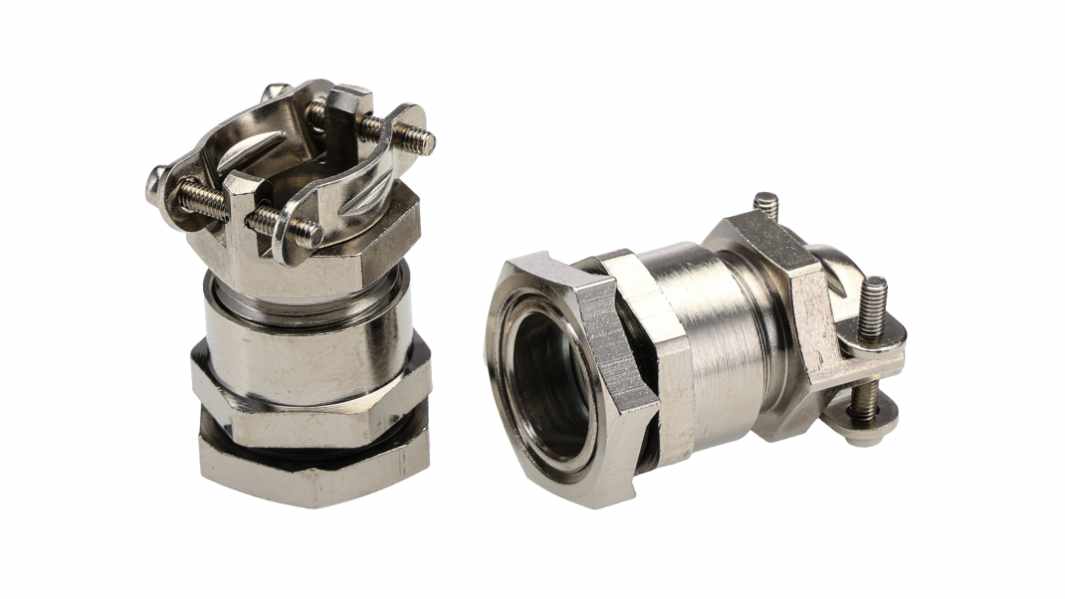

Lapp IP55 PG/Metric Strain Relief Gland

The Lapp IP55 Skindicht SKZ cable glands are equipped with two solid brass saddle clamps that guarantee reliable strain relief.

The nickel plated brass, double saddle clamp arrangement accommodates a wide range of cables, which are clamped concentrically.

Features and Benefits

Resistant to corrosion and the effects of sea water

High mechanical stability and strain relief

Wide clamping range

Operating temperature from -20° to +80°C

Typical Applications

These glands are suitable for applications on connectors, switches and consoles in harsh application conditions.

Supplied with

Lock nut

Specifications

Attribute	Value
Thread Size	M16
Maximum Cable Diameter	8mm
Minimum Cable Diameter	5mm
Material	Nickel Plated Brass
Colour	Metallic
Series	SKINDICHT
IP Rating	IP55
Locknut Included	Yes
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-30°C
Reference	SKINDICHT
