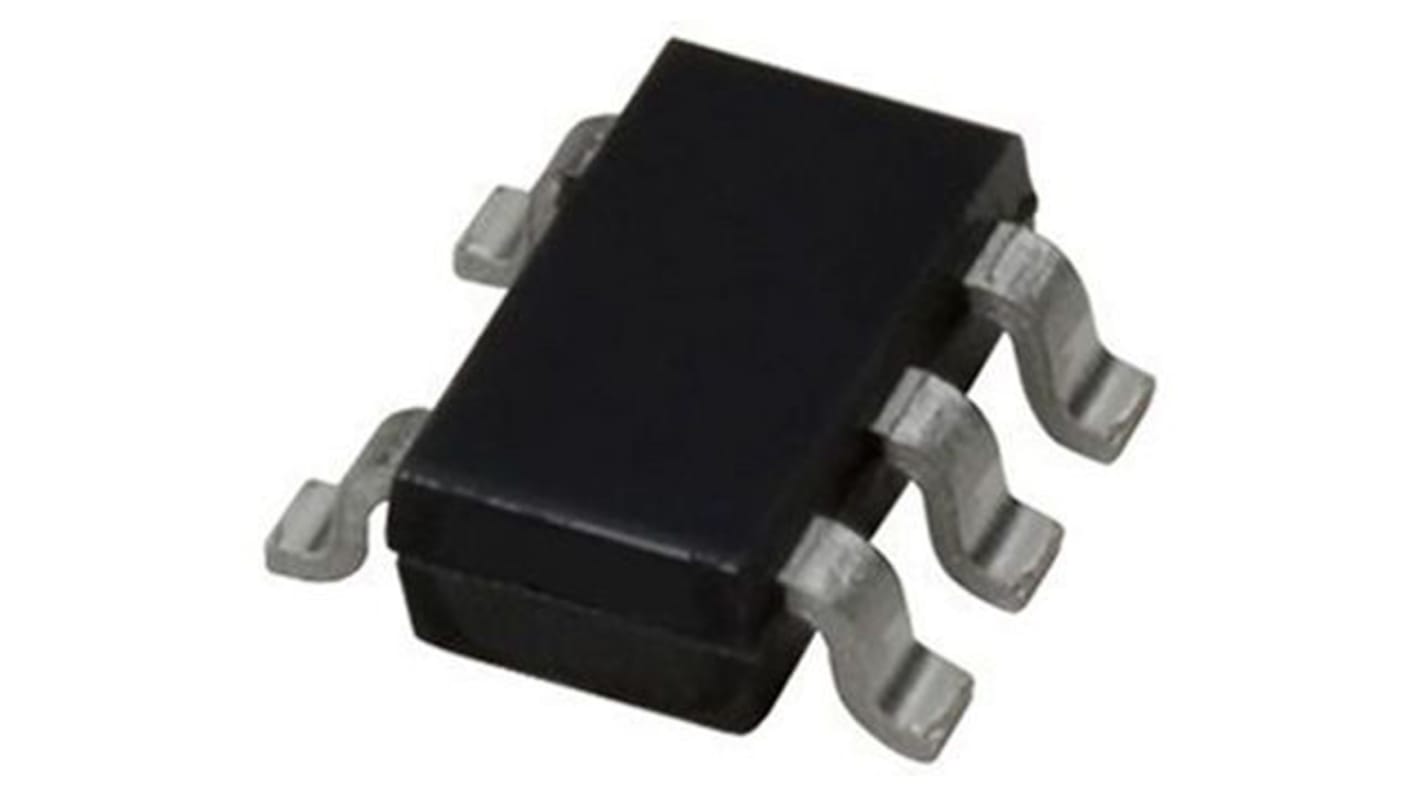

Texas Instruments SN74LVC1T45DCKR, 1 Bus Transceiver, , 1-Bit Non-Inverting LVTTL, 6-Pin SC-70

RS Stock No.:: 922-2385
Mfr. Part No.:: SN74LVC1T45DCKR
Brand:: Texas Instruments

Texas Instruments SN74LVC1T45DCKR, 1 Bus Transceiver, , 1-Bit Non-Inverting LVTTL, 6-Pin SC-70

24000 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each (On a Reel of 3000)

$0.457

(exc. GST)

$0.503

(inc. GST)

Units	Per unit	Per Reel*
3000 - 12000	$0.457	$1,371.00
15000 +	$0.442	$1,326.00
*price indicative

RS Stock No.:: 922-2385
Mfr. Part No.:: SN74LVC1T45DCKR
Brand:: Texas Instruments

Technical data sheets

ESD Control Selection Guide V1

Legislation and Compliance

COO (Country of Origin):: TH

Product Details

74LVC Family Bus Transceivers, Texas Instruments

Texas Instruments range of Bus Transceivers from the 74LVC Family of Low-voltage CMOS Logic ICs. The 74LVC Family use silicon gate CMOS technology and is designed to operate at 3.3V, allowing a significant reduction in power consumption when compared to 5V systems.

Operating Voltage: 1.65 to 3.6V
5V tolerant inputs
Compatibility: Input LVTTL/TTL, Output LVCMOS
Latch-up performance exceeds 250 mA per JESD 17
ESD protection exceeds JESD 22

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

74LVC Family

Specifications

Attribute	Value
Logic Family	74LVC
Logic Function	Bus Transceiver
Number of Elements per Chip	1
Number of Channels per Chip	1
Polarity	Non-Inverting
Mounting Type	Surface Mount
Package Type	SC-70
Pin Count	6
Input Level	CMOS, LVTTL
Output Level	LVTTL
Maximum High Level Output Current	-32mA
Maximum Low Level Output Current	32mA
Maximum Propagation Delay Time @ Maximum CL	3.9 ns @ 5 V
Minimum Operating Supply Voltage	1.65 V
Width	1.4mm
Propagation Delay Test Condition	15pF
Height	1mm
Dimensions	2.15 x 1.4 x 1mm
Maximum Operating Temperature	+85 °C
Length	2.15mm
Maximum Operating Supply Voltage	5.5 V
Minimum Operating Temperature	-40 °C
