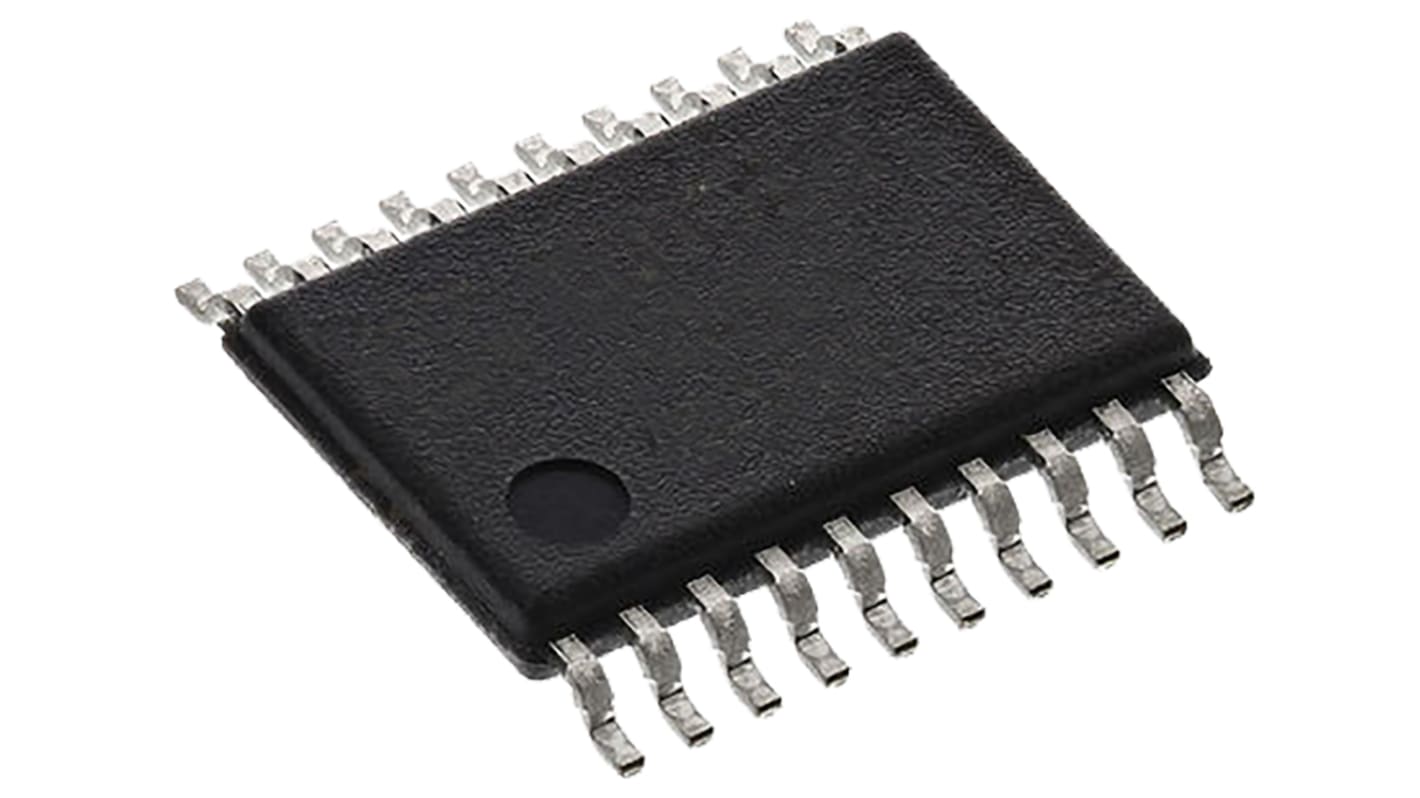

Toshiba TC74VCX245FT, 1 Bus Transceiver, 8-Bit Non-Inverting CMOS, 20-Pin TSSOP
- RS Stock No.:
- 601-4689
- Mfr. Part No.:
- TC74VCX245FT
- Brand:
- Toshiba
Bulk discount available
Subtotal (1 pack of 5 units)**
$6.51
(exc. GST)
$7.16
(inc. GST)
500 In Global stock for delivery within 5 working day(s)*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Real time qty checker
Units | Per unit | Per Pack** |
|---|---|---|
| 5 - 20 | $1.302 | $6.51 |
| 25 - 120 | $1.254 | $6.27 |
| 125 + | $1.198 | $5.99 |
**price indicative
- RS Stock No.:
- 601-4689
- Mfr. Part No.:
- TC74VCX245FT
- Brand:
- Toshiba
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Logic Family | VCX | |
| Logic Function | Bus Transceiver | |
| Number of Elements per Chip | 1 | |
| Number of Channels per Chip | 8 | |
| Polarity | Non-Inverting | |
| Mounting Type | Surface Mount | |
| Package Type | TSSOP | |
| Pin Count | 20 | |
| Input Level | CMOS | |
| Output Level | CMOS | |
| Maximum High Level Output Current | -24mA | |
| Maximum Low Level Output Current | 24mA | |
| Maximum Propagation Delay Time @ Maximum CL | 8.4 ns @ 1.8 V | |
| Dimensions | 6.5 x 4.4 x 1mm | |
| Minimum Operating Supply Voltage | 1.2 V | |
| Propagation Delay Test Condition | 30pF | |
| Height | 1mm | |
| Minimum Operating Temperature | -40 °C | |
| Width | 4.4mm | |
| Maximum Operating Supply Voltage | 3.6 V | |
| Maximum Operating Temperature | +85 °C | |
| Length | 6.5mm | |
Select all | ||
|---|---|---|
Brand Toshiba | ||
Logic Family VCX | ||
Logic Function Bus Transceiver | ||
Number of Elements per Chip 1 | ||
Number of Channels per Chip 8 | ||
Polarity Non-Inverting | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Pin Count 20 | ||
Input Level CMOS | ||
Output Level CMOS | ||
Maximum High Level Output Current -24mA | ||
Maximum Low Level Output Current 24mA | ||
Maximum Propagation Delay Time @ Maximum CL 8.4 ns @ 1.8 V | ||
Dimensions 6.5 x 4.4 x 1mm | ||
Minimum Operating Supply Voltage 1.2 V | ||
Propagation Delay Test Condition 30pF | ||
Height 1mm | ||
Minimum Operating Temperature -40 °C | ||
Width 4.4mm | ||
Maximum Operating Supply Voltage 3.6 V | ||
Maximum Operating Temperature +85 °C | ||
Length 6.5mm | ||
