Toshiba TC74AC245F(F), 1 Bus Transceiver, 8-Bit Non-Inverting CMOS, 20-Pin SOP
- RS Stock No.:
- 541-9948
- Mfr. Part No.:
- TC74AC245F(F)
- Brand:
- Toshiba

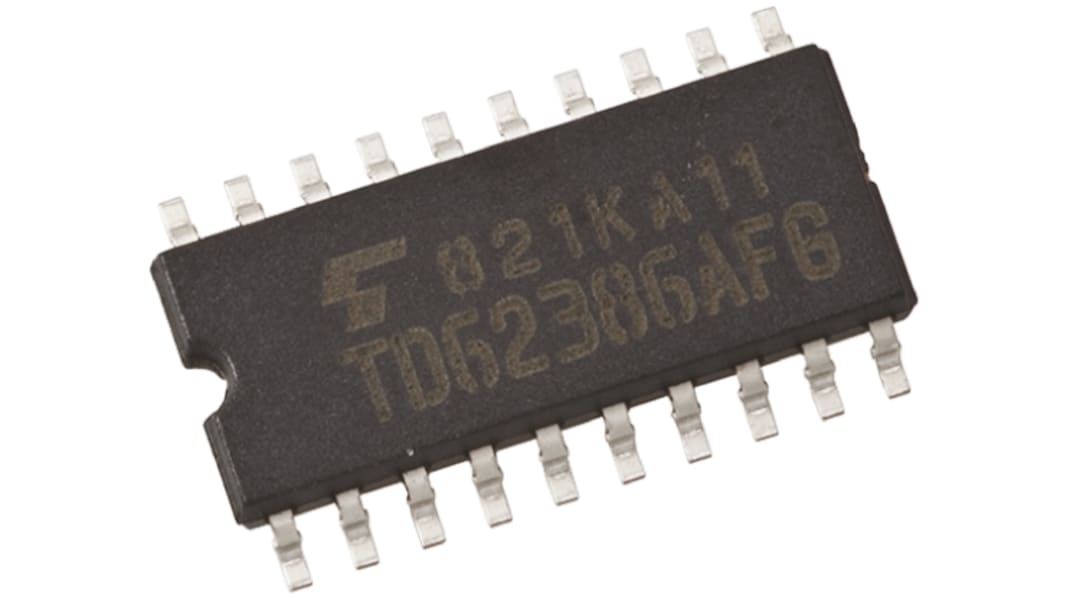

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
$6.93
(exc. GST)
$7.625
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | $1.386 | $6.93 |
| 25 - 120 | $1.346 | $6.73 |
| 125 - 245 | $1.306 | $6.53 |
| 250 + | $1.268 | $6.34 |
*price indicative
- RS Stock No.:
- 541-9948
- Mfr. Part No.:
- TC74AC245F(F)
- Brand:
- Toshiba
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Logic Family | AC | |
| Logic Function | Bus Transceiver | |
| Number of Elements per Chip | 1 | |
| Number of Channels per Chip | 8 | |
| Polarity | Non-Inverting | |
| Mounting Type | Surface Mount | |
| Package Type | SOP | |
| Pin Count | 20 | |
| Input Level | CMOS | |
| Output Level | CMOS | |
| Maximum High Level Output Current | -24mA | |
| Maximum Low Level Output Current | 24mA | |
| Maximum Propagation Delay Time @ Maximum CL | 10.9 ns @ 3.3 V | |
| Height | 1.5mm | |
| Dimensions | 12.8 x 5.3 x 1.5mm | |
| Minimum Operating Temperature | -40 °C | |
| Minimum Operating Supply Voltage | 2 V | |
| Width | 5.3mm | |
| Maximum Operating Temperature | +85 °C | |
| Length | 12.8mm | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Propagation Delay Test Condition | 50pF | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Logic Family AC | ||
Logic Function Bus Transceiver | ||
Number of Elements per Chip 1 | ||
Number of Channels per Chip 8 | ||
Polarity Non-Inverting | ||
Mounting Type Surface Mount | ||
Package Type SOP | ||
Pin Count 20 | ||
Input Level CMOS | ||
Output Level CMOS | ||
Maximum High Level Output Current -24mA | ||
Maximum Low Level Output Current 24mA | ||
Maximum Propagation Delay Time @ Maximum CL 10.9 ns @ 3.3 V | ||
Height 1.5mm | ||
Dimensions 12.8 x 5.3 x 1.5mm | ||
Minimum Operating Temperature -40 °C | ||
Minimum Operating Supply Voltage 2 V | ||
Width 5.3mm | ||
Maximum Operating Temperature +85 °C | ||
Length 12.8mm | ||
Maximum Operating Supply Voltage 5.5 V | ||
Propagation Delay Test Condition 50pF | ||
- COO (Country of Origin):
- JP
TC74AC Series 1, Toshiba
Process: CMOS
Mains voltage: 2 to 5.5 V
Mains voltage: 2 to 5.5 V
74AC Family
