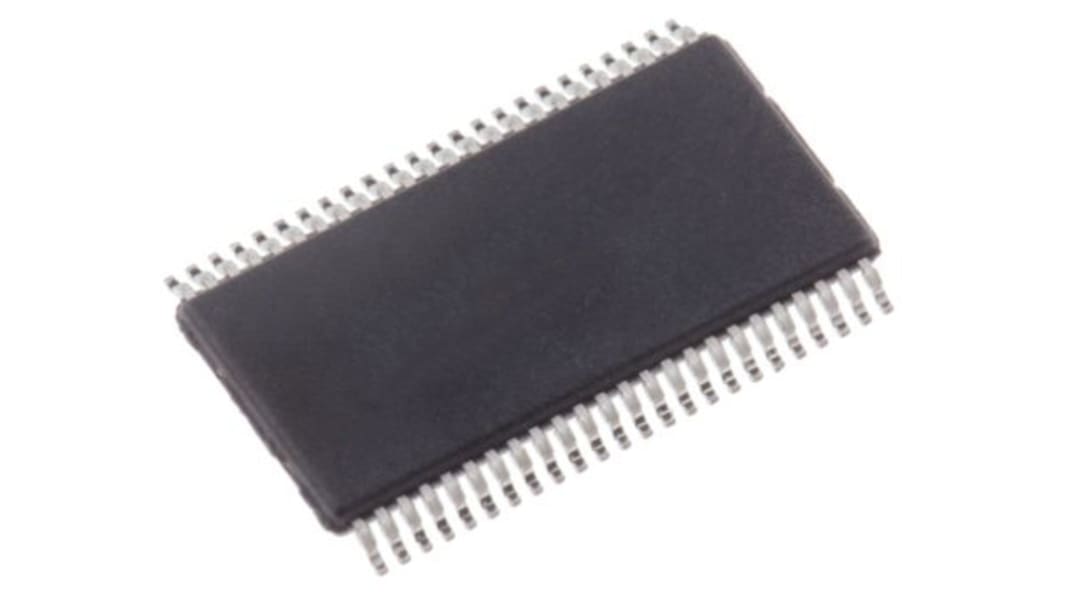

Name: Renesas Electronics 74FCT163245CPAG, Quad Bus Transceiver, 16-Bit
Brand: Renesas Electronics
SKU: 249-4395
Price: 4.98 AUD
Availability: BackOrder

The Renesas Electronics 74FCT163245 16-bit high-speed, low-power transceivers are ideal for asynchronous communication between two buses. The direction and output enable controls are designed to operate these devices as either two independent 8-bit transceivers or one 16-bit transceiver. The 74FCT163245 operates at -40C to +85C.

A and C speeds
Typical tSK(o) (Output Skew) < 250ps
ESD > 2000V per MIL-STD-883, Method 3015
> 200V using machine model (C = 200pF, R = 0)
VCC = 3.3V ± 0.3V, Normal Range, or VCC = 2.7V to 3.6V, Extended Range
CMOS power levels (0.4 uW typ. static)
Rail-to-rail output swing for increased noise margin
Low Ground Bounce (0.3V typ.)
Inputs (except I/O) can be driven by 3.3V or 5V components
Available in 48 pin SSOP, TSSOP, and TVSOP packages

Units	Per unit	Per Pack**
5 - 5	$4.53	$22.65
10 - 20	$4.094	$20.47
25 - 95	$3.844	$19.22
100 - 245	$3.264	$16.32
250 +	$3.052	$15.26

Select all	Attribute	Value
	Brand	Renesas Electronics
	Logic Family	CBT
	Logic Function	Universal Bus Transceiver
	Number of Elements per Chip	4
	Number of Channels per Chip	16

	Select all
	Brand Renesas Electronics
	Logic Family CBT
	Logic Function Universal Bus Transceiver
	Number of Elements per Chip 4
	Number of Channels per Chip 16

Renesas Electronics 74FCT163245CPAG, Quad Bus Transceiver, 16-Bit
