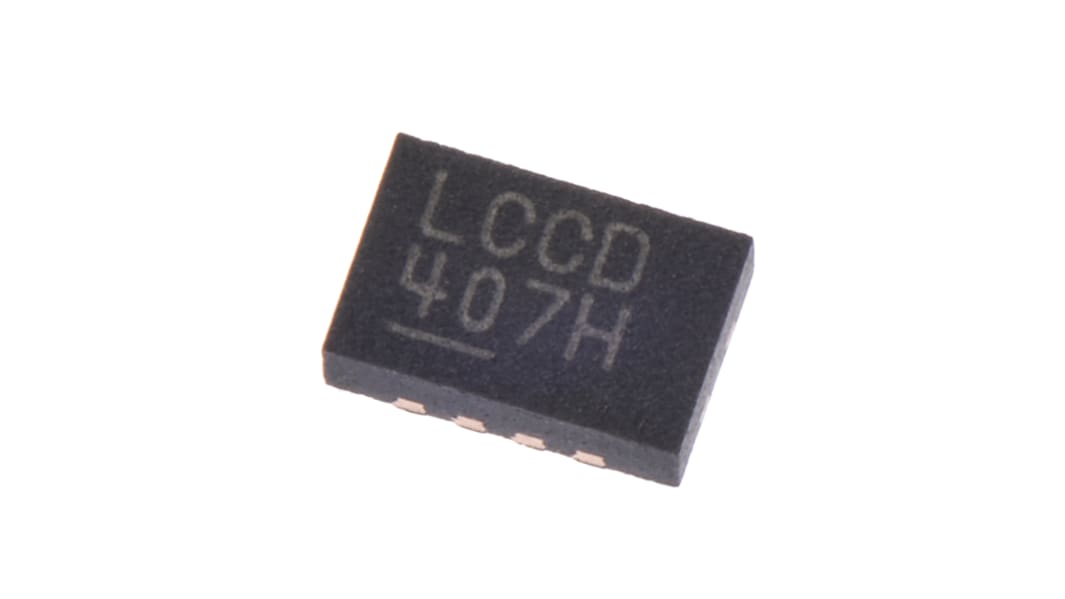

Analog Devices LT3494EDDB#TRMPBF, Boost Converter, Boost Converter 27mA Adjustable, Selectable, 50 kHz 8-Pin, DFN

RS Stock No.:: 761-8730
Mfr. Part No.:: LT3494EDDB#TRMPBF
Brand:: Analog Devices

Analog Devices LT3494EDDB#TRMPBF, Boost Converter, Boost Converter 27mA Adjustable, Selectable, 50 kHz 8-Pin, DFN

216 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$7.60

(exc. GST)

$8.36

(inc. GST)

Units	Per unit
1 +	$7.60

RS Stock No.:: 761-8730
Mfr. Part No.:: LT3494EDDB#TRMPBF
Brand:: Analog Devices

Technical data sheets

LT3494/LT3494A, Micropower Low Noise Boost Converters with Output Disconnect

Legislation and Compliance

Product Details

Display Drivers, Linear Technology

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Regulator Function	Boost Converter
Maximum Output Current	27mA
Maximum Input Voltage	16 V
Number of Outputs	1
Mounting Type	Surface Mount
Package Type	DFN
Pin Count	8
Output Type	Adjustable, Selectable
Maximum Switching Frequency	50 kHz
Switching Regulator	Yes
Dimensions	3 x 2 x 0.75mm
Maximum Output Voltage	40 V
Height	0.75mm
Maximum Operating Temperature	+80 °C
Minimum Operating Temperature	-40 °C
Length	3mm
Minimum Output Voltage	0 V
Minimum Input Voltage	2.3 V
Width	2mm
