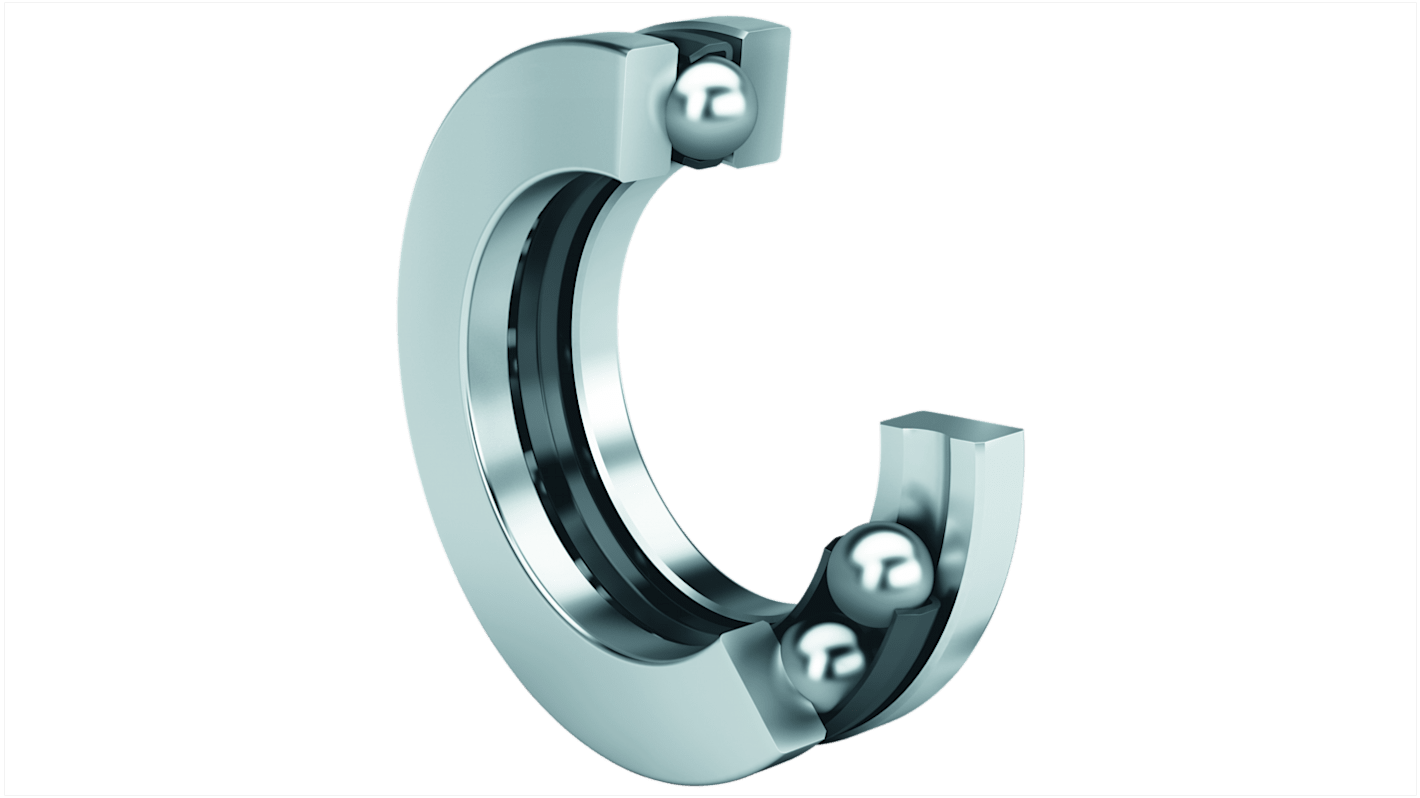

FAG 51204 Thrust Ball Bearing- Open Type 20mm I.D, 40mm O.D

RS Stock No.:: 260-0414
Mfr. Part No.:: 51204
Brand:: FAG

FAG 51204 Thrust Ball Bearing- Open Type 20mm I.D, 40mm O.D

View all Ball Bearings

Subtotal (1 unit)**

$32.16

(exc. GST)

$35.38

(inc. GST)

14 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 +	$32.16

**price indicative

RS Stock No.:: 260-0414
Mfr. Part No.:: 51204
Brand:: FAG

Schaeffler 1 Extra Light Thrust Series Ball Bearing, 20mm Inside Diameter, 40mm Outside Diameter - 51204

This axial deep groove ball bearing is designed for various applications within the mechanical and automation industries. The 51204 ball bearing features an inner diameter of 20mm and an outer diameter of 40mm, providing a robust solution for thrust loading requirements. Constructed from steel, this open type bearing combines durability with efficiency, making it suitable for single-direction applications.

Features & Benefits

• Designed as a thrust ball bearing for axial loads
• Offers a basic dynamic load rating of 21.1 kN
• Capable of withstanding a static load rating of 37.5 kN
• Built with an open type design for easy maintenance
• Single-row configuration allows for compact installation
• Functions effectively in a temperature range of -30 °C to 150 °C

Applications

• Used in industrial machinery requiring axial load support
• Suitable for in electrical drive systems
• Employed in automotive components where space is limited
• Applied in robotics for smooth motion control
• Utilised in conveyor systems to handle thrust loads easily

What is the significance of the load ratings for this component?

The basic dynamic load rating of 21.1 kN indicates the maximum load the bearing can sustain while in motion, while the static load rating of 37.5 kN represents the maximum load it can bear while stationary, ensuring performance under expected operating conditions.

How does the operating temperature range affect functionality?

The operating temperature range of -30 °C to 150 °C makes this bearing suitable for diverse environments, allowing it to function effectively, whether in extreme cold or heat, enhancing its versatility in various applications.

What maintenance should be performed on this bearing?

Regular inspections should be conducted to check for wear and tear, and it should be kept free of contaminants. Since it is an open type bearing, periodic lubrication will enhance longevity and performance.

How does the bearing clearance code impact installation?

The CN clearance code signifies normal clearance, which is designed for general applications, ensuring proper fit and function within the designated operational parameters for effective load handling.

What type of machinery typically uses this ball bearing?

This ball bearing is commonly found in industrial machinery, automated systems, and various electric motor applications, where precise axial load management is essential for efficient operation.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	FAG
	Inside Diameter	20mm
	Outside Diameter	40mm
	Race Width	14mm
	Ball Bearing Type	Thrust Ball Bearing
	Sealing Arrangement	Open Type
	Bearing Clearance	CN
	Material	Steel
	Ball Material	Steel
	Cage Material	Steel
	Number of Rows	1
	Static Load Rating	37.5kN
	Dynamic Load Rating	21.1kN
	Bore Type	Parallel
	Clearance Code	CN
	Bearing Series	1 Extra Light Thrust
	Partial Bearing Code	51204
	Race Type	Plain

	Select all
	Brand FAG
	Inside Diameter 20mm
	Outside Diameter 40mm
	Race Width 14mm
	Ball Bearing Type Thrust Ball Bearing
	Sealing Arrangement Open Type
	Bearing Clearance CN
	Material Steel
	Ball Material Steel
	Cage Material Steel
	Number of Rows 1
	Static Load Rating 37.5kN
	Dynamic Load Rating 21.1kN
	Bore Type Parallel
	Clearance Code CN
	Bearing Series 1 Extra Light Thrust
	Partial Bearing Code 51204
	Race Type Plain
