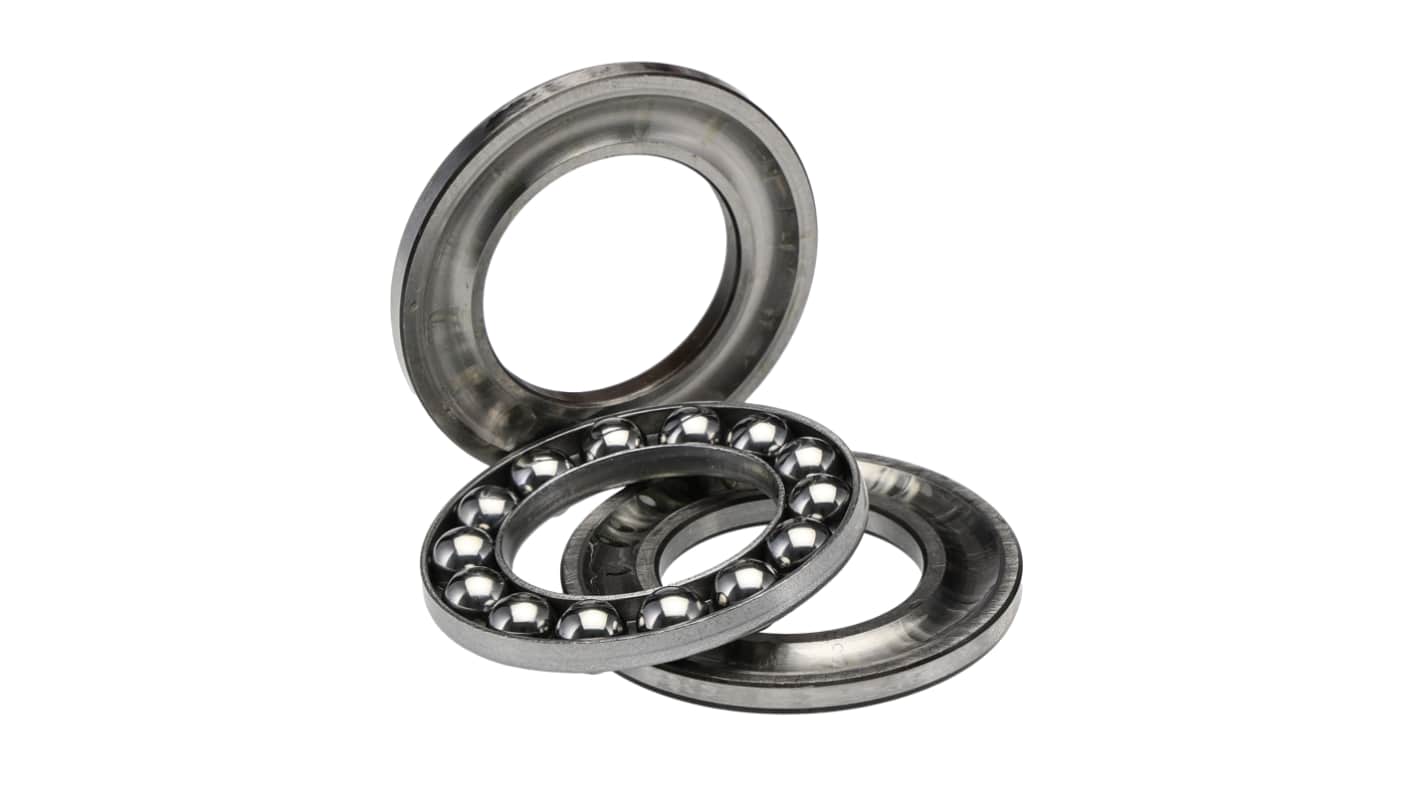

FAG 51104 Thrust Ball Bearing- Open Type 20mm I.D, 35mm O.D

RS Stock No.:: 137-1510
Mfr. Part No.:: 51104
Brand:: FAG

FAG 51104 Thrust Ball Bearing- Open Type 20mm I.D, 35mm O.D

View all Ball Bearings

Bulk discount available

Subtotal (1 unit)**

$17.97

(exc. GST)

$19.77

(inc. GST)

2 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 - 12	$17.97
13 - 24	$17.72
25 +	$17.40

**price indicative

RS Stock No.:: 137-1510
Mfr. Part No.:: 51104
Brand:: FAG

Axial Deep Groove Ball Bearings

FAG from Schaeffler axial deep groove ball bearings comprise of shaft locating washers, housing locating washers and ball and cage assemblies. The bearings are not self-retaining; the ball and cage assembly and bearing washers can therefore be fitted independently of each other.

Features and Benefits

• Lower operating costs

• Reduced maintenance due to improved lubrication

• Lower heat generation

• Less noise

Product Application Information

Axial deep groove ball bearings can support high axial forces but must not be subjected to radial loads.

Schaeffler 1 Extra Light Thrust Series Ball Bearing, 20mm Inside Diameter, 35mm Outside Diameter - 51104

This ball bearing is an open type thrust ball bearing suitable for various applications. Manufactured by Schaeffler, it features an inside diameter of 20mm and an outside diameter of 35mm, with a race width of 10mm. It is designed to handle axial loads efficiently, making it ideal for precision machinery in the mechanical and automation industries.

Features & Benefits

• Designed for thrust load applications to improve reliability
• Single row design provides high load capacity
• Steel construction offers durability and resistance to wear
• Open type construction enables easy maintenance and cleaning
• Operating clearance classified as CN optimises fit in machinery
• Capable of bearing dynamic loads up to 15 kN

Applications

• Utilised in the assembly and disassembly of machinery components
• Effective in vertical axis rotations in various mechanical setups
• Suitable for in industrial automation equipment
• Used with electronic devices requiring precise axial support

How does the design of this thrust ball bearing contribute to its performance?

The single row design allows it to accommodate axial loads efficiently while maintaining minimal friction, resulting in smoother operation under load conditions. This is particularly beneficial in applications where space is limited.

What is the significance of the open type in this bearing's design?

The open type allows for easy inspection and lubrication, which is crucial for maintaining optimal performance and extending the service life in demanding environments where contamination may occur.

Can this bearing handle overload situations?

While it is rated for a dynamic load of 15 kN, exceeding this limit can lead to premature failure. It is essential to select appropriate bearings based on the specific load requirements of your application to avoid such issues.

FAG

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	FAG
	Inside Diameter	20mm
	Outside Diameter	35mm
	Race Width	10mm
	Ball Bearing Type	Thrust Ball Bearing
	Sealing Arrangement	Open Type
	Bearing Clearance	CN
	Material	Steel
	Ball Material	Steel
	Cage Material	Steel
	Number of Rows	1
	Static Load Rating	26.5kN
	Dynamic Load Rating	15kN
	Clearance Code	CN
	Bore Type	Parallel
	Bearing Series	1 Extra Light Thrust
	Race Type	Plain
	Partial Bearing Code	51104

	Select all
	Brand FAG
	Inside Diameter 20mm
	Outside Diameter 35mm
	Race Width 10mm
	Ball Bearing Type Thrust Ball Bearing
	Sealing Arrangement Open Type
	Bearing Clearance CN
	Material Steel
	Ball Material Steel
	Cage Material Steel
	Number of Rows 1
	Static Load Rating 26.5kN
	Dynamic Load Rating 15kN
	Clearance Code CN
	Bore Type Parallel
	Bearing Series 1 Extra Light Thrust
	Race Type Plain
	Partial Bearing Code 51104
