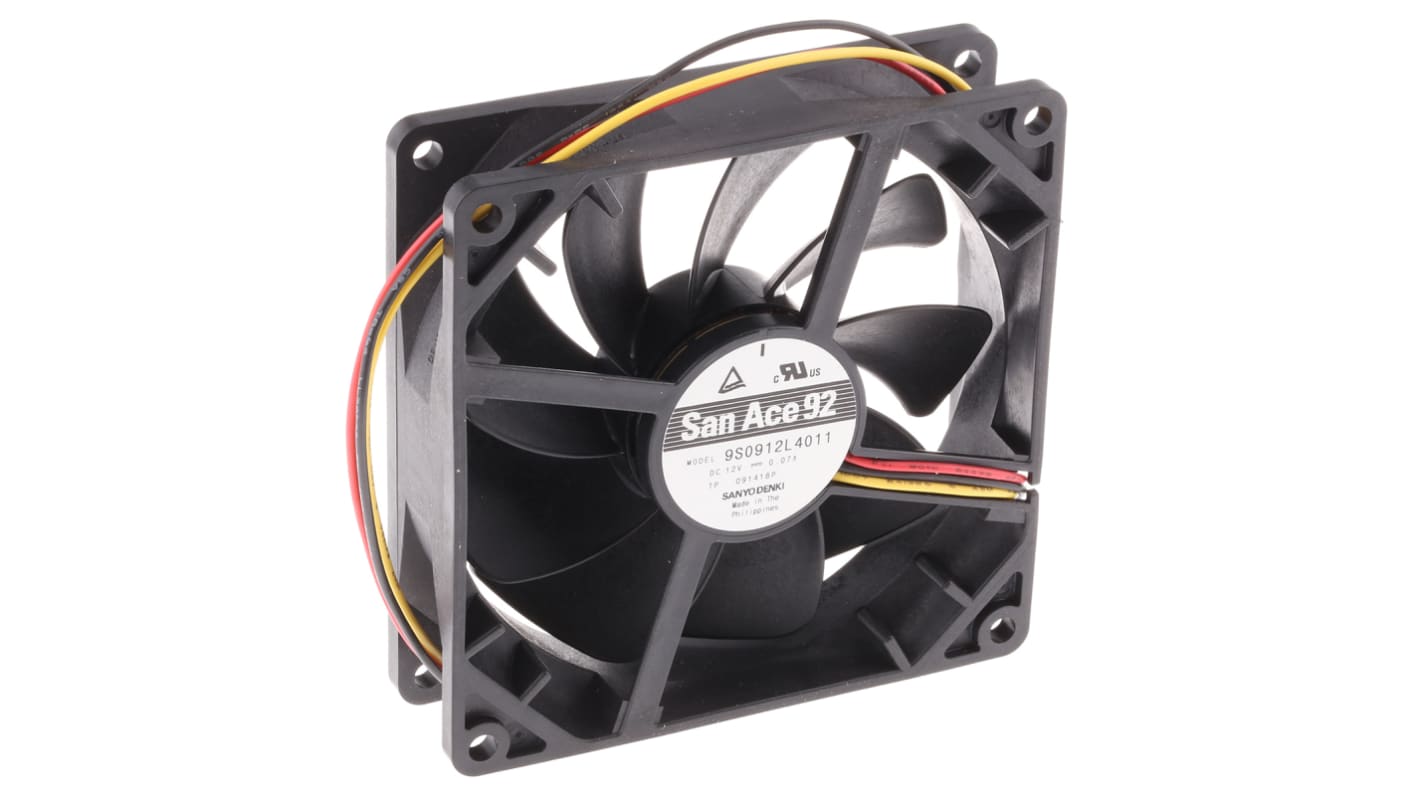

Sanyo Denki San Ace 9S Series Axial Fan, 12 V dc, DC Operation, 49.8m³/h, 840mW, 70mA Max, 92 x 92 x 25mm

RS Stock No.:: 751-1526
Mfr. Part No.:: 9S0912L4011
Brand:: Sanyo Denki

Sanyo Denki San Ace 9S Series Axial Fan, 12 V dc, DC Operation, 49.8m³/h, 840mW, 70mA Max, 92 x 92 x 25mm

39 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$23.63

(exc. GST)

$25.99

(inc. GST)

Units	Per unit
1 - 4	$23.63
5 - 9	$23.35
10 - 24	$22.83
25 - 49	$22.23
50 +	$21.66

RS Stock No.:: 751-1526
Mfr. Part No.:: 9S0912L4011
Brand:: Sanyo Denki

Technical data sheets

Legislation and Compliance

Product Details

San Ace Silent DC Fans - S Series

Sanyo Denki San Ace silent DC fans are the lowest audible noise ball bearing DC fans available, with a reduction of up to -6dB when compared to standard fans. San Ace silent DC fans also feature excellent airflow and static pressure performance due to a new impeller and motor design.

50% reduction in vibration with precision dual ball bearing motor and fan blade balancing
Reduced switching noise at low speed compared to other DC fans
3rd wire pulse sensor for monitoring fan speed as standard
Airflow and noise level specification guaranteed over the life of the fan
Life at 40°C ambient 67,000 hours continuous operation (fan mounted in any position)
ECO product

Approvals

UL, CSA, TUV

Specifications

Attribute	Value
Supply Voltage	12 V dc
AC or DC Operation	DC
Height	92mm
Width	92mm
Power Consumption	840mW
Depth	25mm
Maximum Current	70mA
Termination Type	Lead Wire
Air Flow	49.8m³/h
Dimensions	92 x 92 x 25mm
Noise Level	17dB
Fan Speed	1750rpm
Sensor Type	Tachometer
Bearing Type	Ball
