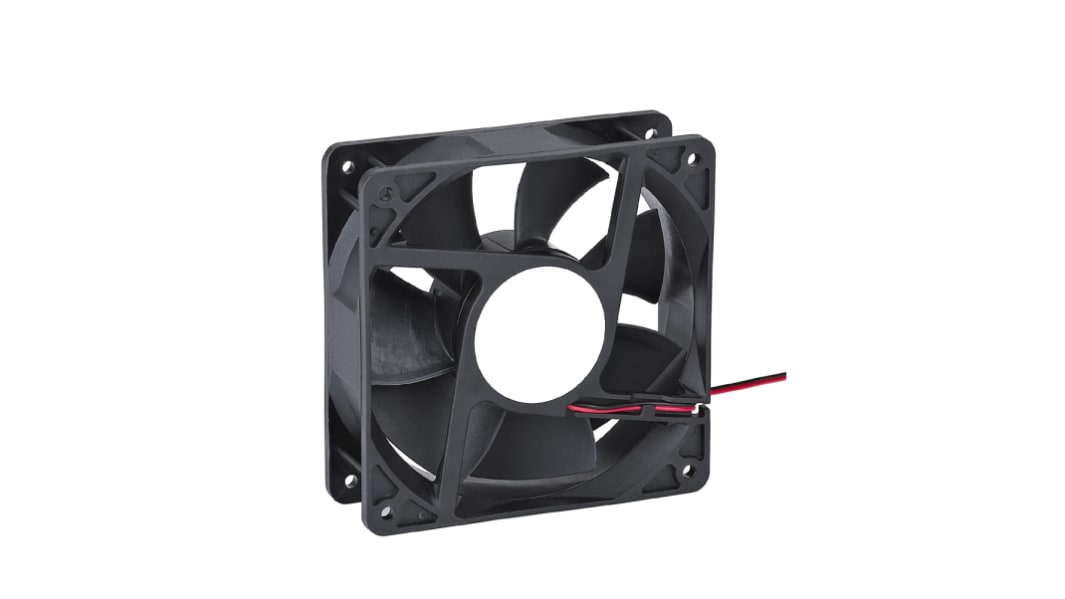

RS PRO Axial Fan, 24 V dc, DC Operation, 2.35m³/min, 5.52W, 230mA Max, IP20, 120 x 120 x 25mm

RS Stock No.:: 255-7268
Brand:: RS PRO

RS PRO Axial Fan, 24 V dc, DC Operation, 2.35m³/min, 5.52W, 230mA Max, IP20, 120 x 120 x 25mm

1 / 2

Bulk discount available

Subtotal (1 unit)**

$43.50

(exc. GST)

$47.85

(inc. GST)

3 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 - 9	$43.50
10 - 99	$41.77
100 +	$34.81

**price indicative

RS Stock No.:: 255-7268
Brand:: RS PRO

RS PRO DC Operation 24 Vdc 5.5 W Axial Fan 120 x 120 x 25 mm

From RS PRO we offer you a DC Motor Operation black plastic Axial Fan complete with UL1007 300 mm length wire connection. The Axial fan is extremely efficient and hard wearing as is uses ball bearings to ensure a smooth operation plus is cost effective with an operating life of at least 50,000 hours at 40°C. Excellent air flow and speed, easy mounting, versatile cooling solution and quick wire connection are just a small number of the benefits supplied by the RS PRO Axial Fan.

Features & Benefits

DC Axial fan

Made from black plastic

Square shaped

Ball bearing, 50,000 hours at 40°C

Operating temperature range -10°C to +70°C

Fan speed 2900 RPM

Rated current of 0.23 A

Wire connection length 300 mm

UL1007, 24 AWG Wire connection

Mounting hole diameter 4.4 mm

CE, UKCA, RoHS Certified

Applications

Various cooling applications

Network communications

Server racks

Electrical cabinets and enclosures

Information technology equipment

What are Axial fans?

Axial fans are used across all industries where the cooling of components or machinery is important. Fans work by drawing air in an axial direction across a surface to cool it or to push hot air away to cool it. This is essential in everyday items such as a desktop PC, where the axial fan would cool down the processor to ensure the computer would continue to operate smoothly. Overheating concerns apply to most electronic or engineering applications, and so axial fans are needed.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Approvals

CE, UKCA, RoHS

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Supply Voltage	24 V dc
	AC or DC Operation	DC
	Height	120mm
	Width	120mm
	Power Consumption	5.52W
	Maximum Current	230mA
	Depth	25mm
	Dimensions	120 x 120 x 25mm
	Air Flow	2.35m³/min
	Termination Type	Wire
	Noise Level	49dB
	Fan Speed	2900rpm
	Direction of Curve	Forward
	Bearing Type	Ball
	IP Rating	IP20

	Select all
	Brand RS PRO
	Supply Voltage 24 V dc
	AC or DC Operation DC
	Height 120mm
	Width 120mm
	Power Consumption 5.52W
	Maximum Current 230mA
	Depth 25mm
	Dimensions 120 x 120 x 25mm
	Air Flow 2.35m³/min
	Termination Type Wire
	Noise Level 49dB
	Fan Speed 2900rpm
	Direction of Curve Forward
	Bearing Type Ball
	IP Rating IP20
