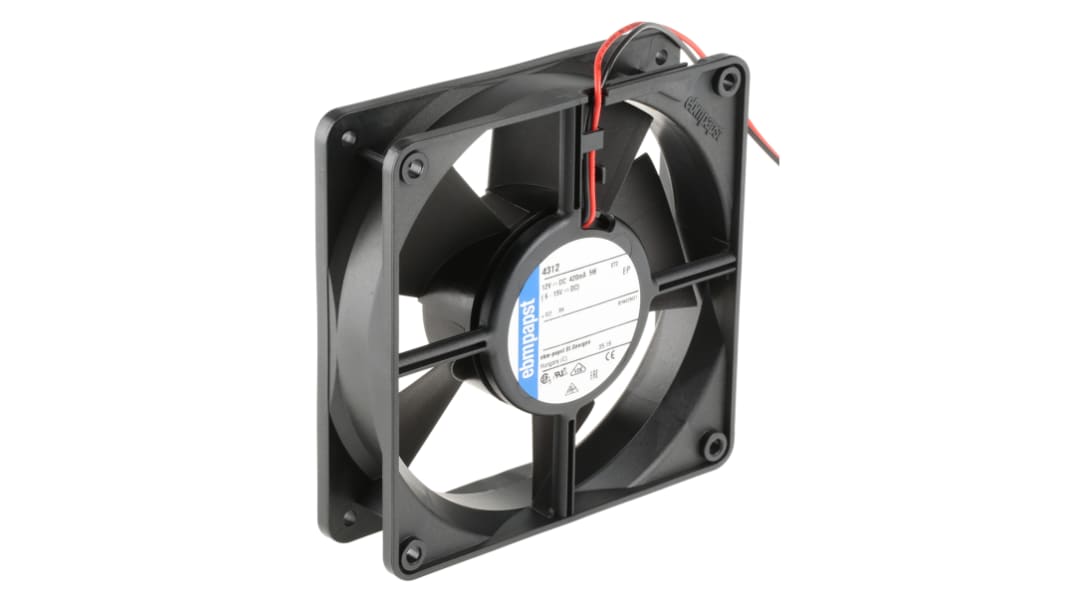

ebm-papst 4300 Series Axial Fan, 119 x 119 x 32mm, 170m³/h, 5W, 12 V dc

  • RS Stock No. 504-928
  • Mfr. Part No. 4312
  • Manufacturer ebm-papst
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): HU
Product Details

ebm-papst High Performance Ball Bearing Fans

ebm-papst high performance ball bearing fans are an ideal soultion to a wide range of applications, featuring fibreglass-reinforced plastic and completely integrated electronic commutation.

Material: fibreglass-reinforced plastic
Fully integrated electronic commutation
Protected against reverse polarity and locking
Connected via single strands AWG 24, TR 64. Bared and tin-plated.

Approvals

UL; CSA; VDE

Specifications
Attribute Value
Supply Voltage 12 V dc
Dimensions 119 x 119 x 32mm
Height 119mm
AC or DC Operation DC
Power Consumption 5W
Width 119mm
Depth 32mm
Maximum Current 420mA
Air Flow 170m³/h
Noise Level 45dB
Fan Speed 2800rpm
Bearing Type Ball
Series 4300
11 : Next working day (AU stock)
50 : 5 working days (Global stock)
Price (ex. GST) Each
$ 57.90
(exc. GST)
$ 63.69
(inc. GST)
units
Per unit
1 - 4
$57.90
5 - 9
$56.74
10 - 24
$55.03
25 - 49
$52.83
50 +
$51.25
