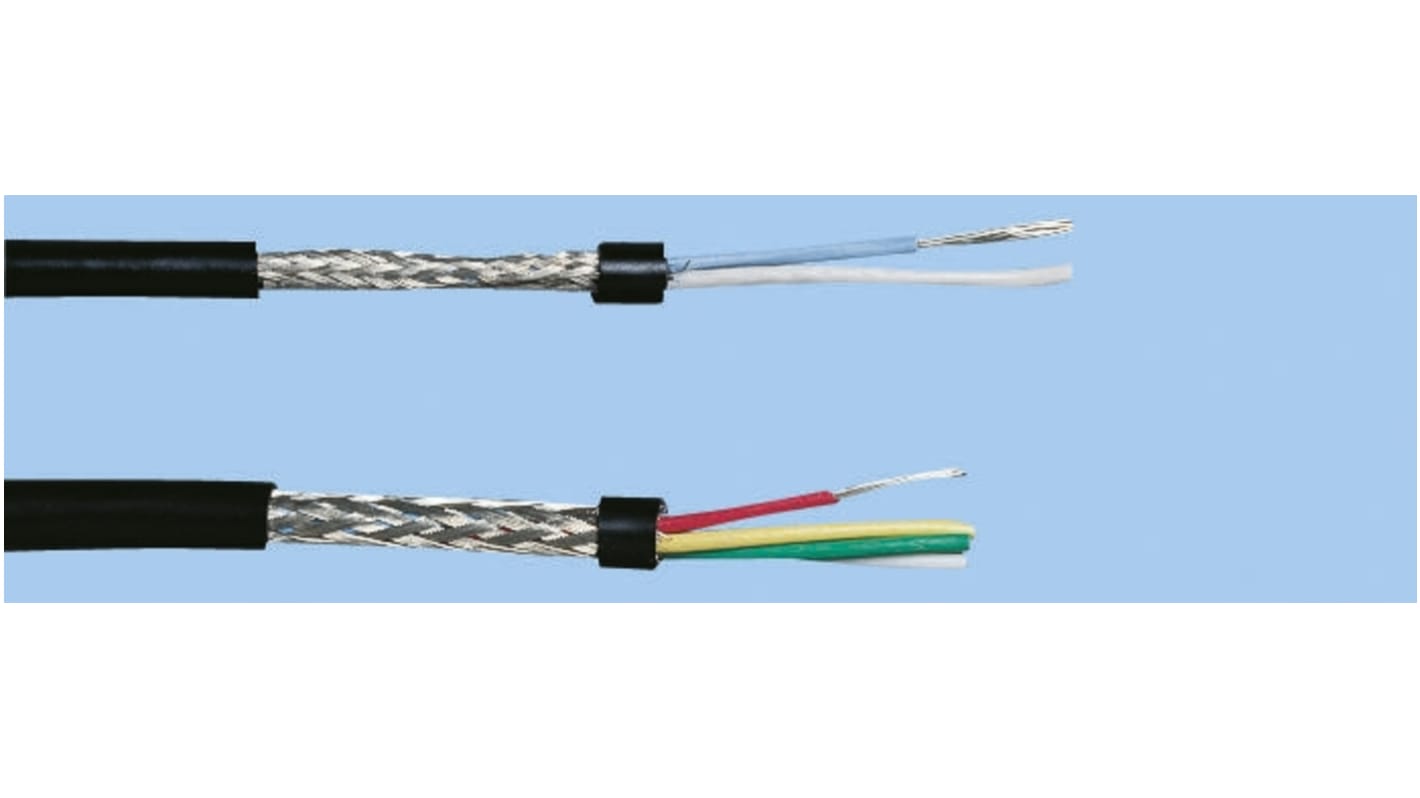

Nexans 5 Core Microphone Cable, 0.22 mm² CSA Screened, 4.8mm od, 100m, Black
- RS Stock No.:
- 399-9688
- Mfr. Part No.:
- 10037791
- Brand:
- Nexans
Discontinued product
- RS Stock No.:
- 399-9688
- Mfr. Part No.:
- 10037791
- Brand:
- Nexans
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexans | |
| Audio Cable Type | Microphone Cable | |
| Number of Cores | 5 | |
| Cross Sectional Area | 0.22 mm² | |
| Screened/Unscreened | Screened | |
| Insulation Material | PVC | |
| Outer Diameter | 4.8mm | |
| Length | 100m | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +80°C | |
| Sheath Colour | Black | |
| American Wire Gauge | 24 AWG | |
| Voltage Rating | 250 V | |
| Conductor Material | Copper | |
| Core Strands | 7/0.2 mm | |
| Conductor Strand Type | Stranded | |
| Number of Strands | 7 | |
| Size of Strands | 0.2 mm | |
| Cable Shape | Multicore | |
| Sheath Material | PVC | |
| Screen Type | Tinned Copper Braid | |
Select all | ||
|---|---|---|
Brand Nexans | ||
Audio Cable Type Microphone Cable | ||
Number of Cores 5 | ||
Cross Sectional Area 0.22 mm² | ||
Screened/Unscreened Screened | ||
Insulation Material PVC | ||
Outer Diameter 4.8mm | ||
Length 100m | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Sheath Colour Black | ||
American Wire Gauge 24 AWG | ||
Voltage Rating 250 V | ||
Conductor Material Copper | ||
Core Strands 7/0.2 mm | ||
Conductor Strand Type Stranded | ||
Number of Strands 7 | ||
Size of Strands 0.2 mm | ||
Cable Shape Multicore | ||
Sheath Material PVC | ||
Screen Type Tinned Copper Braid | ||
