RS PRO 2 Core, 0.25 mm² CSA Screened, 3.5mm od, 100m, Red

RS Stock No.:: 214-9605
Brand:: RS PRO

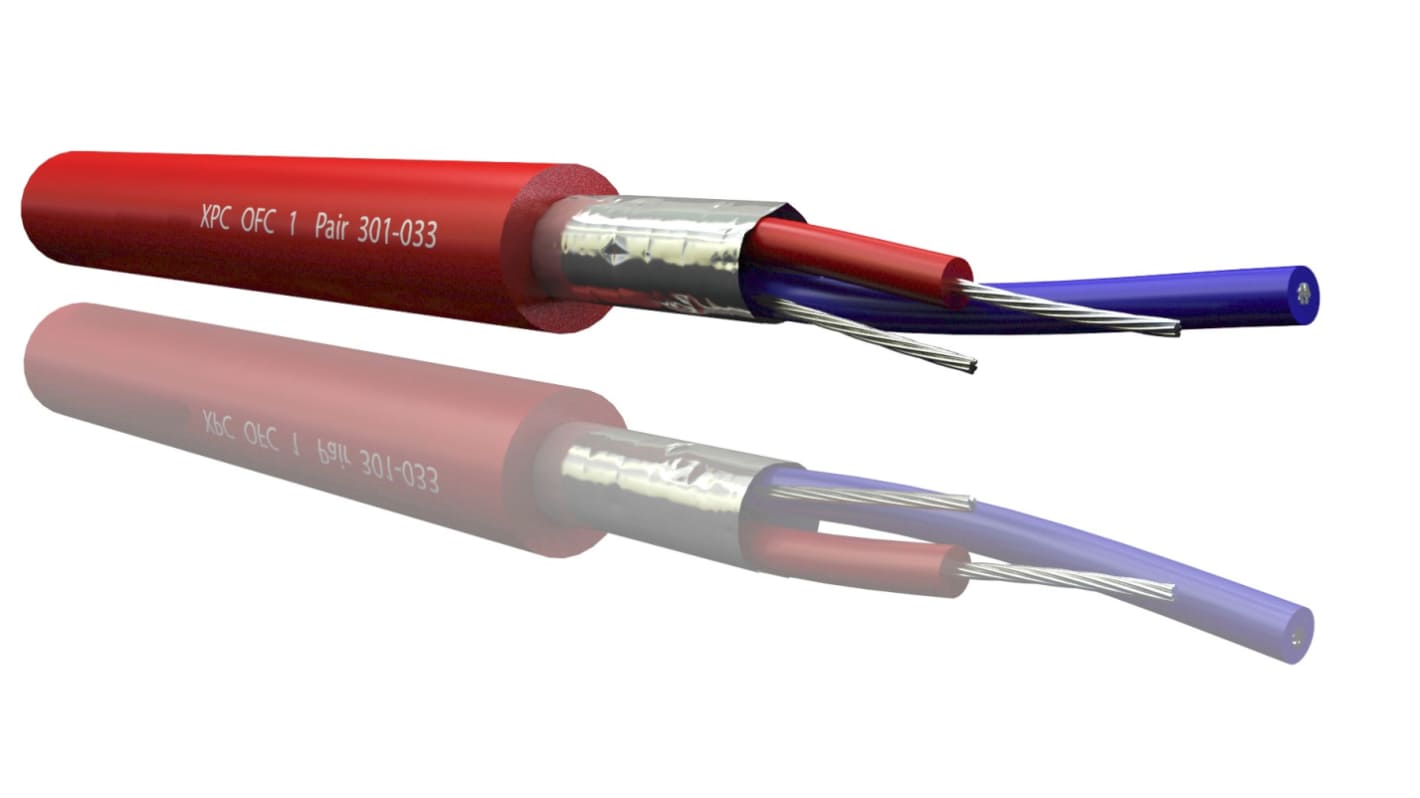

RS PRO 2 Core, 0.25 mm² CSA Screened, 3.5mm od, 100m, Red

Subtotal (1 reel of 100 metres)**

$160.38

(exc. GST)

$176.42

(inc. GST)

3 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Reel(s)	Per Reel	Per Metre**
1 +	$160.38	$1.604

**price indicative

RS Stock No.:: 214-9605
Brand:: RS PRO

RS PRO Multicore Microphone Cable 100m

RS PRO continues to support sound engineers with the latest high-quality cables, here we are pleased to introduce a two-core screened microphone cable that offers a unique blend of versatility, quality, and strength. The RS PRO multicore microphone cable can be soldered to standard jack and XLR connectors to make custom audio cables that can connect microphones and instruments to mixers, loudspeakers or amplifiers. This shielded multicore cable has a soft flexible PVC jacket and is engineered from pure OFC copper for optimum efficiency due to its durability resistance to shorts and long-life span as it's less likely to corrode than other wires.

Features and Benefits

Multicore screened Cable - 2 Core

Shielded multicore audio cable

Outer diameter 3.5 mm

Cross-sectional area 0.25 mm²

XLPE insulated

24 AWG

Core colours Red and Blue

Operating temperature -20°C to +70 °C

Conductor resistance 85 Ω

Capacitance core to core 85 pF/m

Capacitance core to screen 130 pF/m

Applications

High-quality microphone cables are vitally important in audio sound applications. They must be able to relay signals without interference and withstand the twisting and bending commonly associated with live stage and studio setup. The RS PRO multicore microphone cable has all these features and offers XLPE insulation material for flexibility and protection, the ideal solution when creating your own audio, microphone cable assemblies. Multicore cables can be found in industrial and domestic environments such as

Live stages and theatres
Audio & sound system
Professional studio
Touring
Hobbyist and custom audio setups

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Number of Cores	2
	Cross Sectional Area	0.25 mm²
	Screened/Unscreened	Screened
	Insulation Material	XLPE
	Outer Diameter	3.5mm
	Length	100m
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	+70°C
	Sheath Colour	Red
	American Wire Gauge	24 AWG
	Cable Shape	Multicore
	Sheath Material	PVC
	Conductor Resistance	85 Ω/km
	Capacitance Core To Core	85pF/m
	Core Strands	7/0.2 mm
	Shielded/Unshielded	Shielded
	Conductor Strand Type	Stranded
	Number of Strands	7
	Capacitance Core To Screen	130pF/m
	Conductor Material	Oxygen Free Copper
	Size of Strands	0.2 mm

	Select all
	Brand RS PRO
	Number of Cores 2
	Cross Sectional Area 0.25 mm²
	Screened/Unscreened Screened
	Insulation Material XLPE
	Outer Diameter 3.5mm
	Length 100m
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature +70°C
	Sheath Colour Red
	American Wire Gauge 24 AWG
	Cable Shape Multicore
	Sheath Material PVC
	Conductor Resistance 85 Ω/km
	Capacitance Core To Core 85pF/m
	Core Strands 7/0.2 mm
	Shielded/Unshielded Shielded
	Conductor Strand Type Stranded
	Number of Strands 7
	Capacitance Core To Screen 130pF/m
	Conductor Material Oxygen Free Copper
	Size of Strands 0.2 mm
