RS PRO 2 Core, 0.25 mm² CSA Screened, 3.5mm od, 100m, Black

RS Stock No.:: 214-9603
Brand:: RS PRO

RS PRO 2 Core, 0.25 mm² CSA Screened, 3.5mm od, 100m, Black

Subtotal (1 reel of 100 metres)**

$190.58

(exc. GST)

$209.64

(inc. GST)

On back order for despatch 18/11/2025, delivery within 10 working days from despatch date.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Reel(s)	Per Reel	Per Metre**
1 +	$190.58	$1.906

**price indicative

RS Stock No.:: 214-9603
Brand:: RS PRO

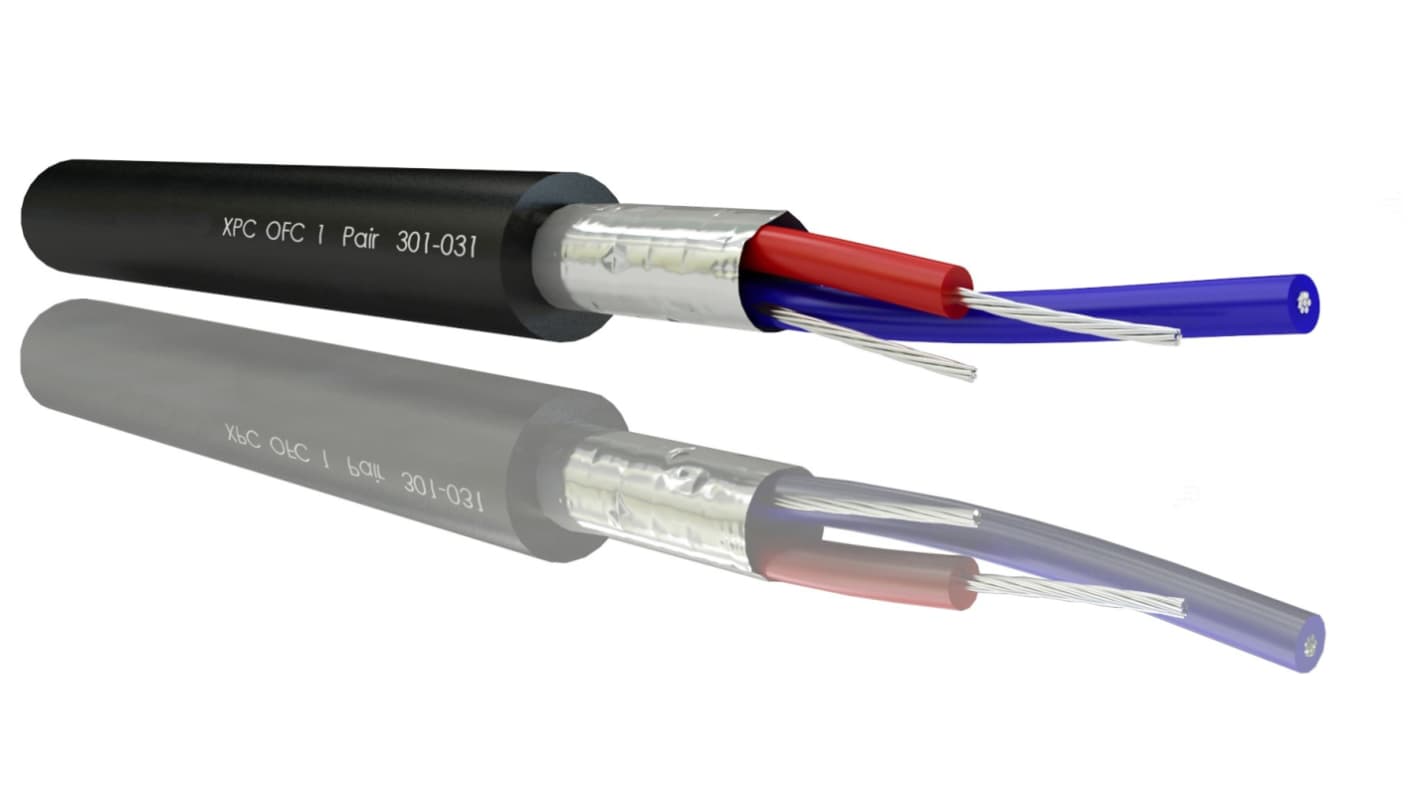

RS PRO Multicore Microphone Cable 100m

RS PRO continues to support sound engineers with the latest high-quality cables, here we are pleased to introduce a two-core screened microphone cable that offers a unique blend of versatility, quality, and strength. The RS PRO multicore microphone cable can be soldered to standard jack and XLR connectors to make custom audio cables that can connect microphones and instruments to mixers, loudspeakers or amplifiers. This shielded multicore cable has a soft flexible PVC jacket and is engineered from pure OFC copper for optimum efficiency due to its durability resistance to shorts and long-life span as it's less likely to corrode than other wires.

Features and Benefits

Multicore screened Cable - 2 Core

Shielded multicore audio cable

Outer diameter 3.5 mm

Cross-sectional area 0.25 mm²

XLPE insulated

24 AWG

Core colours Red and Blue

Operating temperature -20°C to +70 °C

Conductor resistance 85 Ω

Capacitance core to core 85 pF/m

Capacitance core to screen 130 pF/m

Applications

High-quality microphone cables are vitally important in audio sound applications. They must be able to relay signals without interference and withstand the twisting and bending commonly associated with live stage and studio setup. The RS PRO multicore microphone cable has all these features and offers XLPE insulation material for flexibility and protection, the ideal solution when creating your own audio, microphone cable assemblies. Multicore cables can be found in industrial and domestic environments such as

Live stages and theatres
Audio & sound system
Professional studio
Touring
Hobbyist and custom audio setups

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Number of Cores	2
	Cross Sectional Area	0.25 mm²
	Screened/Unscreened	Screened
	Insulation Material	XLPE
	Outer Diameter	3.5mm
	Length	100m
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	+70°C
	Sheath Colour	Black
	American Wire Gauge	24 AWG
	Conductor Material	Oxygen Free Copper
	Capacitance Core To Screen	130pF/m
	Capacitance Core To Core	85pF/m
	Sheath Material	PVC
	Core Strands	7/0.2 mm
	Screen Type	Aluminium Foil, Polyester Tape
	Number of Strands	7
	Shielded/Unshielded	Shielded
	Conductor Strand Type	Stranded
	Cable Shape	Multicore
	Conductor Resistance	85 Ω/km
	Size of Strands	0.2 mm
