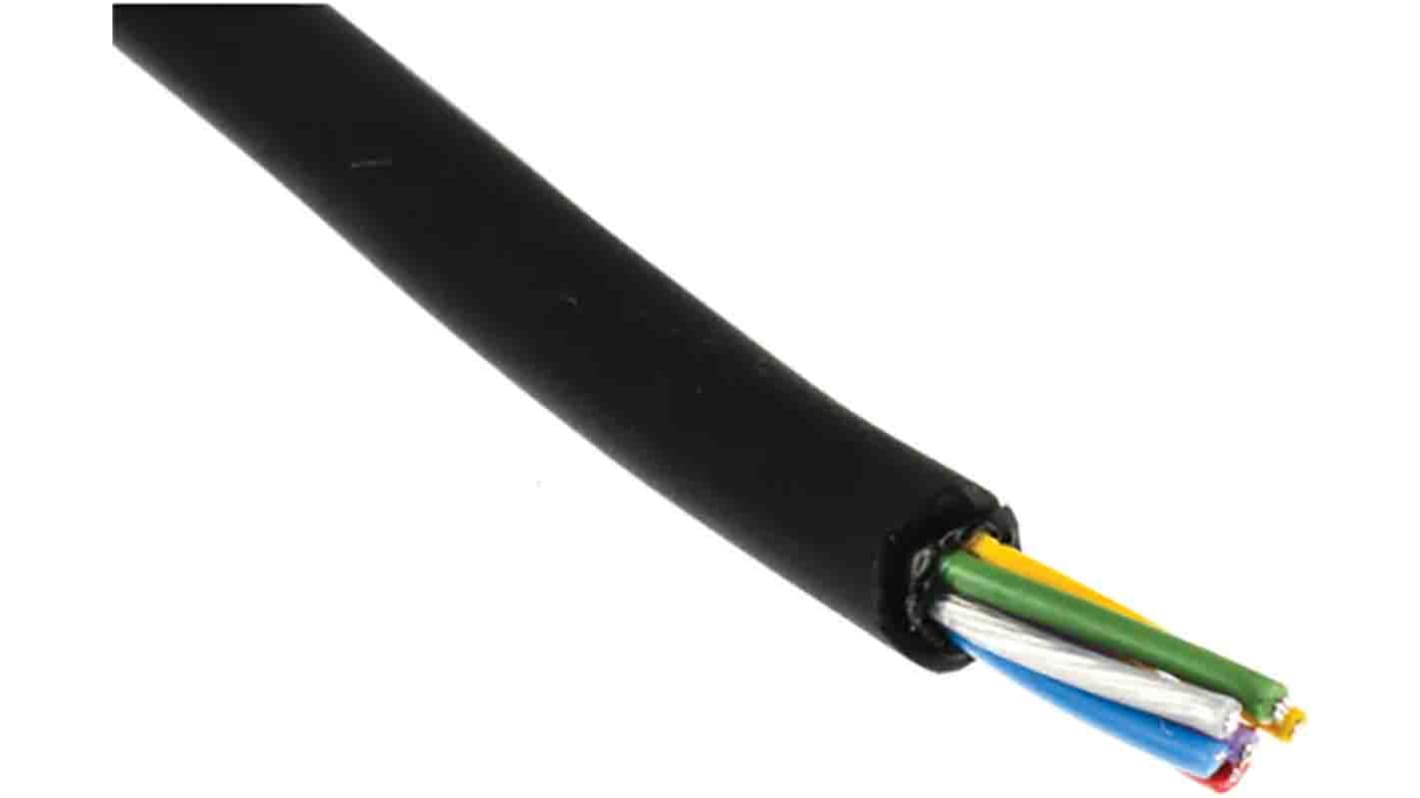

RS PRO 6 Core Microphone Cable, 0.22 mm² CSA Screened, 5.2mm od, 100m, Black

RS PRO continues to support sound engineers with the latest high-quality cables, here we are pleased to introduce a six-core screened microphone cable that offers a unique blend of versatility, quality, and strength. The RS PRO multicore microphone cable can be soldered to standard jack and XLR connectors to make custom audio cables that can connect microphones and instruments to mixers or amplifiers.

High-quality microphone cables are vitally important in audio sound applications. They must be able to relay signals without interference and withstand the twisting and bending commonly associated with live stage and studio setup. The RS PRO multicore microphone cable has all these features and offers PE insulation material for flexibility and protection, the ideal solution when creating your own audio, microphone cable assemblies.

• Insulation Material 1: PE
• Insulation Material 2: Semi-Conductive PE
• Black PVC Jacket
• Cross-Sectional Area: 0.22 mm²
• Core colours: Natural, Blue, Red, Yellow, Green, Violet
• Operating voltage: 60 V
• Operating temperature: -20∼+70 °C
• Conductor resistance (20°C Ω/km): 92 max.
• Insulation DC Resistance (20 °C MΩ*Km): 200 min.
• 100 m Reel

• Tinned Copper Conductor
• Insulation
• PVC Jacket

• Live stages and theatres
• Audio & sound system
• Professional studio
• Hobbyist and custom audio setups
