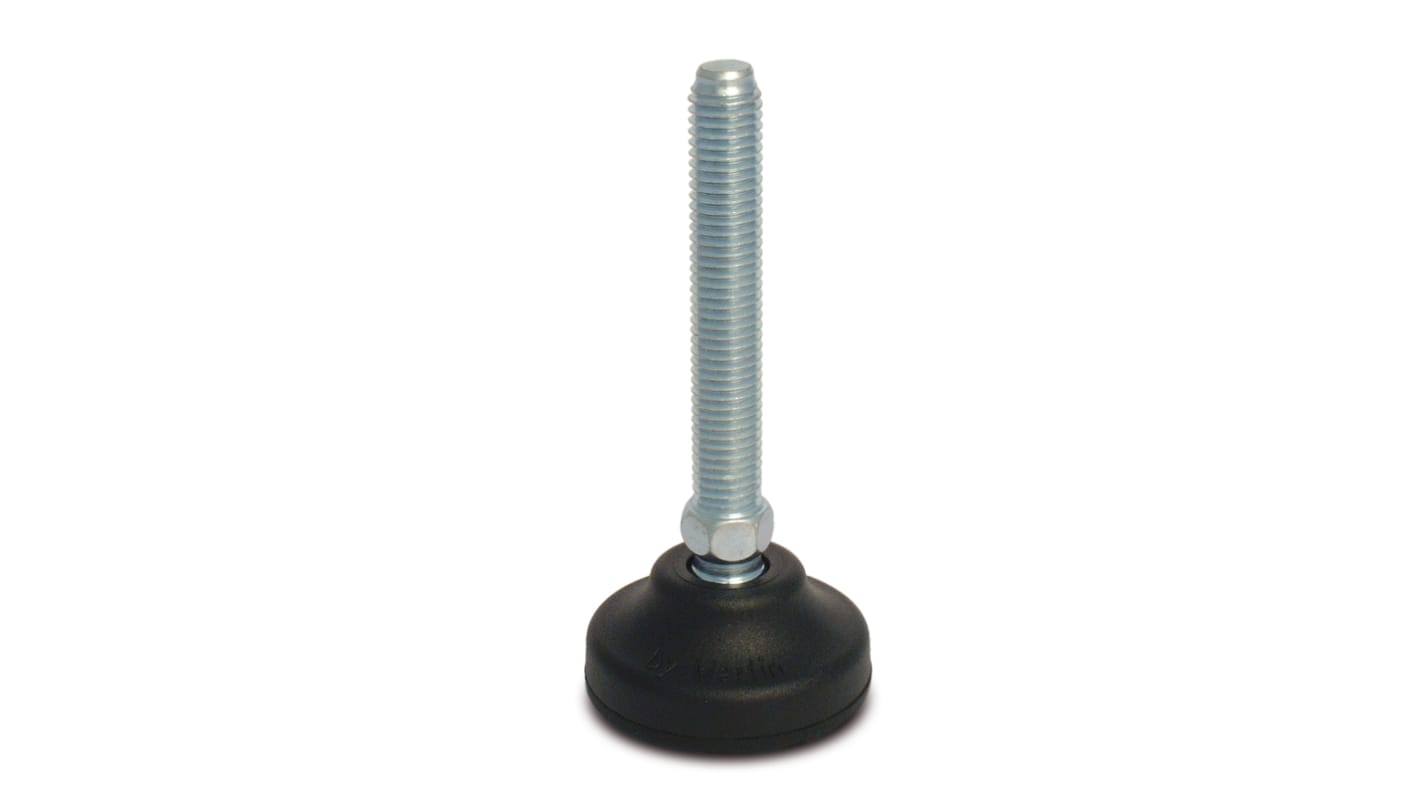

RS PRO M12 50mm Dia. Polyamide Adjustable Foot, 1100kg Static Load Capacity 30° Tilt Angle

RS Stock No.:: 224-5790
Brand:: RS PRO

RS PRO M12 50mm Dia. Polyamide Adjustable Foot, 1100kg Static Load Capacity 30° Tilt Angle

Subtotal (1 unit)**

$31.39

(exc. GST)

$34.53

(inc. GST)

144 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 +	$31.39

**price indicative

RS Stock No.:: 224-5790
Brand:: RS PRO

RS PRO Height Adjustable Feet

Introducing the range of RS PRO height adjustable feet, designed to be cost-effective levelling and support mounts in a range of applications like food processing units, packing and conveyor systems. Made from heavy duty polyamide rubber and mild steel, these simple machine foot mounts from RS PRO are easy to install and economical to maintain and provide a level base for machinery, which in turn aids machine performance and maintenance for expensive machinery and electrical components.

Features and Benefits:

The RS PRO height adjustable feet are used for levelling and support in many applications including lathes, milling machines, machining centres and conveyors

The fibreglass reinforced polyamide rubber and mild steel construction allows optimum dampening and durability over long periods of time and have a tilt angle of 30 degrees

These heavy duty adjustable feet are easy to fit and install thanks to the screw thread

Available in a wide variety of thread sizes and shear load capacities, these versatile feet can reduce wear and increase the lifespan of expensive machinery and electrical components

Applications:

Adjustable feet, also known as levelling feet, are a highly versatile type of adjustable height mount used as a base to level and support a wide range of applications. They are often manufactured using a combination of materials such as a steel thread and a plastic or rubber base and allow the user to adjust the support height of various objects such as furniture displays whilst reducing vibration and noise when used with machinery, or adjusting to uneven surfaces that could cause unbalanced wear and tear to expensive machinery. Adjustable feet are used in a wide range of environments including:

Workshops

Machinery

Storage

Retail

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Static Load Capacity	1100kg
	Thread Size	M12
	Thread Length	150mm
	Tilt Angle	30°
	Foot Material	Polyamide
	Base Material	Mild Steel
	Diameter	50mm
	Height	181mm
	Maximum Adjustment Height	181mm

	Select all
	Brand RS PRO
	Static Load Capacity 1100kg
	Thread Size M12
	Thread Length 150mm
	Tilt Angle 30°
	Foot Material Polyamide
	Base Material Mild Steel
	Diameter 50mm
	Height 181mm
	Maximum Adjustment Height 181mm
