    Solar Panel Wiring in Australia: Types & Factors to Consider

    Explore the essentials of solar panel wiring in Australia, from choosing the right cables to understanding how parallel wiring affects performance.

    RS marketing banner

    In the past two decades, Australia has seen a remarkable surge in the adoption of solar energy, with almost four million solar photovoltaic (PV) panel systems installed across the nation. This significant growth is largely attributed to a reduction in the overall costs of installing rooftop solar panels. Not only do these panels play a crucial role in reducing our carbon footprint, they also contribute to energy cost savings and reduce dependence on the grid.

    Considering these benefits, it’s no surprise that you might be contemplating installing solar panels of your own. However, before you do, an often overlooked yet essential aspect of solar panel installation is the wiring. Wiring has a direct impact on your solar panel’s efficiency and the amount of solar energy that can be converted into usable electricity. Let’s explore how you can ensure proper wiring and the optimal performance of your solar panels.

    Solar Panel Wiring in Australia: Types & Factors to Consider

    What Sort of Wiring is Needed for Solar Panels?

    The electrical wiring of solar panels refers to the various components that connect the solar panels to the inverter, battery storage systems, and the electrical grid or home electrical system. When looking to purchase or inspect solar wiring components, it’s important to ensure that they comply with the AS/NZS 5033:2021 standard, which lays out comprehensive safety requirements for the design, installation, and testing of solar panels.

    PV Wire or Solar Cables

    Solar photovoltaic cables (PV1-F cables) are specifically designed for solar energy systems and are the industry standard for solar panel wiring. These cables are available in single-core or multi-core varieties to suit basic or complex solar panel arrays. Since they are meant to be installed outside and exposed to the elements, PV1-F cables are usually heavily insulated to protect the sensitive parts of the cable from the environment. When looking for suitable PV1-F cables, you should consider one with a high UV and weather resistance to withstand Australia’s intense sunlight and variable climate.

    MC4 Connectors

    Multi-contact, 4mm pin diameter connectors (MC4 connectors) are specialised electrical connectors designed for linking solar panels. They feature a special locking mechanism that forms a secure and waterproof connection that can only be separated with a special MC4 unlocking tool. This greatly reduces the risk of the connector becoming unplugged when in operation. When selecting MC4 connectors for use in Australia, ensure they are waterproof with a high IP rating and UV-resistant, capable of safely handling the specific electrical loads of your system, and designed for easy installation.

    Wire Management Clips and Cable Ties

    Wire management clips and cable ties play a vital role in keeping solar wiring organised and protected. Securing cables doesn’t just keep them out of the way, it can also prevent wear and tear from environmental exposure and accidental physical damage. Properly managed cables not only ensure that your system is neat, but also help to safeguard against one of the most common failure points in solar energy systems: wiring damage.

    Circuit Breakers and Fuses

    Circuit breakers and fuses are essential electrical safety components in solar panel systems, protecting against electrical surges and short circuits. They function by interrupting power flow when electrical currents exceed safe levels, sacrificing themselves to prevent damage to the system and potential fire hazards.

    Charge Controllers

    Charge controllers are essential in regulating the flow of electricity from solar panels to batteries, preventing overcharging and damage. They play a key role in maintaining battery health and efficiency in solar energy systems, especially in off-grid setups. These devices ensure that batteries receive the right amount of power, safeguarding the longevity and performance of the solar installation.

    Inverter Cables

    Inverter cables connect solar panels or batteries to inverters, which convert DC solar power into AC electricity. These cables are designed to handle high voltages safely, ensuring efficient energy transfer to the inverter. The right specification and quality of inverter cables are vital for the safe and effective operation of the solar energy system.

    Series vs Parallel Wiring for Solar Panels

    Understanding the difference between series and parallel wiring for solar panels is crucial in designing an efficient system. The choice between the two wiring methods affects the installation’s efficiency and energy output when under various environmental conditions.

    Series Wiring

    In series wiring, solar panels are connected end to end, which increases the voltage while keeping the current constant. This setup is simpler and often used in smaller installations. However, in a series setup, the entire string is only as strong as the weakest panel. This means if one panel gets shaded, it can affect the performance of the entire string.

    Parallel Wiring

    Parallel wiring connects the positive terminals and negative terminals of each solar panel together. This method maintains the voltage of each panel but increases the overall current. Compared to series wiring, parallel wiring is able to maintain a more consistent power output even if some panels are shaded. However, it requires more cabling and can be complex to set up, increasing installation costs.

    Choosing the Right Wiring Method for Your Solar Panels

    Whether to go with parallel or series wiring for your solar panels comes down to several factors:

    • Inverter Specifications: The voltage and current ratings of your inverter dictate how many panels can be linked in a string. An inverter with an MPPT voltage range of 80 - 400V allows for the most flexibility for optimal power conversion in Australia where solar irradiance levels are high.
    • Solar Panel Specifications: The voltage and current ratings of your solar panels, as well as the number of solar panels you have will affect the optimal wiring method. The specs and wiring of your array should match your inverter, while parallel wiring is ideal if you have a large number of panels and need greater redundancy.
    • Environmental Conditions: Local weather patterns such as the extreme heat in the outback, or the heavy storms near the coasts, can also affect your choice of wiring. Parallel wiring is preferred in areas thanks to its greater resiliency.

    If you’re unsure of which solar panel wiring method is best for you, it’s always best to consult with a qualified solar installer in Australia who can provide advice based on your specific situation.

    Get Your Solar Panel Wiring Components with RS Australia

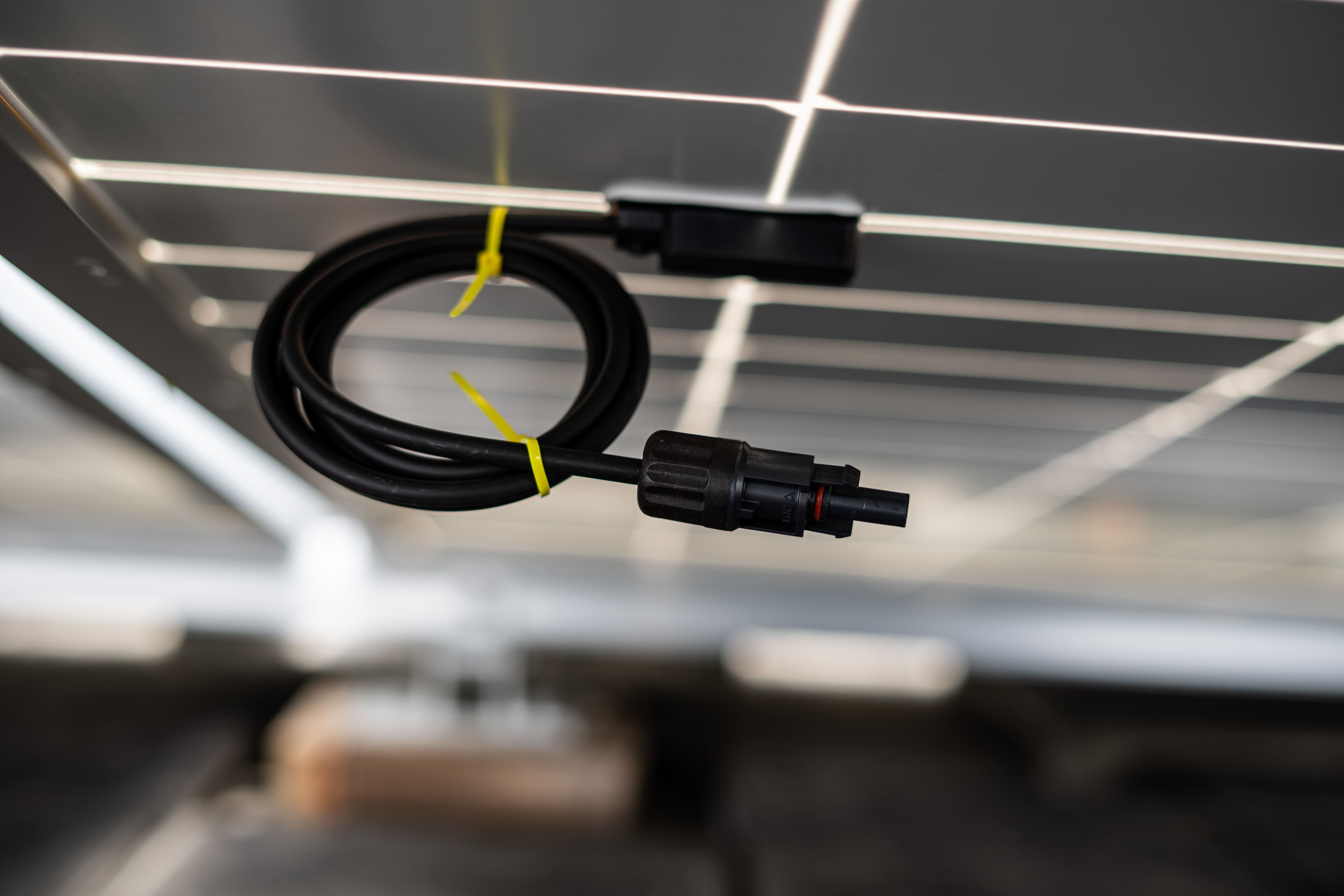

    Get Your Solar Panel Wiring Components with RS Australia

    RS Australia offers a wide selection of essential wiring tools, including solar panel connectors and cable ties, to ensure effective and safe solar panel installations in Australia. Whether for a residential project or a commercial venture, our comprehensive range meets all your solar wiring needs, aligning with Australian standards for optimal performance and durability. Browse our inventory to find the right products to make your solar installation a success today.
