onsemi, 20V Zener Diode 5% 5 W Through Hole 2-Pin DO-15

RS Stock No.:: 654-7628
Mfr. Part No.:: 1N5357BRLG
Brand:: onsemi

onsemi, 20V Zener Diode 5% 5 W Through Hole 2-Pin DO-15

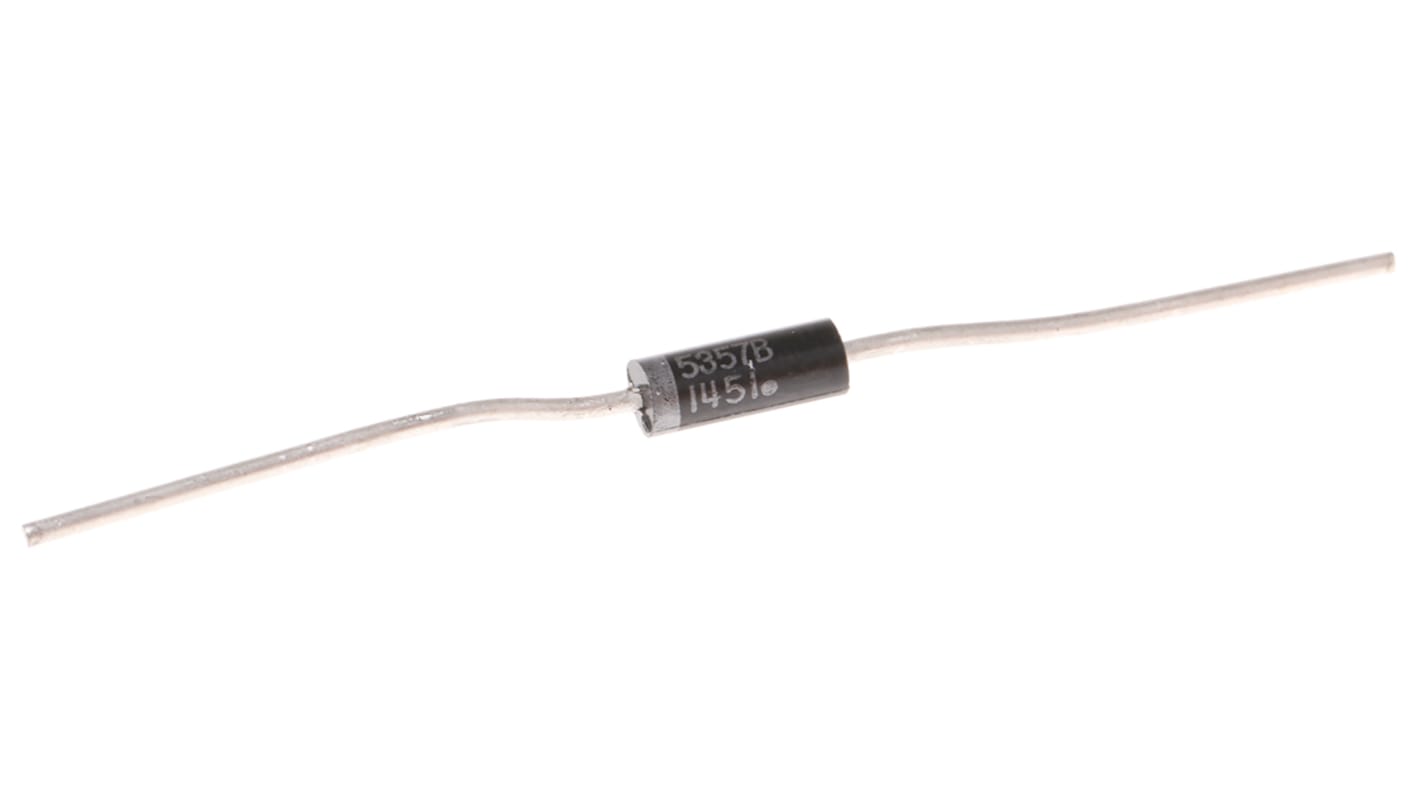

This image is representative of the product range

140 In AU stock for next working day delivery

15 In Global stock for delivery within 5 working day(s)

Added

Price (ex. GST) Each (In a Pack of 5)

$0.752

(exc. GST)

$0.827

(inc. GST)

Units	Per unit	Per Pack*
5 - 995	$0.752	$3.76
1000 - 4995	$0.738	$3.69
5000 +	$0.608	$3.04
*price indicative

RS Stock No.:: 654-7628
Mfr. Part No.:: 1N5357BRLG
Brand:: onsemi

Technical data sheets

1N53 Series, 5 Watt Surmetic 40 Zener Voltage Regulators

Legislation and Compliance

Product Details

Zener Diodes 5W Surmetic, 1N5347 to 1N5363 Series, ON Semiconductor

ON Semiconductor 1N53 series is Surmetic™ 40 axial-leaded 5 Watt zener diode This axial lead device features a molded package which is void-free transfer−molded, thermosetting plastic, offers protection in most common environmental conditions, The voltage regulator has tight limits and better operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. The external surfaces are corrosion resistant and leads are readily solderable

Applications

Industrial

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Zener Diodes, ON Semiconductor

Specifications

Attribute	Value
Nominal Zener Voltage	20V
Diode Configuration	Single
Mounting Type	Through Hole
Number of Elements per Chip	1
Maximum Power Dissipation	5 W
Package Type	DO-15
Zener Type	Voltage Regulator
Zener Voltage Tolerance	5%
Pin Count	2
Test Current	65mA
Maximum Zener Impedance	3Ω
Maximum Reverse Leakage Current	500nA
Dimensions	8.89 x 3.68 x 3.68mm
Minimum Operating Temperature	-65 °C
Maximum Operating Temperature	+200 °C
