Molex, Mini-Latch Female Connector Housing, 2.5mm Pitch, 4 Way, 1 Row
- RS Stock No.:
- 797-9142
- Mfr. Part No.:
- 51191-0400
- Brand:
- Molex
210 In Global stock for delivery within 5 working day(s)
Added
Price (ex. GST) Each (In a Pack of 10)
$0.309
(exc. GST)
$0.34
(inc. GST)
| Units | Per unit | Per Pack* |
| 10 - 190 | $0.309 | $3.09 |
| 200 - 740 | $0.302 | $3.02 |
| 750 - 2990 | $0.295 | $2.95 |
| 3000 + | $0.288 | $2.88 |
| *price indicative | ||
- RS Stock No.:
- 797-9142
- Mfr. Part No.:
- 51191-0400
- Brand:
- Molex
Legislation and Compliance
Product Details

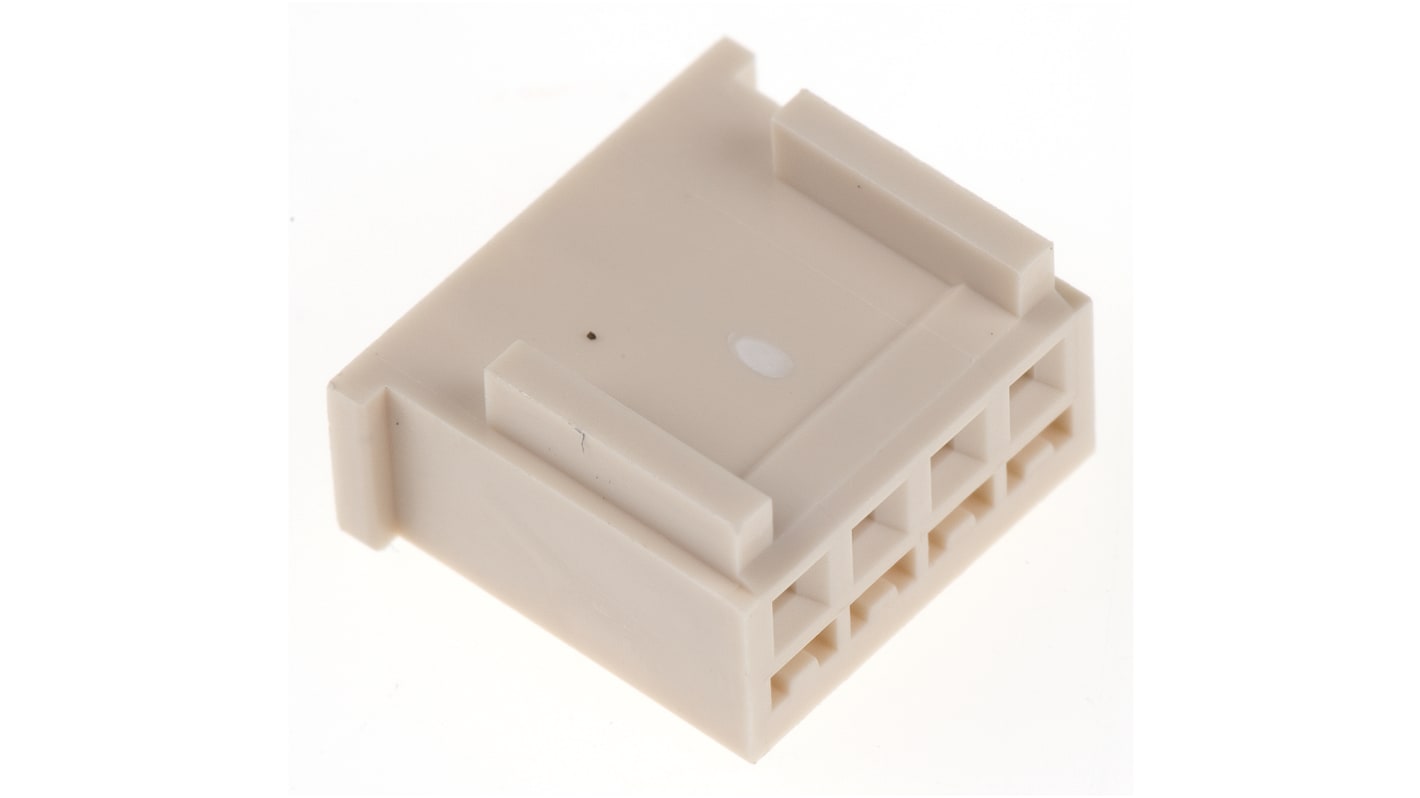

Molex Connector Housing, Nylon Material, 4 Contacts - 51191 Series - 51191-0400
Efficiently connect components to your PCB board using this sturdy 4-way female connector housing from Molex. Its casing is made from nylon, meaning it’s tough, chemical resistant and heat resistant. This makes it suitable for use in harsh and contaminated environments. Thanks to a precise mating pitch of 2.50mm, you can be sure that the contacts are safely isolated. This unit can be used for wire-to-board and wire-to-wire connections, making it a versatile choice.
Features & Benefits
• Wide operating temperature between -40°C and +105°C, so it's ideal for use in demanding conditions
• Dimensions of 12.5 (L) x 6.6mm (W) for where space is limited
• Dimensions of 12.5 (L) x 6.6mm (W) for where space is limited
Applications
• Personal computers
• Data communication hardware
• Medical equipment
• Data communication hardware
• Medical equipment
Can I stack multiple units?
No, this unit doesn't permit stacking. It should be used as a single unit for maximum results.
Which crimp terminal is this unit compatible with?
You can use this unit with crimp terminals from the Molex 50802 series.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 4 |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Gender | Female |
| Mounting Type | Cable Mount |
| Series | Mini-Latch |
| For Use With | Crimp Terminal 50802 |
| Body Orientation | Straight |
| Length | 12.5mm |
| Width | 6.6mm |
| Housing Material | Nylon |
