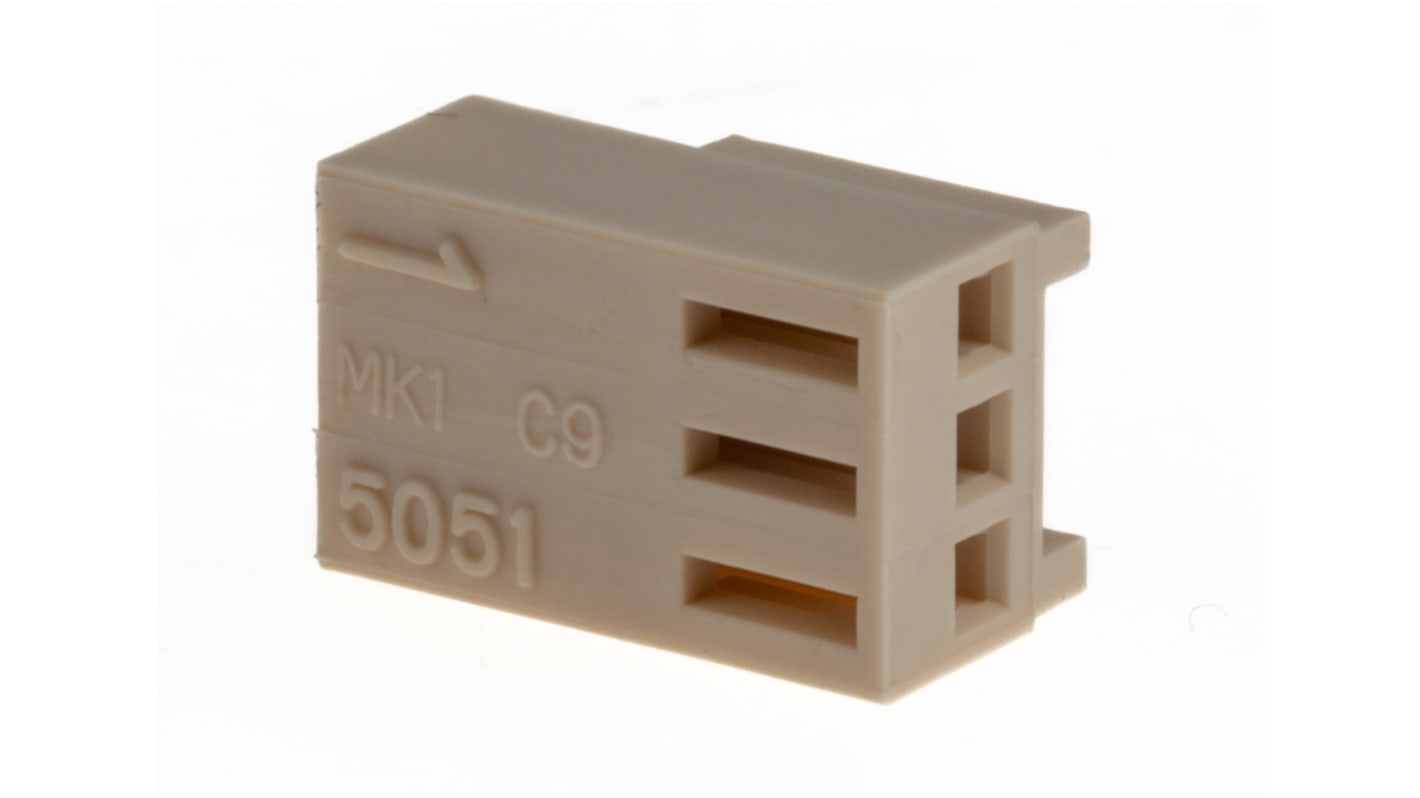

Molex, KK Female Connector Housing, 2.5mm Pitch, 3 Way, 1 Row

Friction Lock for improved mated retention with locking headers
Mates with 5045 Series Vertical Headers and 5046 Series Right Angle Headers typical stock numbers 687-7213 and 687-7263 respectively
Use with 2759 Series terminals typical stock number 670-2263

This connector housing from Molex lets you easily attach a pre-crimped terminal to a printed circuit board. It has an integrated friction lock that gives a secure mating to the PCB for reliable signal transmission. The robust polyamide body is resistant to abrasion so this unit can withstand demanding mechanical operations. It also offers insulation protection to prevent the risk of electric shocks. A broad operating temperature range of -40°C to +105°C means you can safely use this component in demanding environments.

• Compact dimensions of 8 (length) x 6.6 (width) x 12.7mm (depth) for use in small setups
• Can accommodate three terminals at once for versatile use

• Audio-visual devices
• Manufacturing industry
• Networking equipment
• Security systems

You can connect this unit to a PCB by plugging it into a PCB header. It's compatible with both vertical headers from the Molex 5045 series (687-7213) and right-angle headers from the 5046 (687-7263) series, making it a versatile option.

You can use this versatile housing with terminals from the 2759 Series (670-2263).
