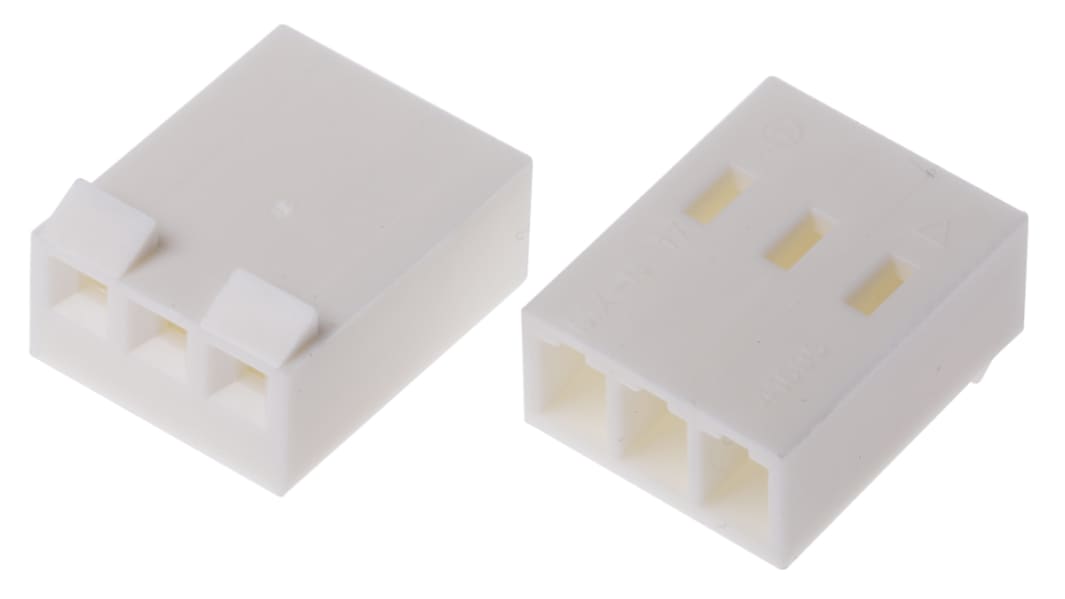

    Molex, KK 396 Female Connector Housing, 3.96mm Pitch, 3 Way, 1 Row

    Molex
    RS Stock No.:
    679-5158P
    Mfr. Part No.:
    09-50-8031
    Brand:
    Molex
    View all Wire Housings & Plugs
    28570 In Global stock for delivery within 10 working day(s)
    Add to Basket
    units

    Added

    Price (ex. GST) Each (Supplied in a Bag)

    $0.299

    (exc. GST)

    $0.329

    (inc. GST)

    unitsPer unit
    250 - 990$0.299
    1000 - 4990$0.29
    5000 - 9990$0.283
    10000 +$0.276
    Packaging Options:
    RS Stock No.:
    679-5158P
    Mfr. Part No.:
    09-50-8031
    Brand:
    Molex

    Legislation and Compliance


    Product Details

    Socket Housings, 41695 Series


    A range of KK 3.96mm Crimp Terminal Housings for KK 2478 and 2578 Series and Trifurcon™ 6838 Series terminals, see stock 173-3284 typical for KK and 670-2926 typical for Trifurcon.

    Molex Connector Housing, Straight Body Orientation, 3.96mm Pitch - 41695 Series - 09-50-8031


    Want an easy way to keep your wires in order? Use this connector housing from Molex. It accepts conductor sizes from 26 to 18AWG, so it's widely compatible. Getting set up is a matter of crimping your wire ends with terminals from either the 2478 series or 2578 series and then slotting them into the unit. When you hear a click, you know installation is complete. Thanks to its plug-and-play design, this housing is ideal for wire-to-board applications.

    Features & Benefits


    • Light 1.053g weight won't put strain on your equipment
    • Glass-filled polyester body resists wear and tear to maintain firm connections in demanding conditions
    • Compact dimensions of 12.75 (L) x 8.07 (W) x 15.88mm (D) for use in setups where space is limited

    Applications


    • Automotive industry
    • Medical facilities
    • Telecommunication networks

    Is the connector housing fire-safe?


    This product self-extinguishes in 10 seconds to boost workplace safety.

    For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.


    3.96mm Molex KK Range

    Specifications

    AttributeValue
    Number of Contacts3
    Number of Rows1
    Pitch3.96mm
    GenderFemale
    Mounting TypeCable Mount
    SeriesKK 396
    For Use WithKK Connector
    Body OrientationStraight
    Length12.75mm
    Width8.07mm
    Housing MaterialPET
