Molex, MicroClasp Female Connector Housing, 2mm Pitch, 7 Way, 1 Row

RS Stock No.:: 161-9362
Mfr. Part No.:: 51382-0700
Brand:: Molex

Molex, MicroClasp Female Connector Housing, 2mm Pitch, 7 Way, 1 Row

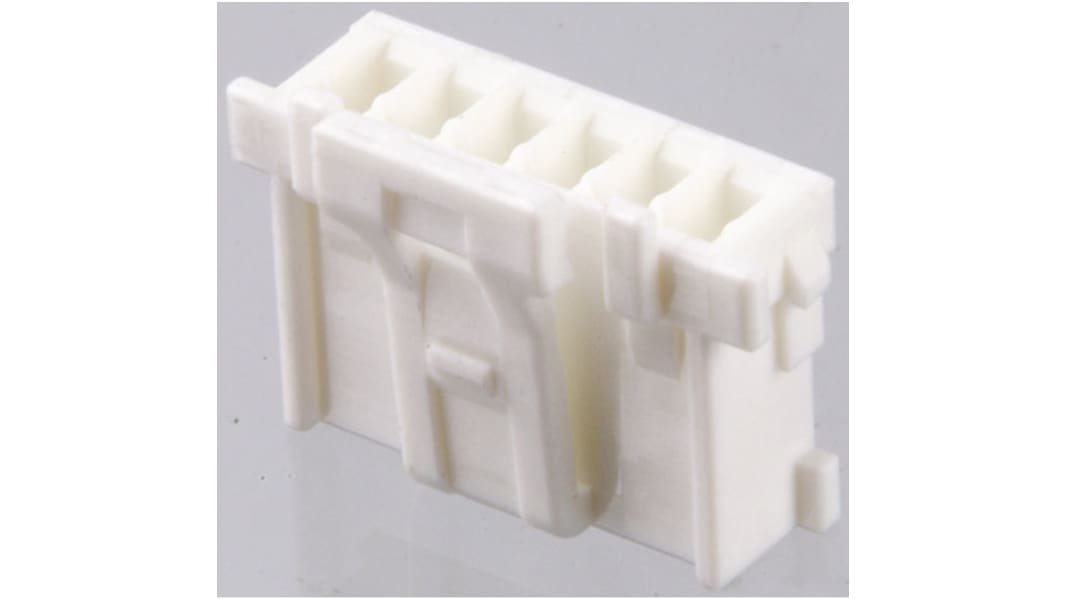

This image is representative of the product range

678 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each (In a Bag of 500)

$0.333

(exc. GST)

$0.366

(inc. GST)

Units	Per unit	Per Bag*
500 - 500	$0.333	$166.50
1000 - 1500	$0.324	$162.00
2000 +	$0.319	$159.50

*price indicative

RS Stock No.:: 161-9362
Mfr. Part No.:: 51382-0700
Brand:: Molex

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: JP

Product Details

Single Row Receptacle Housing

Approvals

UL 94V-0

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

2.0mm Wire to Board - Molex MicroClasp™ Range

MicroClasp™ 2.00mm pitch Wire to Board system provides space savings and easy mating/unmating compared to similar 2.00mm and 2.50mm pitch Wire to Board systems. MicroClasp™ includes a unique inner positive lock that provides latch protection, secure retention and an audible mating click. The terminal design of the MicroClasp™ series offers low insertion and withdrawal forces and is able to carry 3.0 A current in a compact 2.00mm pitch design.

2.00mm (0.079”) Pitch
Inner Positive Lock
Low insertion force terminal design
Two-point contact design
High-current contact design
Housing lance system
PCB space savings
Latch protection/secure mating/audible “click”
Easy mating/unmating
Carry up to 3.0A
Terminal protection and secure retention

Specifications

Attribute	Value
Number of Contacts	7
Number of Rows	1
Pitch	2mm
Gender	Female
Mounting Type	Cable Mount
Series	MicroClasp
For Use With	MicroClasp Wire-to-Board Receptacle
Body Orientation	Straight
Length	17.4mm
Width	6.95mm
Housing Material	Polyamide
