DELTA6B/x/SMAM/S/S/11 Siretta - Whip WiFi Antenna, Direct Mount, (2.4 → 2.5 GHz) SMA Connector

  • RS Stock No. 124-8878
  • Mfr. Part No. DELTA6B/x/SMAM/S/S/11
  • Manufacturer Siretta
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

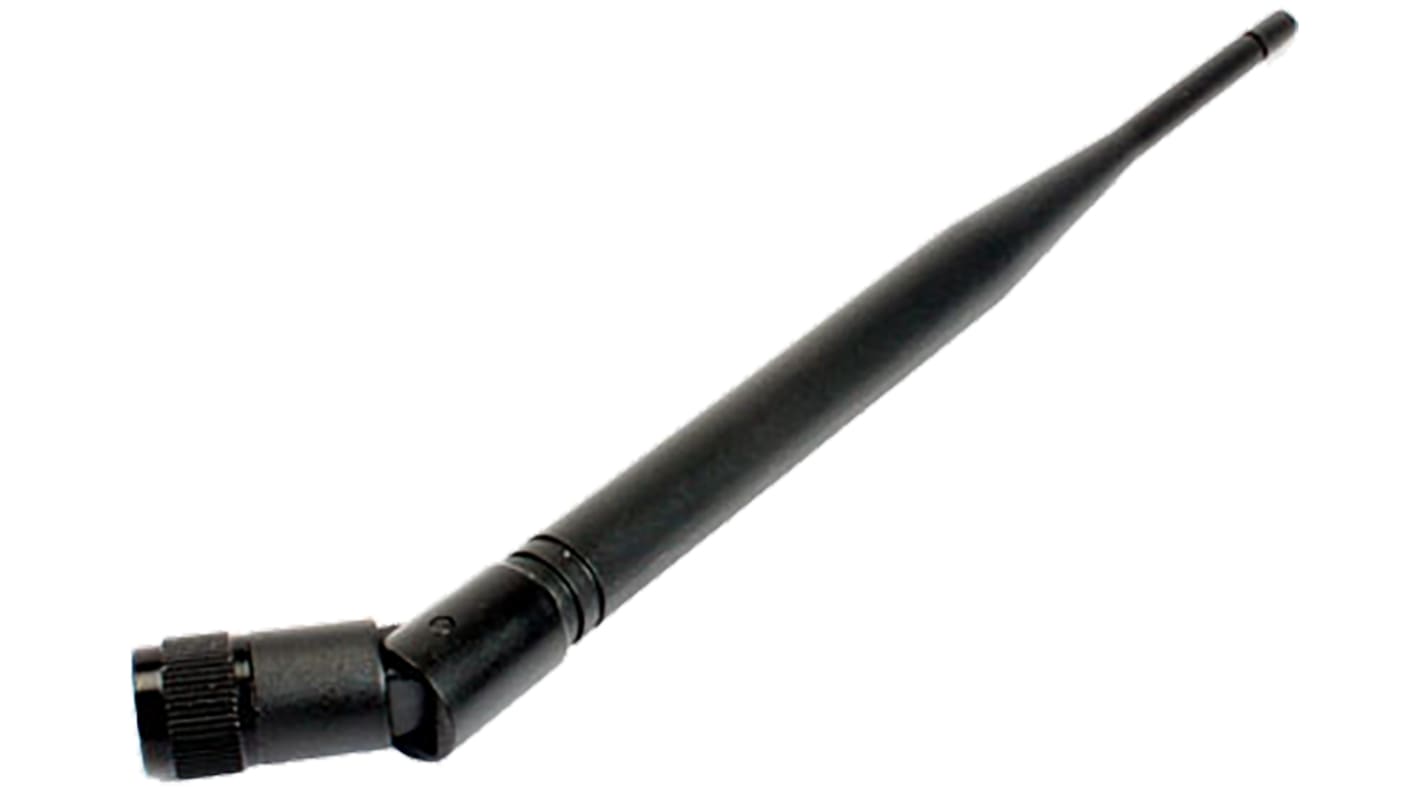

DELTA 6B WiFi/WLAN/Bluetooth/ZigBee Hinged Antenna, Siretta

The Delta 6B is a single band WiFi/WLAN/Bluetooth/ZigBee antenna, tuned to 2.4 GHz to 2.5 GHz with a peak gain of 5 dBi. It has a 1/2 wave dipole radiating element and a hinged joint enables you to position it for optimum performance.

The Delta 6B antenna can be used with many WiFi modems such as Netgear and TP-link.

Supplied with either an SMA male or a reverse polarity SMA male connector (the latter being the common connector type for WiFi modems).

DELTA6B/x/SMAM/S/S/11 - SMA male connector (RS 124-8878)
DELTA6B/x/SMAM/RP/S/11 - Reverse polarity SMA male (RS 124-8879)

Operating Temperature: -20 to +65°C
Impedance: 50 Ω
Gain: 5 dBi
VSWR: <2.0:1
Polarisation: Vertical

Operating Frequencies
WiFi / WLAN / Bluetooth / ZigBee: 2.4 GHz to 2.5 GHz

Dimensions
Length: 196 mm
Width: 12.5 mm

2.4GHz Antennas

Specifications
Attribute Value
RF Protocols WiFi
Internal/External External
Antenna Physical Form Whip
Supported Frequency Bands 2.4 → 2.5 GHz
Antenna Mounting Type Direct
Connector Type SMA
Gain 5dBi
Antenna Directivity Omnidirectional
Connector Gender Male
Series DELTA 6B
77 In stock for delivery within 7 working day(s) (Global Stock)
Price (ex. GST) Each
Was $22.04
$ 21.69
(exc. GST)
$ 23.86
(inc. GST)
units
Per unit
1 +
$21.69
