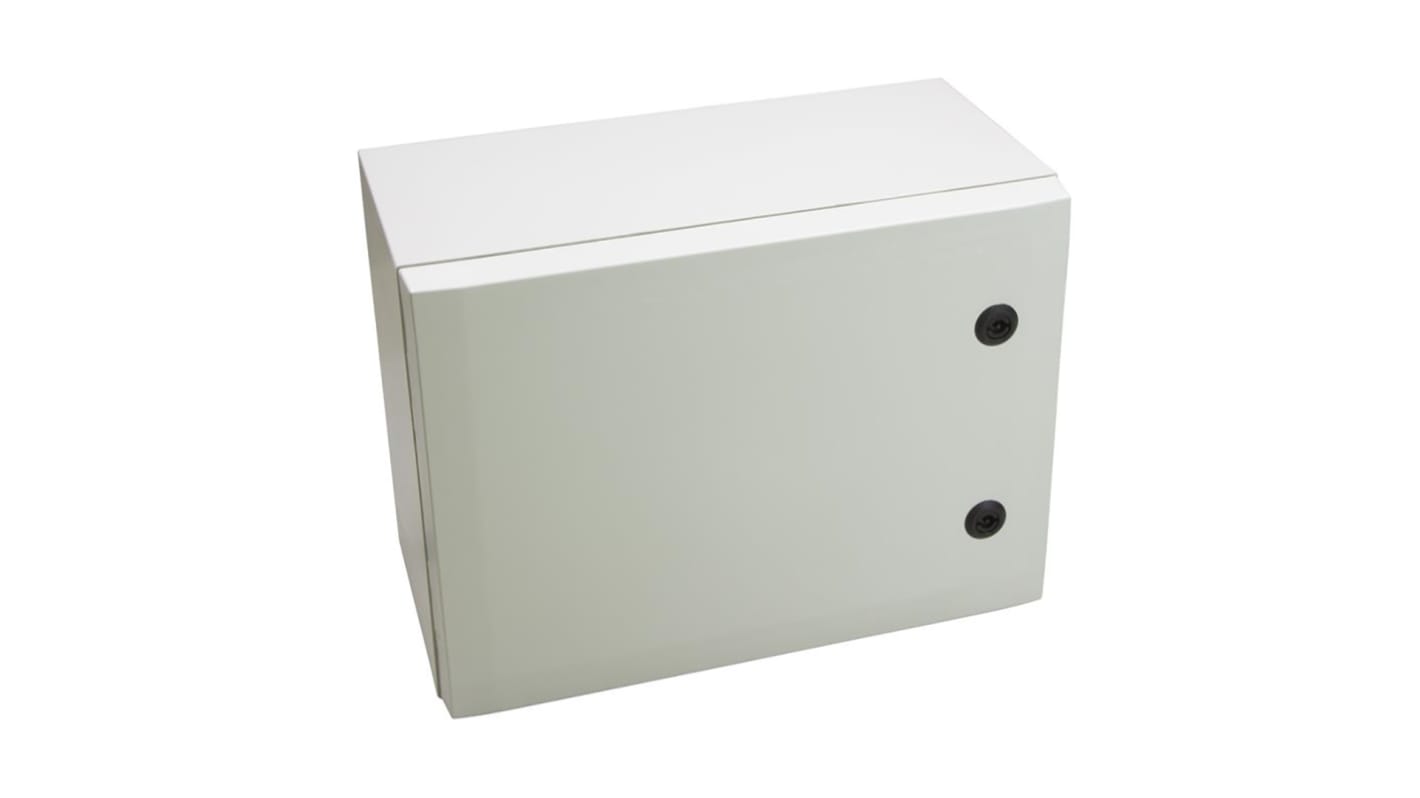

Fibox ARCA, Polycarbonate Wall Box, IP66, 150mm x 200 mm x 300 mm

  • RS Stock No. 869-7911
  • Mfr. Part No. ARCA 203015 No MP
  • Manufacturer Fibox
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FI
Product Details

Fibox ARCA Wall Mount Enclosures

The Fibox ARCA cabinet is an ideal solution for harsh and demanding environments. The main body of the cabinet is made from rugged polycarbonate which is UV resistant, non-corrosive and has a high impact resistance.

Door opens 120° for easy access to the contents and has pre-formed fixing studs inside
Declined design on base for improved weatherproofing
Patent pending hinge design for easy assembly and refined appearance
Double-bit locking and changeable lock inserts
Mounting pods on the base, cover and four sides
Wide and secured gasket with PUR material for high quality sealing
Special moulded rib design and double corners provide additional stability and rigidity
All wall mounting options outside the gasket area to aid IP rating
IP66 and IK10 protected
Fire resistant UL 94-5VA
Electrically isolated 1500 Vdc
Light Grey RAL 7035
Halogen free, UV resistant with good chemical resistance


EN/IEC 62208, EN/IEC 61439-1-4
RoHS directive 2011/65/EU
Low Voltage Directive 2006/95/EC (up to 1500 VCD)
Fimko certified

Supplied with

Cabinet, door with PUR gasket and 3mm double bit lock(s) with key.

Attribute Value
External Height 200 mm
External Width 300 mm
External Depth 150mm
Body Material Polycarbonate
Transparent Door No
IP Rating IP66
Chassis Plate No
Door Lock Type Key
Gland Plate No
Colour Grey
Series ARCA
Fixing Kit Yes
Internal Mounting Type Panel
Application General Purpose
For Protection Of Switch Gear
Special Features Door Guide Included
Standards Met UL 508
External Mounting Type Bracket, Holes Outside Gasket Area
14 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 163.85
(exc. GST)
$ 180.23
(inc. GST)
Per unit
1 +
