Analog Devices LTC3200EMS8#PBF, 5-Channel Charge Pump, Regulator, 100 mA, -0.3 to 5.5 V 2 MHz, MSOP 8-Pin

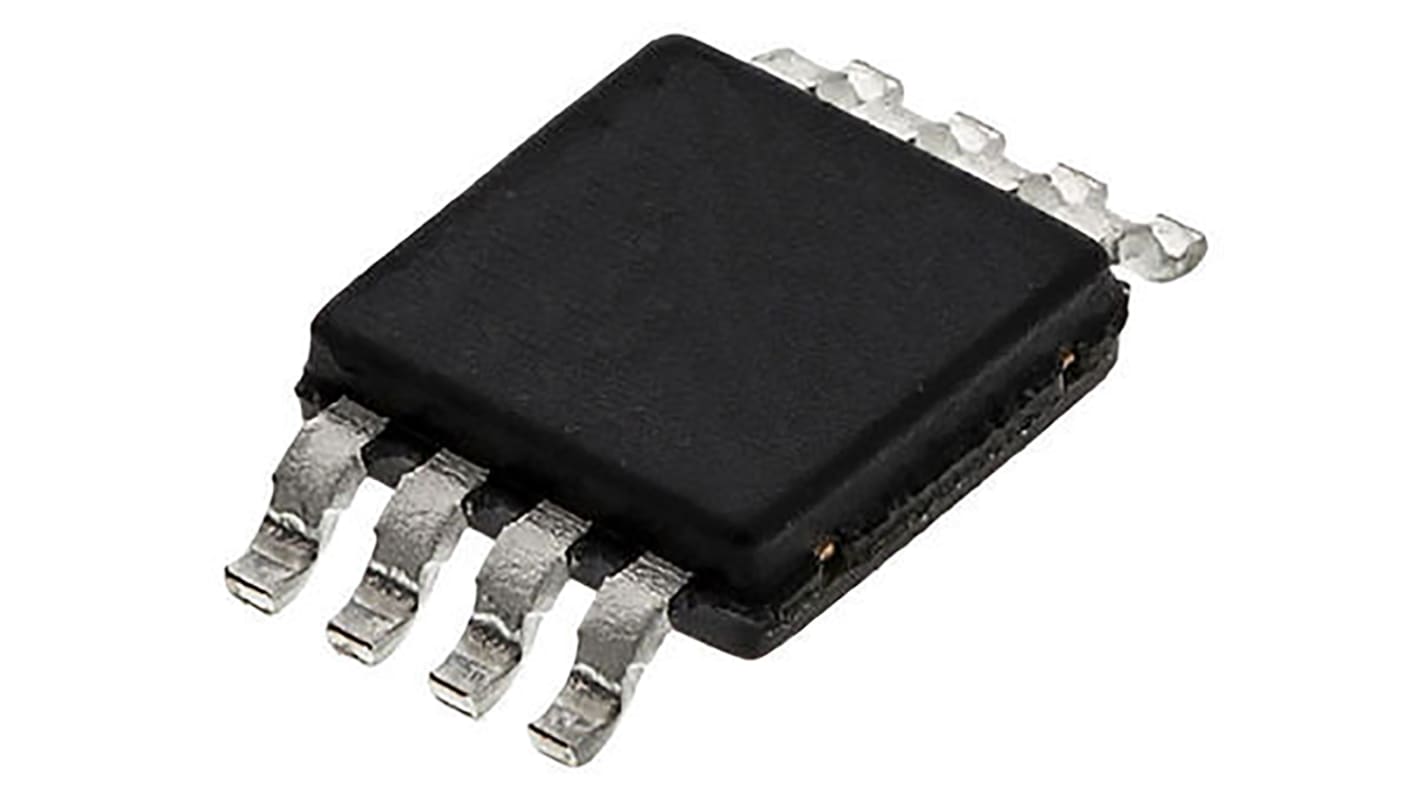

This image is representative of the product range

View all Voltage Regulators
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Packaging Options:
RS Stock No.:
506-1779
Mfr. Part No.:
LTC3200EMS8#PBF
Brand:
Analog Devices
Find similar products by selecting one or more attributes.
Select all

Brand

Analog Devices

Regulator Type

Charge Pump

Product Type

Regulator

Output Voltage

-0.3 to 5.5 V

Number of Outputs

5

Switching Frequency

2MHz

Mount Type

Surface

Package Type

MSOP

Output Current

100mA

Pin Count

8

Output Type

-0.3/5.5 V

Length

3mm

Standards/Approvals

No

Series

LTC3200

Width

3 mm

Height

0.86mm

Minimum Input Voltage

2.7V

Maximum Input Voltage

4.5V

Maximum Operating Temperature

85°C

Minimum Operating Temperature

-40°C

Automotive Standard

No

Inductorless (Charge Pump) DC/DC Converters, Linear Technology


The Linear Technology range of Inductorless DC/DC Converter (Charge Pump) offers step-up, step-down as well as inverting devices. The regulated buck boost charge pumps and the regulated Inverting charge pumps contain Spread Spectrum technology on-chip making the input and output quieter.

Small footprint due to no inductor

Simple design

Switching Voltage Regulators, Linear Technology


Linear Technology product series of synchronous and non-synchronous internal switching regulator ICs offer high efficiency plus a wide input voltage range and switching frequencies up to 4MHz.

The controllers span over several types of configurations from buck (step-down), boost (step-up), buck-boost, forward, Isolated, Inverting and flyback controllers. The Flyback, Forward and Isolated Controllers primary and secondary side provide a solution to help replace the DC/DC bricks that get used in back-plane power conversion.
