Maxim Integrated 500MHz Oscillator, 6-Pin SOT-23
- RS Stock No.:
- 190-4913
- Mfr. Part No.:
- MAX2608EUT+T
- Brand:
- Maxim Integrated

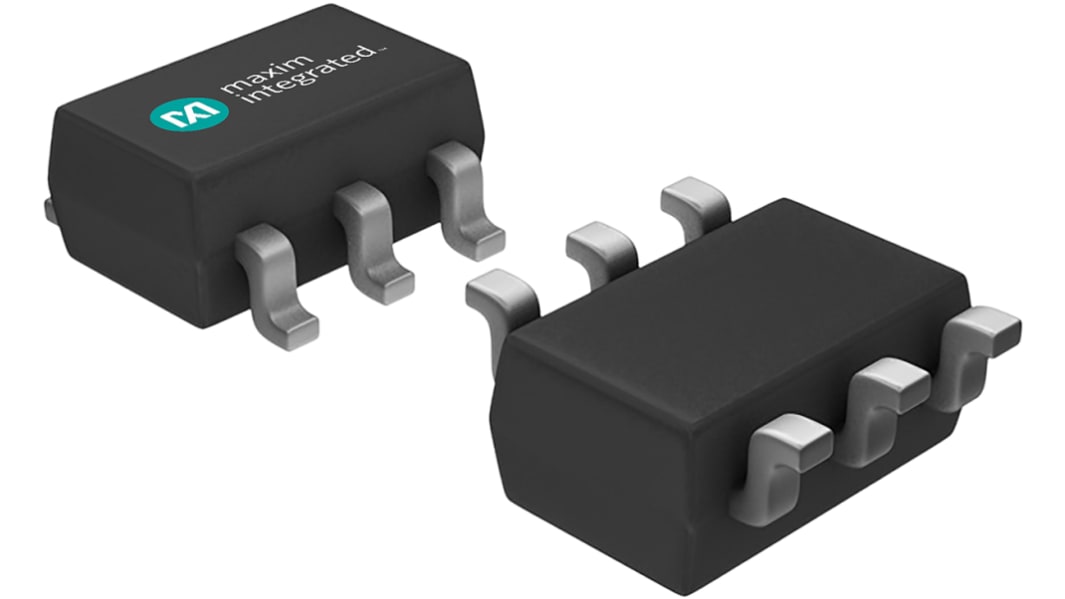

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 190-4913
- Mfr. Part No.:
- MAX2608EUT+T
- Brand:
- Maxim Integrated
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Product Type | Oscillator | |
| Output Frequency | 500MHz | |
| Pin Count | 6 | |
| Package Type | SOT-23 | |
| Output Level | -10 to -2.25 dBm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 1.3mm | |
| Standards/Approvals | No | |
| Series | MAX2605-MAX2609 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Product Type Oscillator | ||
Output Frequency 500MHz | ||
Pin Count 6 | ||
Package Type SOT-23 | ||
Output Level -10 to -2.25 dBm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 1.3mm | ||
Standards/Approvals No | ||
Series MAX2605-MAX2609 | ||
Automotive Standard No | ||
Small Size
Integrated Varactor for Tuning
Low Phase Noise
Wide Application Frequency Range
Differential or Single-Ended Outputs
Single +2.7V to +5.5V Supply
Ultra-Small SOT23-6 Package
On-Chip Temperature-Stable Bias
Low-Current Operation
Applications
2.4GHz ISM Band
902MHz to 928MHz ISM Band
Cellular and PCS Mobile Phones
General-Purpose IF Oscillators
GPS Receivers
Land Mobile Radios
