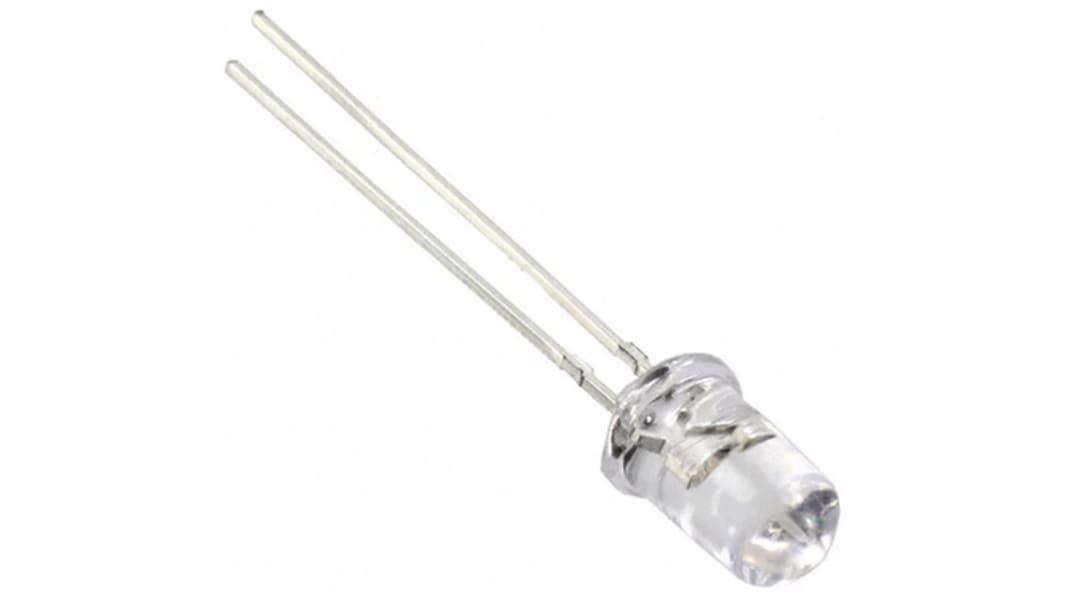

VAOL-5EUV0T4 VCC, VAOL Series UV LED, 405nm 15 °, 2-Pin Through Hole package

RS Stock No.:: 137-1420
Mfr. Part No.:: VAOL-5EUV0T4
Brand:: VCC

VAOL-5EUV0T4 VCC, VAOL Series UV LED, 405nm 15 °, 2-Pin Through Hole package

View all UV LEDs

590 In Global stock for delivery within 10 working day(s)

Added

View basket

Price (ex. GST) Each (In a Pack of 10)

$1.387

(exc. GST)

$1.526

(inc. GST)

Units	Per unit	Per Pack*
10 - 240	$1.387	$13.87
250 - 490	$1.351	$13.51
500 +	$1.331	$13.31
*price indicative

RS Stock No.:: 137-1420
Mfr. Part No.:: VAOL-5EUV0T4
Brand:: VCC

Technical data sheets

VAOL-5EUV0T4 5mm Ultra Violet LED Lamp 405nm

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

VCC Ultraviolet LED lamps, T1-3/4 5mm

A range of UV (Ultraviolet) T1-3/4 (5mm) LED lamps from VCC. The LEDs utilise InGaN material technology and feature water-clear transparent lenses. Typical application areas include disinfection and sterilisation, adhesive curing, leak detection and security authentication. A choice of peak UV wavelength and radiation angle is available:
• VAOL-5EUV0T4 405nm 15°
• VAOL-5EUV8T4 385nm 15°
• VAOL-5GUV0T4 405nm 30
• VAOL-5GUV8T4 385nm 30°

Warning

UV LEDs emit ultraviolet light which can be hazardous to the human eye. Do not look at operating UV LEDs without necessary eye protection.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Ultraviolet (UV) LEDs, VCC

Specifications

Attribute	Value
Number of LEDs	1
Peak Wavelength	405nm
Luminous Intensity	200 mcd
Package Type	5 mm
Viewing Angle	15 °
Number of Pins	2
LED Material	InGaN
Mounting Type	Through Hole
Diameter	5.9mm
Height	8.6mm
Series	VAOL
Dimensions	5.9 (Dia.) x 8.6mm
